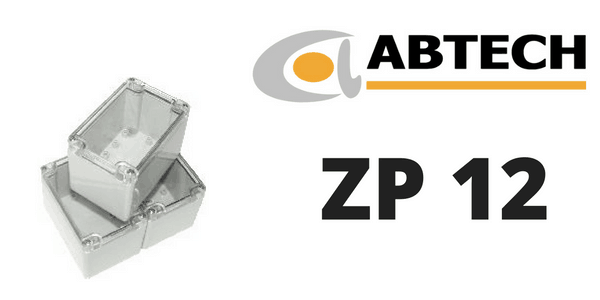

Abtech ZP12 Enclosures
Abtech ZP12Â polycarbonate electrical enclosures are moulded polycarbonate or ABSÂ enclosures for industrial non-hazardous areas.
Please quote Abtech ZP12 ABS for the grey moulded ABS version grey (RAL7035).
Polycarbonate ENCLOSURE
ENCLOSURE APPLICATION
Abtech ZP12 electrical enclosures are suitable for industrial areas.
Protection Degree IP65.
Abtech ZP12 Electrical Enclosures
JUNCTION BOX SPECIFICATION
| Part Reference | Enclosure Material | Width mm | Length mm | Depth mm | Weight g |
| Abtech ZP12 Enclosure | Polycarbonate (RAL7035) | 200 | 150 | 75 | 475 |
| Abtech ZP12 ABS Enclosure | ABS (RAL7035) | 200 | 150 | 75 | 440 |
Abtech ZP12 electrical enclosures, manufactured from polycarbonate/ABS can be populated with cable terminals including Weidmuller, Entrelec and Phoenix types.
CABLE GLAND ENTRY MATRIX
| Cable Gland Size | Side A – C | Side B- D |
| M16 | 5 | 3 |
| M20 | 4 | 2 |
| M25 | 3 | 2 |
| M32 | 0 | 0 |
| M40 | 0 | 0 |
TEMPERATURE RATING
Polycarbonate Versions: -40°C to +120°C
ABS Versions: -40°C to +65°C
ENCLOSURE POWER RATING
Not Applicable

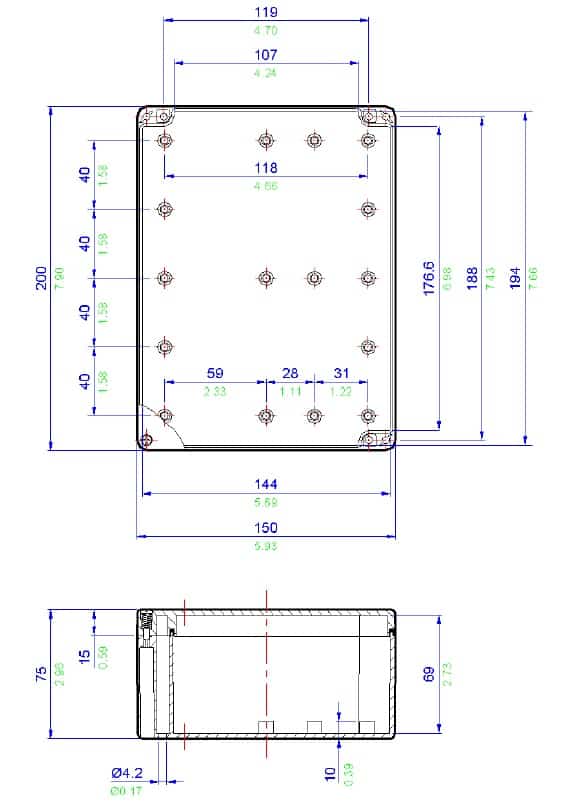

Note enclosure drawing is not to scale – blue dimensions are in mm, green dimensions are in decimal inches.
