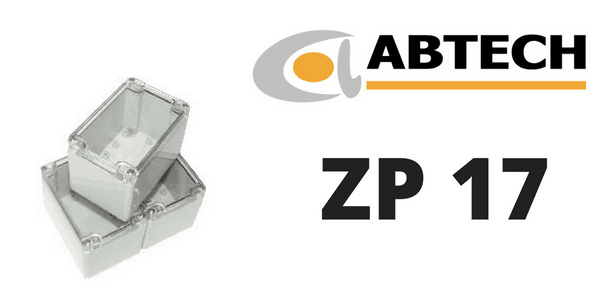

Abtech ZP17 Electrical Enclosures

Abtech ZP17 polycarbonate electrical enclosures are moulded polycarbonate or ABS enclosures for industrial areas.

Please quote Abtech ZP17 ABS for the grey moulded ABS version grey (RAL7035).

Polycarbonate ENCLOSURE

ENCLOSURE APPLICATION

Abtech ZP17 electrical enclosures are suitable for industrial areas.

Protection Degree IP65.

Abtech ZP17 Electrical Enclosures

JUNCTION BOX SPECIFICATION

Part Reference	Enclosure Material	Width mm	Length mm	Depth mm	Weight g
Abtech ZP17 Enclosure	Polycarbonate (RAL7035)	300	230	85	930
Abtech ZP17 ABS Enclosure	ABS (RAL7035)	300	230	85	875

Abtech ZP17 electrical enclosures, manufactured from polycarbonate/ABS can be populated with cable terminals including Weidmuller, Entrelec and Phoenix types.

CABLE GLAND ENTRY MATRIX

Cable Gland Size	Side A – C	Side B- D
M16	4	2
M20	2	1
M25	2	1
M32	1	1
M40	0	0

TEMPERATURE RATING

Polycarbonate Versions: -40°C to +120°C

ABS Versions: -40°C to +65°C

ENCLOSURE POWER RATING

Not Applicable

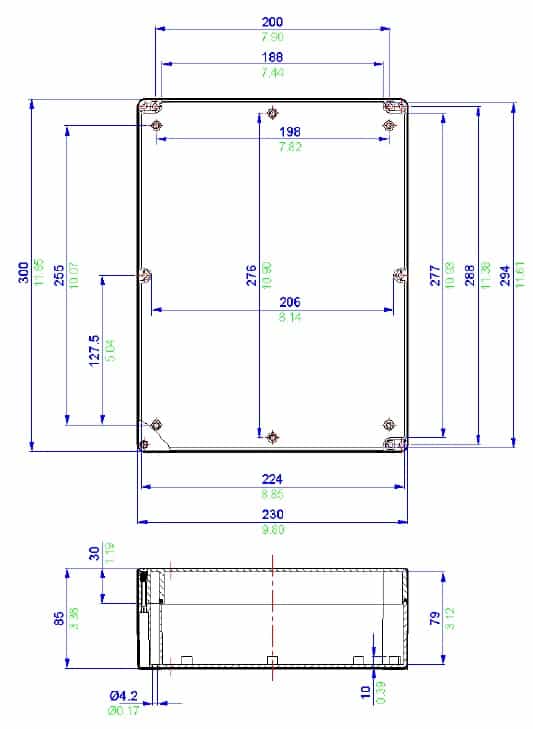

Note enclosure drawing is not to scale – blue dimensions are in mm, green dimensions are in decimal inches.
