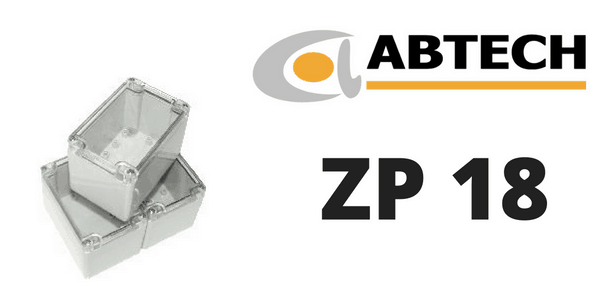

Abtech ZP18 Electrical Enclosures

Abtech ZP18 polycarbonate electrical enclosures are moulded polycarbonate or ABS enclosures for industrial non-hazardous areas.

Please quote Abtech ZP18 ABS for the grey moulded ABS version grey (RAL7035)

Polycarbonate ENCLOSURE

ENCLOSURE APPLICATION

Abtech ZP18 electrical enclosures are suitable for industrial areas.

Protection Degree IP65.

Abtech ZP18 Electrical Enclosures

JUNCTION BOX SPECIFICATION

Part Reference	Enclosure Material	Width mm	Length mm	Depth mm	Weight g
Abtech ZP18 Enclosure	Polycarbonate (RAL7035)	360	200	150	1850
Abtech ZP18 ABS Enclosure	ABS (RAL7035)	360	200	150	1625

Abtech ZP18 electrical enclosures, manufactured from polycarbonate/ABS can be populated with cable terminals including Weidmuller, Entrelec and Phoenix types.

CABLE GLAND ENTRY MATRIX

Cable Gland Size	Side A – C	Side B- D
M16	18	9
M20	12	6
M25	8	4
M32	4	2
M40	4	2

TEMPERATURE RATING

Polycarbonate Versions: -40°C to +120°C

ABS Versions: -40°C to +65°C

ENCLOSURE POWER RATING

Not Applicable

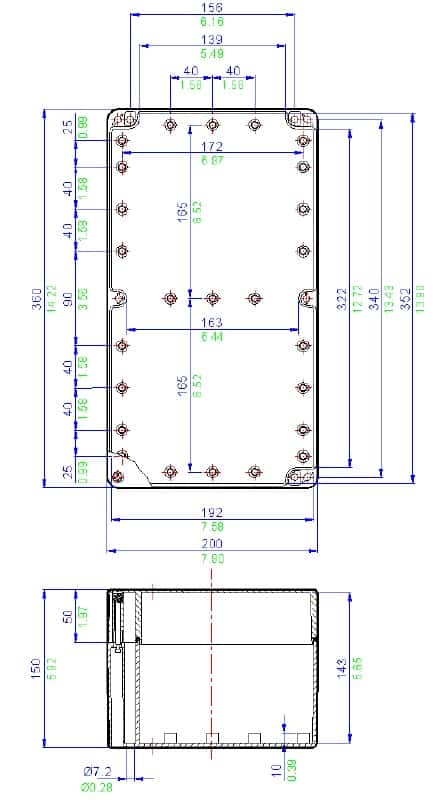

Note enclosure drawing is not to scale – blue dimensions are in mm, green dimensions are in decimal inches.
