ASCO 429 Panel Air Cylinders – ASCO Numatics Joucomatic

ASCO 429 Panel Air Cylinders

T&D – ASCO Numatics Authorised Distribution Channel.

ASCO Numatics Joucomatic Cylinders. Panel Cylinders.

ASCO 429 panel cylinders are specified to provide air or neutral gas flow control up to 7 bar using nickel plated brass body cylinders.

ASCO Numatics Joucomatic panel cylinders suit 6-16mm diameters available in both single or double acting designs.

ASCO Numatics Joucomatic products include an extensive range of solenoid valves, angle body piston valves, valve manifolds, cylinders, filters, regulators, lubricators and accessories.

ASCO Numatics Joucomatic 429 Panel Air Cylinders

FEATURES

    • compact panel cylinders with rear connection including double acting cylinder
    • threaded body and nuts enable adaptation on any support through a tapped or smooth hole
    • adjustable body axis opposite the cylinder support

Fluid : Air or neutral gas, filtered, lubricated or not

Operating Pressure : 3-7 bar (single-acting cylinder), 1.5-7 bar (double acting cylinder)

Cylinder Ambient Temperature : +5°C to +60°C

panel CYLINDER Construction

ASCO 429 Panel Air Cylinders :

  • Body – Nickeled brass cylinder
  • Nuts – Nickeled brass
  • Rod – Iron steel
  • Piston Seals – NBR (nitrile)

ASCO 429 Panel Air Cylinders – SELECTION TABLE

The following should enable the correct selection of ASCO 429 panel air cylinders – for technical support contact T&D Sales Team who are trained by ASCO Numatics to provide expert advise on pneumatic cylinders and actuators.

Ø (mm) Stroke (mm) ASCO Numatics Joucomatic Catalogue Number Reference Weight (kg) ASCO Numatics Joucomatic Catalogue Number Reference Weight (kg) Connection Ø
Single-acting cylinder (rod returned at rest) Double-acting cylinder
6 5 ASCO 2900024 E 6 S 5 0,010 ASCO 42900033 E 6 D 5 0,034 Hose connection 2,7×4
10 ASCO 2900025 E 6 S 10 0,015 ASCO 42900034 E 6 D 10 0,042
15 ASCO 42900026 E 6 S 15 0,018 ASCO 42900035 E 6 D 15 0,050
10 5 ASCO 42900027 E 10 S 5 0,030 ASCO 42900036 E 10 D 5 0,082 Hose connection 2,7×4
10 ASCO 42900028 E 10 S 10 0,037 ASCO 42900037 E 10 D 10 0,094
15 ASCO 42900029 E 10 S 15 0,042 ASCO 42900038 E 10 D 15 0,106
15 5 ASCO 42900030 E 16 S 5 0,086 ASCO 42900039 E 16 D 5 0,126 Hose connection 2,7×4
10 ASCO 42900031 E 16 S 10 0,093 ASCO 42900040 E 16 D 10 0,138
15 ASCO 42900032 E 16 S 15 0,100 ASCO 42900041 E 16 D 15 0,155

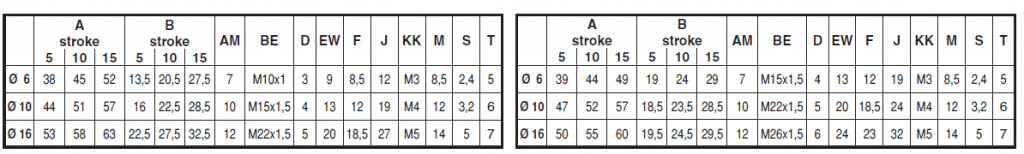

ASCO Numatics Joucomatic 429 Panel Air Cylinders – Dimensions

ASCO Numatics Joucomatic 429 Panel Air Cylinders

ASCO Numatics Joucomatic 429 Panel Air Cylinders

ASCO Numatics valves and cylinders control the flow of air, gas, water, oil and steam in commercial, industrial and hazardous areas.

ASCO Numatics Valves

Video playlist by ASCO, the world’s leading manufacturer of comprehensive fluid automation, flow control and pneumatics solutions including over 50,000 types of solenoid valves, cylinders and actuation products.

ASCO Fluid Automation

Oil & Gas SPECIALISTSHazardous Area Equipment Brands

T&D are major vendors of Hazardous Area Electrical, Process & Instrumentation to operators, EPC contractors and traders servicing the international oil and gas industry – our dedicated Exports Sales Team are committed to supporting you and your business.

If we do not stock it, we can source it – try us.
Hazardous Area Heating, Lighting, Signalling, Detecting, Powering - ATEX IECEx

âž¡ Did you know? ASCO founded in 1888 was acquired by Emerson in 1985. In 1988, Emerson purchased Joucomatic, Europe’s leading pneumatic valve manufacturer and added it to the ASCO family. In 2008, Emerson merged the North American operations of its ASCO and Numatics companies to form ASCO Numatics. In 2016, ASCO and Numatics global operations were unified under the ASCO brand.
