ASCO 429 Rotatable Cylinders 2, 3 & 4 Positions – ASCO Numatics Joucomatic

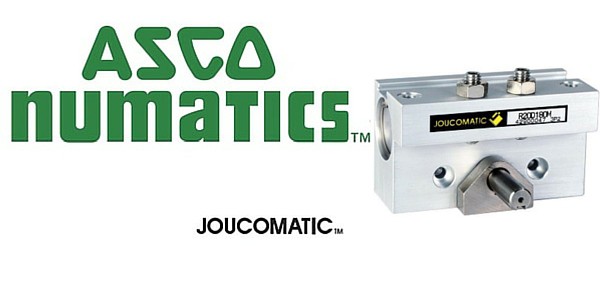

ASCO 429 Rotatable Cylinders 2, 3 4 Positions

T&D – ASCO Numatics Authorised Distribution Channel.

ASCO Numatics Joucomatic Cylinders. Rotatable Cylinders.

ASCO 429 rotatable cylinders are specified to provide air or neutral gas flow control up to 7 bar using light alloy body cylinders.

ASCO Numatics Joucomatic rotatable cylinders suit 16-18-22mm diameters available in a double acting design with 2, 3 & 4 positions

ASCO products include an extensive range of solenoid valves, angle body piston valves, valve manifolds, cylinders, filters, regulators, lubricators and accessories.

ASCO Numatics Joucomatic 429 Rotatable Cylinders FEATURES

  • Equipped for magnetic position detectors
  • 2, 3 and 4 positions
  • Mounting options
  • Cushioning -2 position models – Adjustable pneumatic cushioning 3 and 4 position models – No cushioning

Fluid : Air or neutral gas, filtered, lubricated or not

Operating Pressure : 2 to 7 bar

Cylinder Ambient Temperature : + 5°C, +60°C

ASCO 429 Rotatable Cylinders – SELECTION TABLE

The following should enable the correct selection of ASCO 429 rotatable cylinders – for technical support contact T&D Sales Team who are trained by ASCO Numatics to provide expert advise on pneumatic cylinders and actuators.

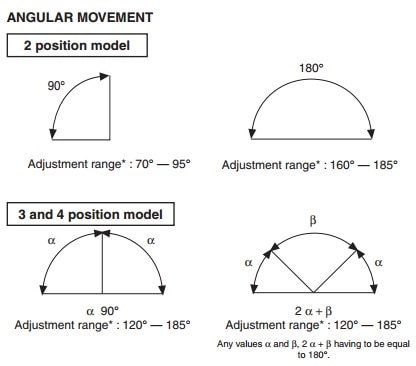

ASCO 429 Rotatable Cylinders 2, 3 & 4 Positions - Angular Movement

Position number Rotation angle Ø (mm) ASCO Numatics Joucomatic Catalogue Number Reference Connection Ø
2 90° 16 ASCO 42900052 RS16 A2. 90 /M M5
18 ASCO 42900056 RS18 A2. 90 /M
22 ASCO 42900060 RS22 A2. 90 /M
180° 16 ASCO 42900053 RS16 A2. 180 /M M5
18 ASCO 42900057 RS18 A2. 180 /M
22 ASCO 42900061 RS22 A2. 180 /M
3 90° + 90° 16 ASCO 42900054 RS16 NA3. 90+90 /M M5
18 ASCO 42900058 RS18 NA3. 90+90 /M
22 ASCO 42900062 RS22 NA3. 90+90 /M
4 α + β + α 16 ASCO 42900055❉ RS16 NA4. a + b /M❉ M5
18 ASCO 42900059❉ RS18 NA4. a + b /M M5 ❉
22 ASCO 42900063❉ RS22 NA4. a + b /M❉

❉ Define angles α + β (2 α + β = 180°).

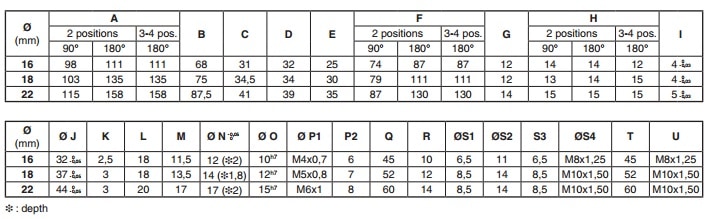

ASCO Numatics Joucomatic 429 Rotatable Cylinders – Dimensions

ASCO Numatics Joucomatic 429 Rotatable Cylinders 2, 3 & 4

ASCO Numatics Joucomatic 429 Rotatable Cylinders 2, 3 & 4
