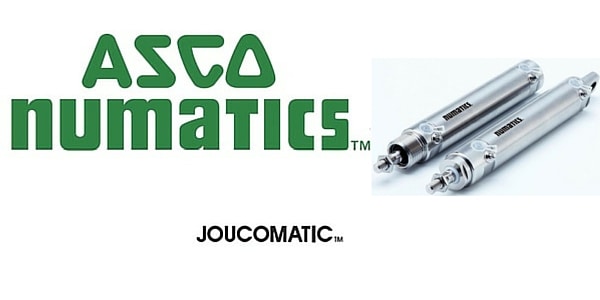

ASCO Numatics Joucomatic Cylinders. Anti-Corrosive Cylinders.

ASCO 431 anti-corrosive cylinders are specified to provide air or neutral gas flow control up to 10 bar using Stainless steel, AISI 304 barrel.

ASCO Numatics Joucomatic anti-corrosive cylinders suit 32-80mm diameters available double acting design with the option for a detachable rod scraper seal cartridge, detachable mountings and integral rear eye.

ASCO products include an extensive range of solenoid valves, angle body piston valves, valve manifolds, cylinders, filters, regulators, lubricators and accessories.

ASCO Numatics Joucomatic 431 Anti-Corrosive Cylinders FEATURES

• Stainless steel barrel and rod make the cylinders anti-corrosive
• Suitable for use in corrosive environments such as chemical, salty and humid atmospheres and in the food processing industry
• High resistance to lactic acid and bactericidal sprays
• Equipped for magnetic position detectors

Fluid : Air or neutral gas, filtered, lubricated or not

Operating Pressure : 10 bar, max. [1 bar =100 kPa]

Cylinder Ambient Temperature : -20°C to +80°C

Optimal max. speed : ≤ 1 m/s (for optimal service life)

Standard : ISO 6431

ANTI-CORROSIVE CYLINDER Construction

ASCO 431 Anti-Corrosive Cylinders :

• Barrel – Stainless steel, AISI 304
• Front and rear ends – Stainless steel, AISI 304
• Rod – Stainless steel, AISI 303, AISI 316 L
• Rod seal – FPM (fluoroelastomer)
• Piston – Light alloy – POM Acetal
• Piston seals – PUR (polyurethane)
• Scraper seal – FPM (fluoroelastomer), PTFE in option
• Cushioning – Adjustable pneumatic
• Dismounting – Dismountable cylinder
• Rod nut – Stainless steel, AISI 316 L
• Bearing – Composite material

ASCO 431 ANTi-corrosive Cylinders – Installation

The following should enable the correct selection of  installation of ASCO 431 anti-corrosive cylinders – for technical support contact T&D Sales Team who are trained by ASCO Numatics to provide expert advise on pneumatic cylinders and actuators.

• Pipe connections 1/4-3/8-1/2 (G*) have standard combination thread according to ISO 228/1 and ISO 7/1. Pipe connections G 1/8 have standard thread according to ISO 228/1 • Installation/maintenance instructions are included with each cylinder

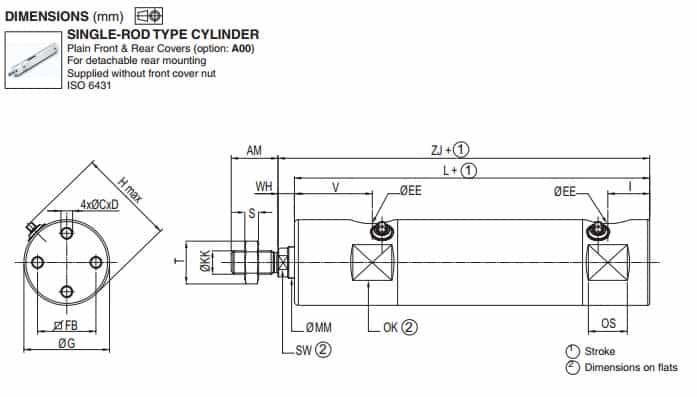

ASCO Numatics Joucomatic 431 anti-corrosive Cylinders – Dimensions
