ASCO 437 CNOMO – AFNOR Cylinders are specified to provide air or neutral gas flow control up to 10 bar with pneumatic cushioning.

ASCO Numatics Joucomatic CETOP cylinders suit 25-200mm diameters available in double acting designs compliant with CNOMO 06-07-02 – AFNOR.

ASCO products include an extensive range of solenoid valves, angle body piston valves, valve manifolds, cylinders, filters, regulators, lubricators and accessories.

ASCO 437 Numatics Joucomatic CNOMO – AFNOR  Cylinders FEATURES

• Double acting cylinder with pneumatic cushioning
• Compliant with: CNOMO 06-07-02, AFNOR NFE 49001 – NFE 49002 and NFE 49011 to NFE 49015
• Equipped for magnetic position detectors

Fluid : Air or neutral gas, filtered, lubricated or not

Operating Pressure : 10 bar max

Cylinder Ambient Temperature : -10°C to +70°C

Optimal max. speed : ≤ 1 m/s (for optimal service life)

Max. speed rate : 2 m/s

CNOMO – AFNOR CYLINDER Construction

ASCO 437 CNOMO-AFNOR Cylinders :

• Barrel – aluminium alloy
• Tie rods – Stainless steel (Ø32-100), paint steel (Ø 25 + Ø125-200)
• Front and rear ends – Zamak (Ø 25 mm) – light alloy (Ø 32 to 200 mm)
• Bearing – Self-lubricating metal
• Cushioning seals – NBR (nitrile)
• Cushioning – Pneumatic, adjustable from both sides with captive screw
• Rod – Hard chrome plated steel
• Rod nut – Galvanised steel
• Piston – Ø 25 to 200 mm light alloy fitted with an annular permanent magnet
• Piston seals – PUR (polyurethane)
• Rod seal – NBR (nitrile)

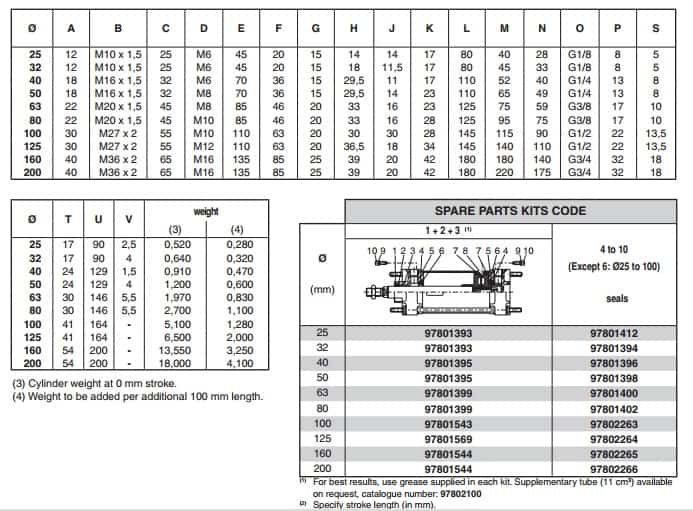

ASCO 437 CNOMO – AFNOR Cylinders With Tie Rods (ISO 6431) – SELECTION TABLE

The following should enable the correct selection of ASCO 437 CNOMO – AFNOR cylinders – for technical support contact T&D Sales Team who are trained by ASCO Numatics to provide expert advise on pneumatic cylinders and actuators.

(1) Thread connection: G = ISO 16030 (2) Code for non standard stroke, to be defined. ( Min. stroke: 5 mm)

***** For diameters 32mm, 40mm, 50mm, 63mm, 80mm, 100mm, 125mm, 160mm and 200mm please see the data sheet attached for specifications

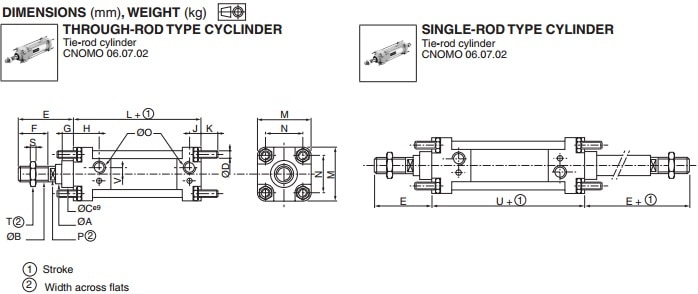

 ASCO Numatics Joucomatic 437 CNOMO – AFNOR Cylinders- Dimensions
