ASCO 441 Short-Stroke Air Cylinders

T&D – ASCO Numatics Authorised Distribution Channel.

ASCO Numatics Joucomatic Cylinders. Short-Stroke Air Cylinders.

ASCO 441 short-stroke air cylinders are specified to provide air or neutral gas flow control up to 10 bar using light alloy body cylinders.

ASCO Numatics Joucomatic short-stroke air cylinders suit 8-100mm diameters available in both single or double acting designs with a single or double rod.

ASCO products include an extensive range of solenoid valves, angle body piston valves, valve manifolds, cylinders, filters, regulators, lubricators and accessories.

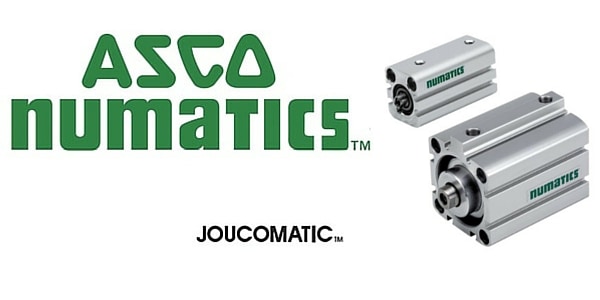

ASCO Numatics Joucomatic 441 Short-storke air Cylinders

FEATURES

    • suitable for magnetic position detectors
    • single and double acting design with single/double rod (anti rotation device)

Fluid : Air or neutral gas, filtered, lubricated or not

Operating Pressure : 10 bar max

Cylinder Ambient Temperature : -20°C to +70°C

short-storke Air CYLINDER Construction

ASCO 441 Short-Storke Air Cylinders :

  • Body – Light alloy
  • Piston rod – Stainless steel (Ø8 – 25 mm) Hard chrome plated steel (Ø32 – 100 mm)
  • Rod end – Tapped
  • Parti interne – POM (polyacetal) or light alloy
  • Piston seals – PUR (polyurethane)
  • Bearing – Autolubrificante
  • Front, rear or side mounting – With screws (not supplied) or flange (see mounting section)

ASCO 441 short-storke Air Cylinders – SELECTION TABLE

The following should enable the correct selection of ASCO 441 short-storke cylinders – for technical support contact T&D Sales Team who are trained by ASCO Numatics to provide expert advise on pneumatic cylinders and actuators.

Ø (mm) connect. Ø 4 5 10 15 20 25 30 40 50 60 80 100 max stroke Rod antirotation device max. stroke
8 M5 – SD SD D D D 30 –
10 – SD SD D D D 30 –
12 – SD SD D D D D 40 –
16 – SD SD SD SD SD D D 40 –
20 – SD SD SD SD SD D D D 60 60
25 SD SD SD SD SD D D D 60 60
32 G1/8 SD SD SD SD SD D D D D D 100 100
40 SD SD SD SD SD D D D D D D 120 100
50 SD SD SD SD SD D D D D D D 150 100
63 SD SD SD SD SD D D D D D D 150 100
80 SD SD SD SD SD D D D D D D 150 100
100 SD SD SD SD SD D D D D D D 150 100

Other strokes on request. / Min. stroke: 5 mm D = Double acting only / SD = Single & Double acting

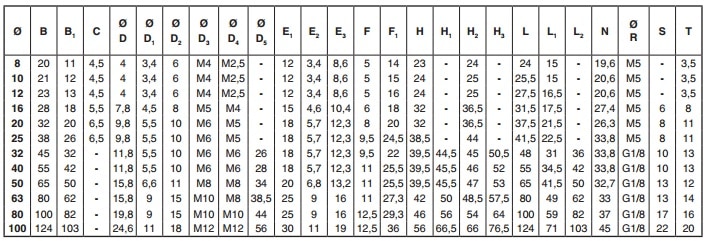

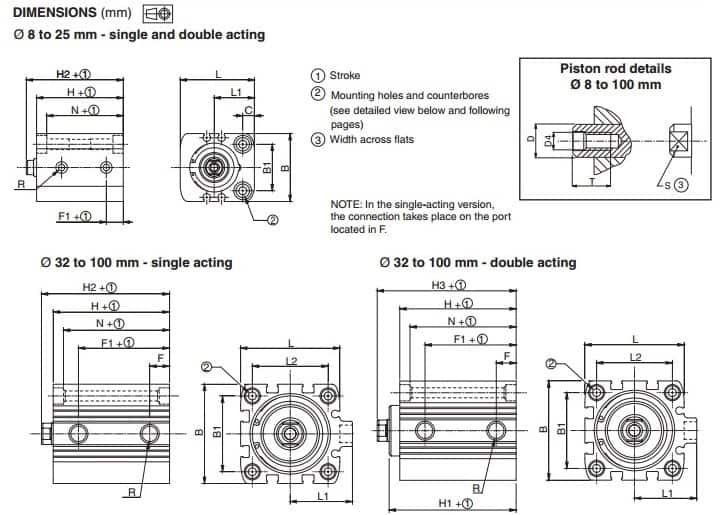

ASCO Numatics Joucomatic 441 SHORT-STORKE Air Cylinders – Dimensions
