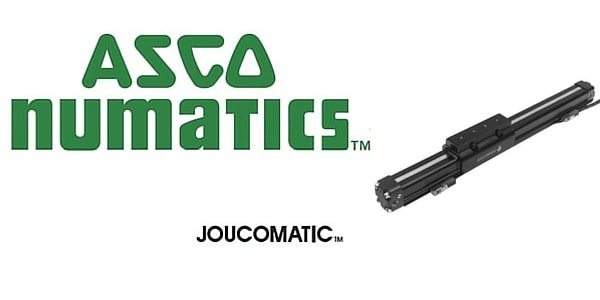

ASCO Numatics Joucomatic Cylinders. Rodless Band Cylinders.
ASCO 446 rodless band cylinders are specified to provide air or neutral gas flow control up to 8 bar using anodized aluminum alloy body cylinders.
ASCO Numatics Joucomatic rodless band cylinders suit 25-63mm diameters available in double acting design with carrier bracket.
ASCO products include an extensive range of solenoid valves, angle body piston valves, valve manifolds, cylinders, filters, regulators, lubricators and accessories.
ASCO Numatics Joucomatic 446 RODLESS Band Cylinders FEATURES
- Tube support brackets available
- Equipped or not for magnetic detectors
Fluid : Air or neutral gas, filtered, lubricated or not
Operating Pressure : 8 bar max
Cylinder Ambient Temperature : -10°C to +65°C
Maximum velocity : 2 m/sec
Rodless CYLINDER Construction
ASCO 446 Rodless Band Cylinders :
- Cylinder tube – Anodized aluminum alloy
- Ends – Anodized light alloy
- Carrier bracket – Anodized aluminum alloy
- Piston – Polyamide/light alloy
- Piston seals – Nitrile (NBR)
- Piston bracket – High resistance stamped steel
- Bandes – Stainless steel with elastomer strips
- Magnet – Placed outside the cylinder, on the carrier
- Guide rods – Self-lubricating NYLATRON
- Cushioning – with air, adjustable
ASCO 446 Rodless Band Cylinders – SELECTION TABLE
The following should enable the correct selection of ASCO 446 rodless band cylinders – for technical support contact T&D Sales Team who are trained by ASCO Numatics to provide expert advise on pneumatic cylinders and actuators.
| Ø Cylinder (mm) | CYLINDER NON EQUIPPED FOR DETECTOR | CYLINDER EQUIPPED FOR DETECTOR | Ø Connection (4) | |||
| ASCO Numatics Joucomatic Catalogue Number | Reference | ASCO Numatics Joucomatic Catalogue Number with Reed switch CODE (3) | ASCO Numatics Joucomatic Catalogue Number with Hall effect CODE (3) | REFERENCE | ||
| 25 | ASCO 44650001(1) | STB 25 A (1) | ASCO 44650006(1) | ASCO 44650011(1) | STB 25 A (1) – DM (A/H)(2) | G 1/8 |
| 32 | ASCO 44650002(1) | STB 32 A (1) 4 | ASCO 44650007(1) | ASCO 44650012(1) | STB 32 A (1) – DM (A/H)(2) | G 1/4 |
| 40 | ASCO 44650003(1) | STB 40 A (1) | ASCO 44650008(1) | ASCO 44650013(1) | STB 40 A (1) – DM (A/H)(2) | G 1/4 |
| 50 | ASCO 44650004(1) | STB 50 A (1) | ASCO 44650009(1) | ASCO 44650014(1) | STB 50 A (1) – DM (A/H)(2) | G 3/8 |
| 63 | ASCO 44650005(1) | STB 63 A (1) | ASCO 44650010(1) | ASCO 44650015(1) | STB 63 A (1) – DM (A/H)(2) | G 3/8 |
❉ Please specify stroke length (in mm)

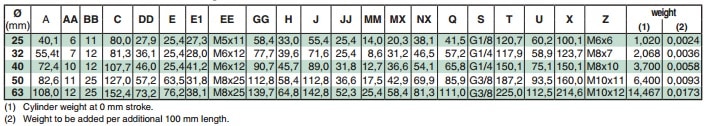

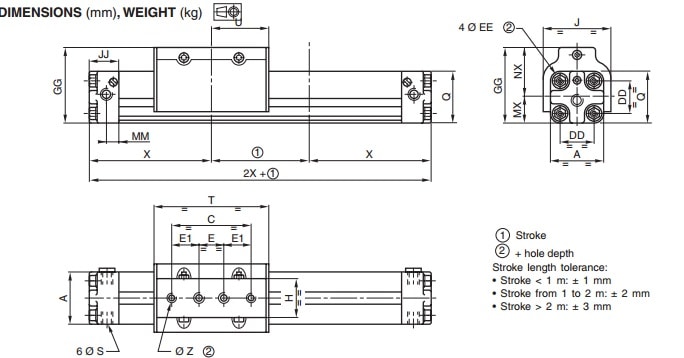

ASCO Numatics Joucomatic 446 rodless Band Cylinders – Dimensions
