ASCO 448 Rodless Band Cylinders Without Unguided Carrier

T&D – ASCO Numatics Authorised Distribution Channel.

ASCO Numatics Joucomatic Cylinders. Rodless Band Cylinders.

ASCO 448 rodless band cylinders are specified to provide air or neutral gas flow control up to 8 bar using anodized aluminum tube.

ASCO Numatics Joucomatic rodless band cylinders suit 16-80mm diameters available in double acting design with unguided carrier equipped for magnetic detectors.

ASCO 448 cylinders are also available as rodless band cylinders with following options :

  • Carrier and plain bearing guide – Ø16 to 80 mm
  • Carrier and plain bearing guide with passive brake – Ø 25 to 80 mm
  • Carrier and plain bearing guide with active brake – Ø 25 to 50 mm
  • Carrier guided with rollers – Ø 25 to 50 mm
  • Carrier guided with rollers with passive brake – Ø 25 to 50 mm
  • Carrier guided with rollers with active brake – Ø 25 to 50 mm
  • Magnetic position detector, reed switch
  • Magnetic position detector, magneto-inductive type

ASCO products include an extensive range of solenoid valves, angle body piston valves, valve manifolds, cylinders, filters, regulators, lubricators and accessories.

ASCO Numatics Joucomatic 448 RODLESS Band Cylinders FEATURES

    • Equipped for magnetic position detectors
    • Tube support brackets available
    • Adaptor profile to enable valves or peripheral components to be fi tted to the cylinder
    • Shock absorbers available

Fluid : air or neutral gas, filtered, unlubricated

Operating Pressure : 8 bar max

Cylinder Ambient Temperature : -10°C to +80°C

Storke min. : 5 mm (without detectors) : 100 mm (with detectors)

Maximum velocity : 0.2 to 4 m/sec

Rodless CYLINDER Construction

ASCO 448 Rodless Band Cylinders :

  • Cylinder tube – Anodised aluminium
  • Ends – Anodised aluminium
  • Carrier (piston) – Anodised aluminium
  • Piston seals – : Nitrile (NBR)
  • Piston brackets – High resistance stamped steel
  • Bands – Stainless steel
  • Magnet – Placed inside the piston
  • Covers, wipers – Plastic
  • Screws – Galvanised steel
  • Cushioning – with air, adjustable

ASCO 448 Rodless Band Cylinders – SELECTION TABLE

The following should enable the correct selection of ASCO 448 rodless band cylinders – for technical support contact T&D Sales Team who are trained by ASCO Numatics to provide expert advise on pneumatic cylinders and actuators.

Ø Cylinder (mm) CYLINDER NON EQUIPPED FOR DETECTOR Max. allowable stroke (mm) Pipe size Cushioning length (mm)
ASCO Numatics Joucomatic Catalogue Number  Reference
16 ASCO 44850001 (1) STBN 16 A – 0(3) – (1) – DM 6000 M5 11
25 ASCO 44850002 (1) STBN 25 A – 0(3) – (1) – DM 6000 G 1/8 17
32 ASCO 44850003 (1) STBN 32 A – 0(3) – (1) – DM 6000 G 1/4 20
40 ASCO 44850004 (1) STBN 40 A – 0(3) – (1) – DM 6000 G 1/4 27
50 ASCO 44850005 (1) STBN 50 A – 0(3) – (1) – DM 6000 G 1/4 30
63 ASCO 44850006 (1)  STBN 63 A – 0(3) – (1) – DM 6000 G 3/8 32
80 ASCO 44850006 (1)  STBN 80 A – 0(3) – (1) – DM 6000 G 1/2 39

For other strokes, consult us. (1) Specify stroke (in mm) (2) Position detectors are to be ordered separately (see page 31) (3) 1 for slow speed option

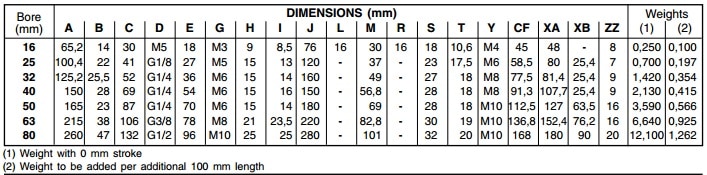

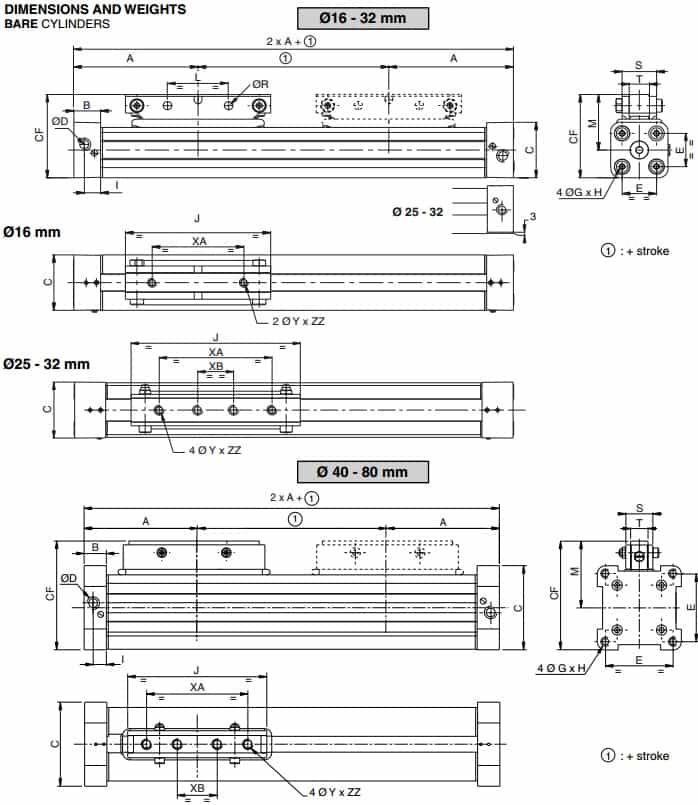

ASCO Numatics Joucomatic 448 rodless Band Cylinders – Dimensions
SCO Numatics Joucomatic 448 Rodless Band CylindersASCO Numatics Joucomatic 448 Rodless Band Cylinders
