ASCO Numatics Joucomatic Cylinders. Compact Cylinders.

ASCO 449 compact cylinders are specified to provide air or neutral gas flow control up to 10 bar using hard anodised aluminium alloy body cylinders.

ASCO Numatics Joucomatic compact cylinders suit 20-100mm diameters available in single acting design or through rod.

ASCO products include an extensive range of solenoid valves, angle body piston valves, valve manifolds, cylinders, filters, regulators, lubricators and accessories.

ASCO Numatics Joucomatic 449 compact Cylinders

FEATURES

• single acting design with ISO 21287
• suitable for magnetic position detectors

Fluid : Air or neutral gas, filtered, lubricated or not

Operating Pressure : 10 bar, max. [1 bar =100 kPa]

Cylinder Ambient Temperature : -20°C to +70°C (for higher temperature, see HTP option)

Max. speed rate : 0,5 m/s

Standards : 449 series comply with ISO 21287. Diameters 32-100 are also compatible with ISO 15552 (distances between the centres of the mounting holes)

Minimum pressure to compress the spring (single acting version) : Ø20-50 = 1 bar Ø63-100 = 0,65 bar

The return of the piston rod must be without load (single acting version).

Compact CYLINDER Construction

ASCO 449 Compact Cylinders :

• Barrel – Hard anodized aluminium alloy
• Front and rear ends – Aluminium alloy
• Bearing – Self-lubricating metal
• Rod – Ø 20-25: stainless steel, Ø 32-100: Hard chrome plated steel
• Rod end – Tapped or threaded
• Piston – POM (polyacetal) or light alloy
• Piston seals – PUR (polyurethane)

ASCO 449 Compact Cylinders – SELECTION TABLE

The following should enable the correct selection of ASCO 449 compact cylinders – for technical support contact T&D Sales Team who are trained by ASCO Numatics to provide expert advise on pneumatic cylinders and actuators.

(5) Other strokes on request. / Min. stroke: 5 mm D = Double acting only / SD = Single & Double acting

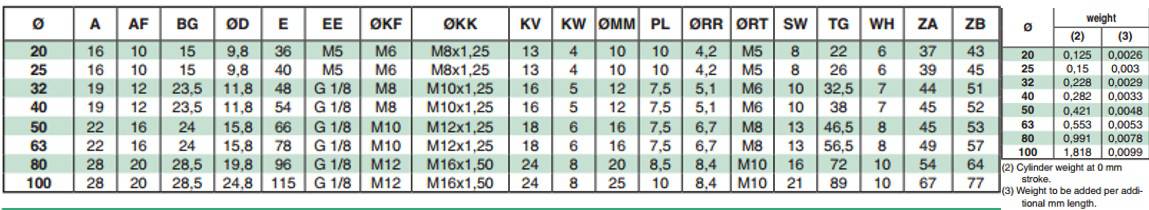

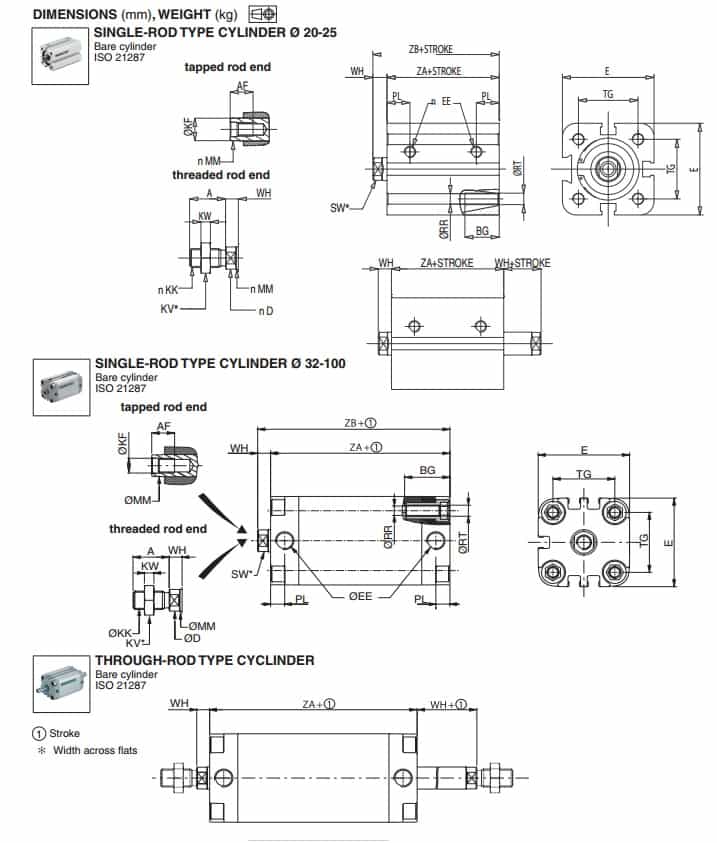

ASCO Numatics Joucomatic 449 Compact Cylinders – Dimensions

ISO21287 – ASCO 449

ASCO 449 compact cylinders are compliant with ISO 21287 for pneumatic fluid power compact with measuring bores from 20 to 100mm, maximum operating pressure of up to 10 bar.
