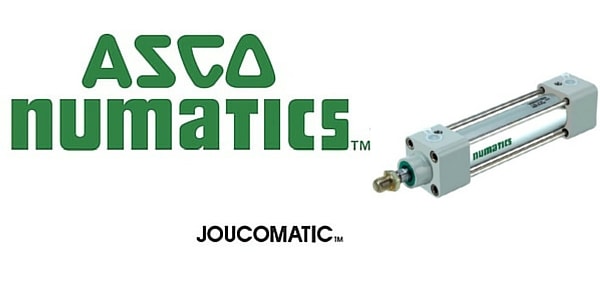

ASCO Numatics Joucomatic Cylinders. ISO 15552 Cylinders.
ASCO 450 ISO 15552 cylinders are specified to provide air or neutral gas flow control up to 10 bar using hard anodised aluminium alloy body cylinders.
ASCO Numatics Joucomatic ISO 15552 cylinders suit 32-200mm diameters available in double acting design.
ASCO products include an extensive range of solenoid valves, angle body piston valves, valve manifolds, cylinders, filters, regulators, lubricators and accessories.
ASCO Numatics Joucomatic 450 ISO 15552 Cylinders
FEATURES
- accurate rod guiding and cushion length
- light, sturdy and esthetic design – tie-rod construction
- easy fitting with large pnuematic cushioning
- suitable for magnetic position detectors
- ATEX versions available
Fluid : Air or neutral gas, filtered, lubricated or not
Operating Pressure : 10 bar, max. [1 bar =100 kPa]
Cylinder Ambient Temperature : -20°C to +70°C (for higher temperature, see HTP option)
Optimal max. speed : ≤ 1 m/s (for optimal service life)
Max. speed rate : 2 m/s (for higher and lower speed rate, see LFS option)
Standards : ISO 15552
ISO 15552 CYLINDER Construction
ASCO 450 ISO 15552 Cylinders :
- Barrel – Hard anodized aluminium alloy. Positive groove for adapting a magnetic sensor
- Tie rods – Stainless steel (Ø32-100), steel (Ø 125-200)
- Front and rear ends – Aluminium alloy
- Bearing – Self-lubricating metal
- Cushioning seals – PUR (polyurethane)
- Cushioning – Pneumatic, adjustable from both sides with captive screw
- Rod – Hard chromed steel
- Rod nut – Galvanised stee
- Piston – Ø 32 to 80 mm POM (polyacetal) Ø 100 to 200 mm light alloy fitted with an annular permanent magnet
- Piston seals – PUR (polyurethane)

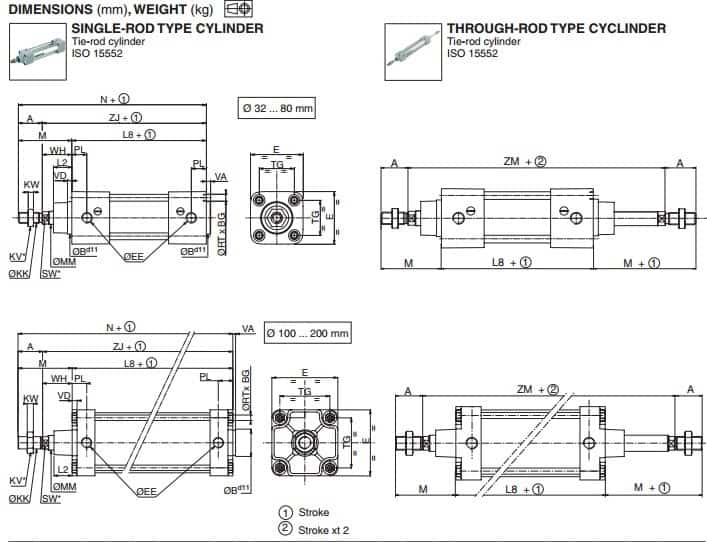

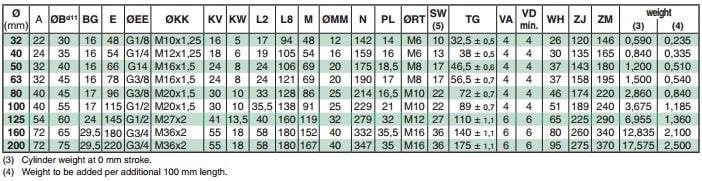

ASCO Numatics Joucomatic 450 ISO 15552 Cylinders – Dimensions
ISO 15552 – ASCO 450
ASCO 450 cylinders are compliant with ISO1 5552 for pneumatic fluid power compact with measuring bores from 32 to 320mm, maximum operating pressure of up to 10 bar and with basic, mounting and accessories dimensions.
