ASCO Numatics Joucomatic Cylinders. ISO 15552 Cylinders.
ASCO 453 ISO 15552 cylinders are specified to provide air or neutral gas flow control up to 10 bar using hard anodised aluminium alloy body cylinders.
ASCO Numatics Joucomatic ISO 15552 cylinders suit 32-100mm diameters available in double acting design with pneumatic cushioning.
ASCO products include an extensive range of solenoid valves, angle body piston valves, valve manifolds, cylinders, filters, regulators, lubricators and accessories.

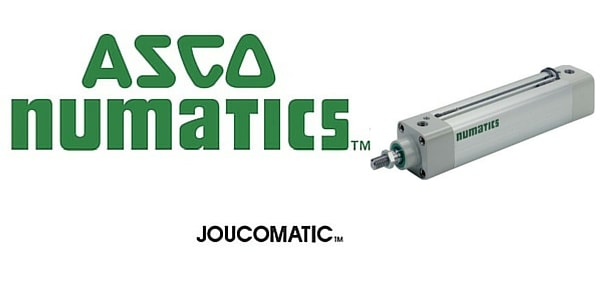

ASCO Numatics Joucomatic 453 ISO 15552 Cylinders
FEATURES
- special covers – anti-corrosion treatment, suitable for aggresive cleaning with flexible configuration
- based on 453 technocology ISO 15552 suitable for food industry applications
- rod seals configuration – rod seals in special PUR, FPM, or FPM + PTFE
- suitable for magnetic position detectors
- special tube profile – easy to clean as the 453 is a square shape with rounded edges
- ATEX version available
Fluid : Air or neutral gas, filtered, lubricated or not
Operating Pressure : 10 bar, max. [1 bar =100 kPa]
Cylinder Ambient Temperature : -20°C to +70°C
Optimal max. speed : ≤ 1 m/s (for optimal service life)
Max. speed rate : 2 m/s (for higher and lower speed rate, see LFS option)
Standards : ISO 15552
ISO 15552 CYLINDER Construction
ASCO 453 ISO 15552 Cylinders :
- Barrel – Hard anodized aluminium alloy. Positive groove for adapting a magnetic sensor
- Front and rear ends – Aluminium alloy with anti-corrossion treatment
- Bearing – Self-lubricating metal
- Cushioning seals – PUR (polyurethane)
- Cushioning – Pneumatic, adjustable from both sides with captive screw
- Rod – Stainless steel, AISI 316L stainless steel, hard chromed
- Rod nut – Stainless steel
- Piston – Ø 32 to 80 mm POM (polyacetal) Ø 100 mm light alloy fitted with an annular permanent magnet
- Piston seals – PUR (polyurethane)
- Grease – Grease for food & pharmaceutical applications, ISO 21469 FDA 21 CFR § 178.3570

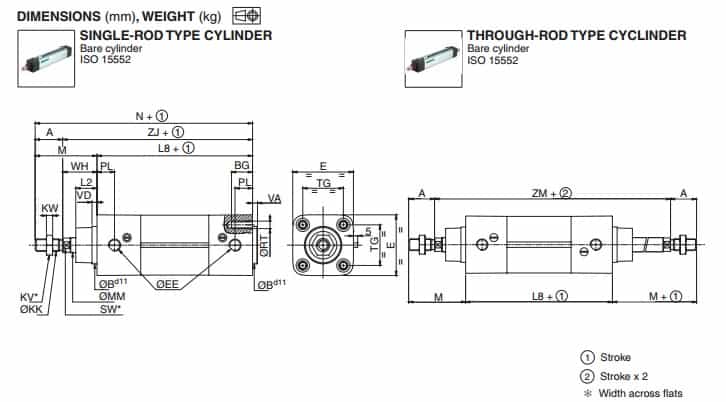

ASCO Numatics Joucomatic 453 ISO 15552 Cylinders – Dimensions
ISO 15552 – ASCO 453
ASCO 453 cylinders are compliant with ISO1 5552 for pneumatic fluid power compact with measuring bores from 32 to 320mm, maximum operating pressure of up to 10 bar and with basic, mounting and accessories dimensions.
