ASCO 492 (450-453) Static Rod Locking Device For ISO 15552 Cylinders – ASCO Numatics Joucomatic

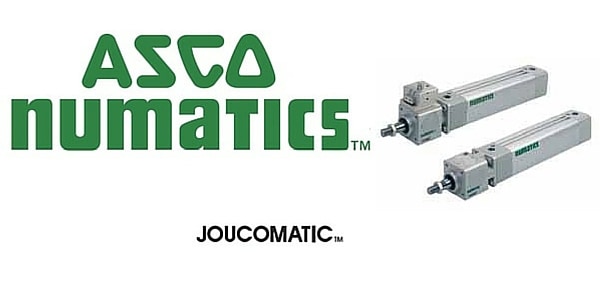

ASCO 492 (450-453) Static Rod Locking Device For ISO 15552 Cylinder

T&D – ASCO Numatics Authorised Distribution Channel.

ASCO Numatics Joucomatic Cylinders. ISO 15552 Cylinders.

ASCO 492 (450-453) Static Rod Locking Device are designed to hold the rod of the ISO 15552 cylinder under load in the extended or retracted position in the event of air pressure or power failure during machine operation. The rod-locking device acts mechanically on the cylinder rod. It is disengaged when pressure is applied.

ASCO Numatics Joucomatic static rod locking device suit 40-100mm diameters available in double acting designs.

ASCO products include an extensive range of solenoid valves, angle body piston valves, valve manifolds, cylinders, filters, regulators, lubricators and accessories.

ASCO 492 (450-453) Static Rod Locking Device For ISO 15552 Cylinders FEATURES

    • Manual operator – fast operation, easy to access and flexible options for integration rod-lock pilot control, cylinder startup interlock system and detection (magnetic or electro-mechanical) of the position of the manual operator
    • Compact sized same as standard cylinder
    • Mounting options – mounted to certain cylinders
    • Bi-directional action

Pilot pressure : 3 to 6 bar

Ambient temperature : -5°C to +70°C

Pneumatic connection : G1/8 (Ø32 – 63) – G1/4 (Ø 80 – 100)

Standards : According to CNOMO RU-P/10 recommendation

STATIC ROD LOCKING DEVICE Construction

ASCO 492 (450-453) Static Rod Locking Device :

  • Body – Anodized aluminium
  • Piston – Acetal resin
  • Piston Seals – NBR (nitrile)
  • Operator body (if any) – Anodized aluminium
  • Other parts – Same as standard cylinders

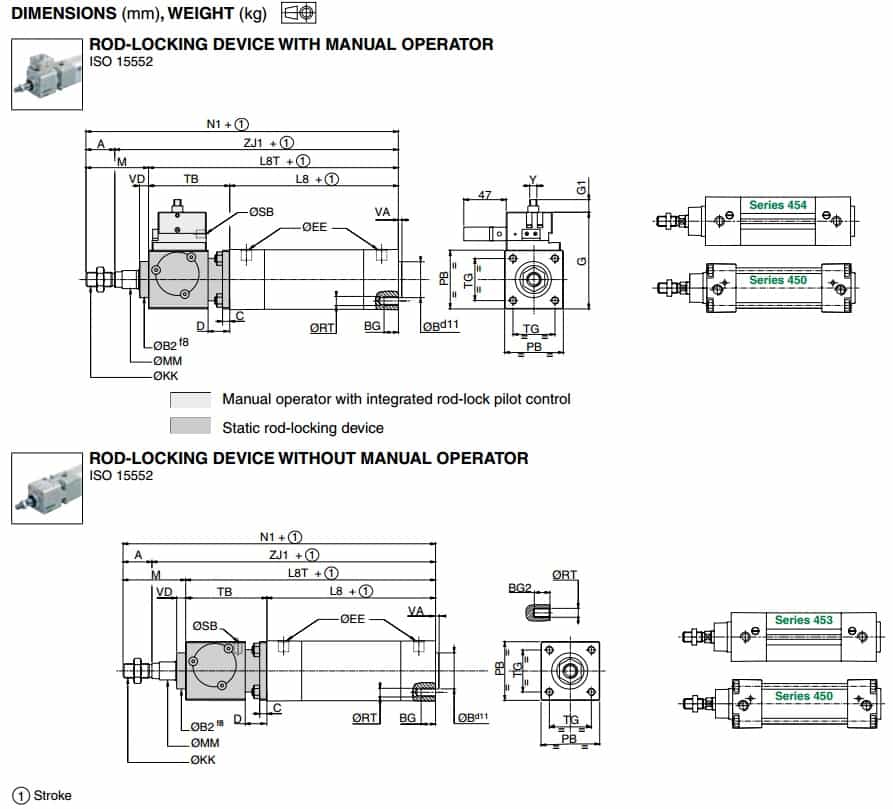

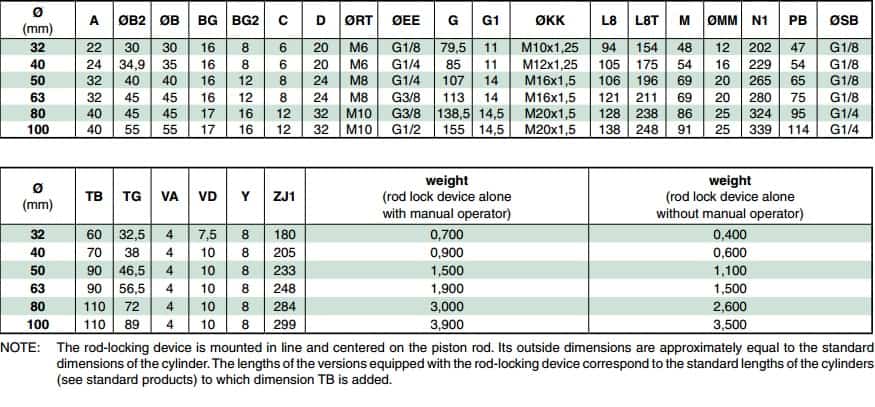

ASCO Numatics Joucomatic 492 (450-453) Static Rod Locking Device – Dimensions

ASCO 492 (450-453) Static Rod Locking DeviceASCO 492 (450-453) Static Rod Locking Device

ISO 15552 – ASCO 492 (450-453)

ISO

ASCO 492 (450-453) static rod locking device is compliant with ISO1 5552 for pneumatic fluid power compact with measuring bores from 32 to 320mm, maximum operating pressure of up to 10 bar and with basic, mounting and accessories dimensions.
