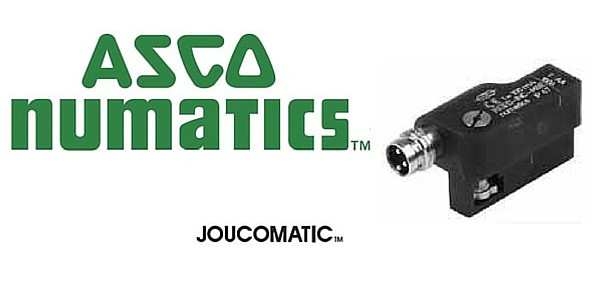

ASCO 494 miniature T shaped magnetic detectors are universal detectors for any of the ASCO range of air cylinders and actuators.
A permanent magnet which is mounted on the piston of the air cylinder activates the reed switch of the non-contact magnetic position detector fastened on the outside of the non-magnetic cylinder barrel.
ASCO Numatics Joucomatic 494 cylinders are available as magnetic detectors for air cylinders with following options :
- Miniature “T” shaped detectors for air cylinders with grooves- 3 wires – magneto-resistive type
- Miniature “T” shaped detectors mounting kits for profiled, tie rods and round cylinders
- Miniature “C” shaped detectors for air cylinders series 441 with grooves – magneto-resistive type (MR)
ASCO products include an extensive range of solenoid valves, angle body piston valves, valve manifolds, cylinders, filters, regulators, lubricators and accessories.
ASCO 494 Miniature T Shaped Magnetic Detectors FEATURES
| MAX. SWITCHING POWER max. | DC = 5 W – AC = 5 VA |
| SWITCHING VOLTAGE | see below |
| MAX. SWITCHING CURRENT | 100 mA |
| SHORT-CIRCUIT PROTECTION | no |
| REVERSE POLARITE PROTECTION | yes (without LED function) |
| OVERLOAD PROTECTION | no |
| VOLTAGE DROP (EN 60947-5-2) | < 5 volt |
| BREAKDOWN VOLTAGE | 230 V DC |
| CONTACT RESISTANCE | 0,2 ohm max. |
| INSULATION RESISTANCE | 108 ohms at 100 V |
| SENSITIVITY | 2,1 mTesla (21 Gauss) |
| RESPONSE TIME | 0,1 ms opening – 0,6 ms closing |
| REPEATABILITY | < ± 0,2 mm |
| WORKING TEMPERATURE | – 25°C , + 70°C |
| HOUSING | PA + FG overmolding |
| CABLE | PUR, resistant to cutting oils |
| DEGREE OF PROTECTION (CEI 60529) | IP 67 |
| PROTECTION CLASS | cable outlet: class II, M8 and M12 connection: class III |
| APPROVAL | CE |
| SIGNAL INDICATION | yellow diode (LED) which lights up when the contact is established |
ASCO 494 MINIATURE T SHAPED MAGNETIC DETECTORS – SELECTION TABLE
The following should enable the correct selection of ASCO 494 miniature t shaped magnetic detectors – for technical support contact T&D Sales Team who are trained by ASCO Numatics to provide expert advise on pneumatic cylinders and actuators.
| Voltage | 5 to 120 Volt AC/DC | 5 to 50 Volt CA 5 to 60 Volt CC | ||||
| Connection | PUR lead, 2 or 5 m long, 2 wires 0.14 mm2 , stripped ends | 3 pin screw-type male connector Ø M8 | 0.3 m PUR lead + 3-pin plug-in male connector and Ø M8 | 0.3 m PUR lead + 3-pin screw-type male connector, Ø M12 | ||
| Connection pins | ||||||
| 1-4 | 1-4 | 1-3 | ||||
| 2 m | 5 m | – | 0.3m | 0.3m | 0.3m | |
| Weight (g) | 22 | 50 | 5 | 7 | 7 | 16 |
| Compatible ASCO Numatics Joucomatic Cylinders Series: | STANDARD ASCO NUMATICS JOUCOMATIC CATALOGUE NUMBER detector detector supplied with cable holding clip (versions with lead outlet only) and adjustment position stop (all versions) | |||||
| 449 (1) | ASCO P494A0021300A00 | ASCO P494A0021100A00 | ASCO P494A0021400A00 | ASCO P494A0021500A00 | ASCO P494A0021600A00 (3) | ASCO P494A0021700A00 |
| 453 (voir P291/5-6) | ||||||
| 435 – 438 (2) | ||||||
| 441 – 447 (P2L-P2B) | ||||||
| 450 – 454 | ||||||
| 437 (PCN) | ||||||
