ASCO 445 rodless cylinders are specified to provide air or neutral gas flow control up to 7 bar using stainless steel body cylinders.
ASCO Numatics Joucomatic rodless cylinders suit 8-40mm diameters available in double acting design linear drive with non-guided carrier.
ASCO products include an extensive range of solenoid valves, angle body piston valves, valve manifolds, cylinders, filters, regulators, lubricators and accessories.
ASCO Numatics Joucomatic 445 RODLESS Cylinders FEATURES
- Equipped for magnetic position detectors
- Linear drive with magnetic coupling with non-guided carrier
- Adjustable mountings
Fluid : Air or neutral gas, filtered, lubricated or not
Operating Pressure : 7 bar maxi
Cylinder Ambient Temperature : 0°C, + 60°C
Max. allowable load : The maximum allowable load is defi ned by its. positioning and by the cylinder specifications
Max. speed of carrier : 0.4 m/s (this upper limit avoids magnetic breakaway)
Cushioning : Elastic cushioning with nitrile (NBR) rings
Rodless CYLINDER Construction
ASCO 445 Rodless Air Cylinders :
- Cylinder tube – Stainless steel
- Front and rear covers – Anodized light alloy
- Carrier – Light alloy with nitrile wear rings and seals.
- Piston – Stainless steel and light alloy
- Piston seals – Nitrile (NBR)
- Magnets – Rare earths, a highly performing magnetic material
ASCO 445 Rodless Cylinders – SELECTION TABLE
The following should enable the correct selection of ASCO 445 rodless cylinders – for technical support contact T&D Sales Team who are trained by ASCO Numatics to provide expert advise on pneumatic cylinders and actuators.
| Ø (mm) | CYLINDER WITH ELASTIC CUSHIONING | Connector Ø | |
| ASCO Numatics Joucomatic Catalogue Number (non-cushioned) | Reference | ||
| 6 | ASCO 44550001 ❉ | STN 6 NA . ❉ . | M 5 |
| 10 | ASCO 44550002 ❉ | STN 10 NA . ❉ . -DM | M 5 |
| 16 | ASCO 44550003 ❉ | STN 16 NA . ❉ . -DM | M 5 |
| 20 | ASCO 44550004 ❉ | STN 20 NA . ❉ . -DM | G 1/8 |
| 25 | ASCO 44550005 ❉ | STN 25 NA . ❉ . -DM | G 1/8 |
| 32 | ASCO 44550006 ❉ | STN 32 NA . ❉ . -DM | G 1/8 |
| 40 | ASCO 44550007 ❉ | STN 40 NA . ❉ . -DM | G 1/4 |
❉ Please specify stroke length (in mm)

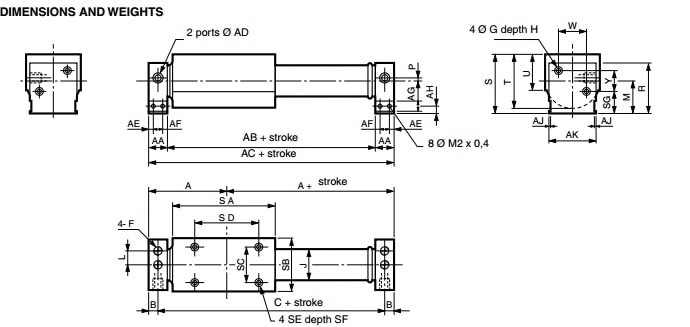

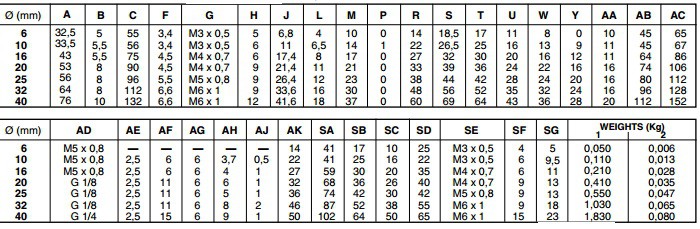

ASCO Numatics Joucomatic 445 rodless Cylinders – Dimensions
