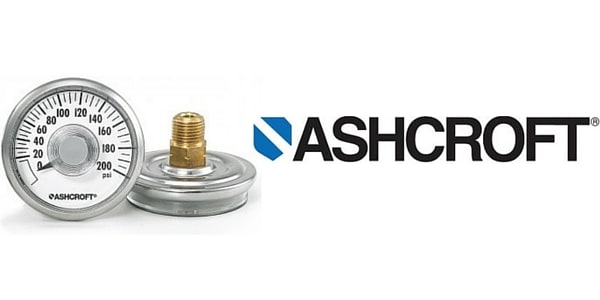

Ashcroft 12DDG/15DDG Pressure Gauge
Commercial Pressure Gauges – Ashcroft are the leading pressure and temperature instrumentation manufacturer of pressure gauges, test gauges and temperature gauges.
Ashcroft 12DDG/15DDG pressure gauge range is used in industrial equipment installations globally where space is limited and is known for it’s reliability, performance and safety thanks to the aesthetic panel mount design.
The Ashcroft 12DDG/15DDG pressure gauge range is unaffected by shock and vibration by using direct drive technology.
Ashcroft 12DDG/15DDG Pressure Gauge – Applications
- Air Inflators / Compressors
- Specialized OEM Equipment
- Industrial and Specialty Gases
- Breathing Apparatus
Ashcroft 12DDG/15DDG pressure gauge range should ideally be used in temperatures ranging from –30 to +65°C and at very low temperatures standard pressure gauges may display slow pointer response times.
Ashcroft 12DDG/15DDG Pressure Gauge – Features
- Sealed case provides dust-proof, weather / corrosion-resistant product
- Direct Drive Technology
- Silicone-dampened coil (option) resists vibration effects
- Easy installation using wrench flats
Ashcroft 12DDG/15DDG Pressure Gauge – Product Specifications
| Ashcroft Model Number | Ashcroft 12DDG/15DDG |
| Accuracy | Standard – 2% at setpoint (setpoint is normally 50% of range; other setpoints upon application) UL Listed – 3.5% of span in middle three-fifths of scale |
| Ring | None |
| Sizes | 11 ⁄4˝ (12DDG), 11 ⁄2˝ (15DDG) |
| Case | Stainless steel, sealed |
| Window | High impact-resistant polycarbonate |
| Pointer | Integral with Bourdon tube, black |
| Movement | None (direct reading) |
| Bourbon Tube & Socket | : Beryllium copper, spiral; soft soldered to socket Socket Brass |
ASHCROFT 12DDG/15DDG – HOW TO ORDER
Here is a typical ordering example for an Ashcroft 12DDG/15DDG pressure gauge – for technical support, specification and sales contact T&D.
Ashcroft Gauge : 15-DDG-01B-XUL-3000#
- Dial Size : 1 1/2″ (15)
- Case Type Number : DDG (DDG)
- Connection Size/Location : 1/4 NPT Back (01B)
- Option : XUL for UL 404 Listing (XUL)
- Range : 0/3000 psi (3000#)
Pressure Gauges – Ashcroft commercial gauges can be used to measure pressure on fire protection sprinkler pipework systems.
