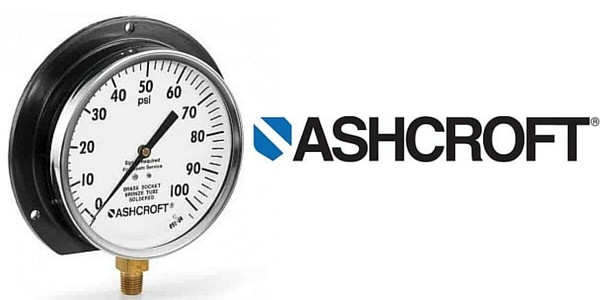

Ashcroft 2071A Contractor Pressure Gauge
Commercial Pressure Gauges – Ashcroft are the leading pressure and temperature instrumentation manufacturer of pressure gauges, test gauges and temperature gauges.
Ashcroft 2071A contractor pressure gauge is used mainly by HVAC and plumbing contractors as it is known for it’s reliability, performance and safety.
The Ashcroft 2071A contractor pressure gauge has been designed to meet the exact industry standards and to reduce inspection costs.
Ashcroft 2071A Contractor Pressure Gauge – Applications
- HVAC Inspection
- Water / Plumbing Inspection
- Inspection and Validation
The Ashcroft 2071A contractor pressure gauge should ideally be used in temperatures ranging from –30 to +65°C and at very low temperatures standard pressure gauges may display slow pointer response times.
Ashcroft 2071A Contractor Pressure Gauge – Features
- Corrosion-resistant case
- Adjustable pointer
- PowerFlex™ movement provides superior resistance to shock, vibration and pulsation; extends product life and reduces maintenance costs
- True Zero™ reduces reading errors by using a “zero zone” instead of conventional dial pins (posts); this ensures product safety, integrity and system control
- FlutterGuard™ (option) reduces movement wear and eliminates pointer flutter; extends product life and allows easy gauge readability
Ashcroft 2071A Contractor Pressure Gauge – Product Specifications
| Ashcroft Model Number | Ashcroft 2071A |
| Accuracy | ASME B40.100, Grade A, ±2-1-2% |
| Ranges | Vacuum – 600 psi and compound |
| Ring | Chrome plated steel, friction fit |
| Size | 41 ⁄2˝ |
| Case | Black painted aluminum with back flange |
| Window | Glass |
| Pointer | Adjustable, black, aluminum |
| Movement | PowerFlex™ with polyester segment |
| Bourbon Tube & Socket | “C”- shaped bronze, soldered, siphon required for steam service Socket Brass |
ASHCROFT 2071A – How To Order
Here is a typical ordering example for an Ashcroft 2071A pressure gauge – for technical support, specification and sales contact T&D.
Ashcroft Gauge 45-W-2071-A-02L–XT5-100#
- Gauge Dial Size : 4 1/2″ (45)
- Movement: Patented PowerFlex (W)
- Case Type Number : 2071 (2071)
- Connection Material : Brass (A)
- Connection Size/Location : 1/4″ NPT Lower (02L)
- Option : .013″ orifice throttle plug (XT5)
- Gauge Range : 100 psi (100#)
Pressure Gauges – Ashcroft commercial gauges can be used to measure pressure on fire protection sprinkler pipework systems.
ASHCROFT
Watch how Ashcroft pressure gauges and temperature instruments protect people in all industries and every environment.
ASHCROFT & THE WATER INDUSTRY
Ashcroft gauges monitor pressure in filtration, flow and level applications including pumps, control systems, filters and heat exchangers – providing process pressure measurement for hydrostatic pressure, filter monitoring or regulating flow and deionized water.
T&D service the global water utility industry with Electrical, Mechanical, Process & Instrumentation Equipment – this includes Water Metering, Heat Tracing, Gas Detection and Process Heating. Image : Mott MacDonald
Hazardous Areas
Ashcroft 2071A Contractor Pressure Gauge Data Sheet
Download
