ATEX CCTV Camera Stations Zone 1 & Zone 2 Explosion Proof PTZ – Eaton Oxalis XC26 Hazardous Area CCTV Camera Station

Eaton Oxalis XC26 are ATEX CCTV camera stations   an explosion protected PTZ camera station for use in hazardous areas in onshore, offshore, marine and heavy industrial environments.

The hazardous area CCTV camera stations are designed for longevity in harsh environments with minimal maintenance.

ATEX CCTV Camera Stations Zone 1 & Zone 2

Features

• ATEX, IECEx, Class 1 Division 1 and Zone 1 certified
• Electro-polished 316L stainless steel on all welded assemblies
• Pole or wall mounting options
• Supply voltage options 24 VAC
• Operating temperature -60˚C to +70˚C*
• IP66/67

*Model dependent

Oxalis XC26 Hazardous Area CCTV Camera Stations

Technical Specification

Hazardous Area Certifications
ATEX	II 2 G Ex db (op pr) IIC T4 Gb -60°C to +70°C II 2 D Ex tb (op pr) IIIC T140°C Db IP6x On Request: T5 -60°C to +65°C, T6 -60°C to +40°C On request: T135 -60°C to +65°C Certificate: ITS16ATEX101021X
IECEx	Ex db (op pr) IIC T4 Gb -60°C to +70°C Ex tb (op pr) IIIC T140°C Db IP6x On Request: T5 -60°C to +65°C, T6 -60°C to +40°C On request: T135 -60°C to +65°C Certificate: IECEx ITS 15.0068X
INMETRO	Ex db (op pr) IIC T4 Gb -60°C to +70°C Ex tb (op pr) IIIC T140°C Db IP6x On Request: T5 -60°C to +65°C, T6 -60°C to +40°C On request: T135 -60°C to +65°C Certificate: UL-BR 17.0063X
LCus C1/Z1	Class 1 Zone 1 A Ex d IIC T4 (T5 On Request) LC13A11396 Gb -60°C ≤Ta ≤ +60°C. UL 60079-0:2009 & 60079-1:2010 Certificate: 11396-1S-UL
cLCus C1/D1	Class I, Division 1, Groups B, C, D, -60°C≤Ta≤60°C T4 Class II, Division 1, Groups E, F, G IP67. CSA-C22.2 No:30-M1986 No:25-1966(R2009) CSAC22.2 No:60065-03(R2012) & UL1203,UL60065(ED.7) Certificate: 11671-1S (Gas) / 11677-1S (Dust)
cLC CSA	Ex d IIC T4 (T5 On Request) LC1311396 -60°C ≤Ta ≤ +60°C. CAN CSA-C22.2 No.60079-0:2011 & 60079-1-2012 Certificate: 11396-1S-CSA
TR CU, EAC	1 Ex db (op pr) IIC T4 Gb -60°C to +70°C Ex tb (op pr) IIIC T140°C Db IP6x On Request: T5 -60°C to +65°C, T6 -60°C to +40°C On request: T135 -60°C to +65°C Certificate: TCRUCGB.ГБ04.B00587
CCOE	Ex db (op pr) IIC T4 Gb -60°C to +70°C Ex tb (op pr) IIIC T140°C Db IP6x On Request: T5 -60°C to +65°C, T6 -60°C to +40°C On request: T135 -60°C to +65°C Certificate: P400546/1
CNEX	Ex db (op pr) IIC T4 Gb -60°C to +70°C Ex tb (op pr) IIIC T140°C Db IP6x On Request: T5 -60°C to +65°C, T6 -60°C to +40°C On request: T135 -60°C to +65°C Certificate: 17.1235X
CERTEX	Ex db (op pr) IIC T4 Gb -60°C to +70°C Ex tb (op pr) IIIC T140°C Db IP6x On Request: T5 -60°C to +65°C, T6 -60°C to +40°C On request: T135 -60°C to +65°C Certificate: S-XLP/17.0244X
Technical Specification
Certification part number	P&T 1420-11, Housing options 2410-04, 2410-05
Features
Sun shield	Standard stainless steel 316L mirror finish
Integral wiper	Optional (silicone wiper blades that are resistant and do not perish after long exposure to ozone, UV, ice, snow, heat or cold)
Integral demister	Standard
Washer systems	Compatible with Oxalis XW or XWP washer tanks
Pan speed (maximum)	45° per second
Tilt speed (maximum)	24° per second
Pre-set positional accuracy	64 presets: positional accuracy±0.1°
Telemetry receiver	Integral – Pelco D, P standard protocols (others to specification)
Rotation	350° rotation (+/- 175° from straight ahead)
Ingress protection rating	IP66/67
Type approval	DNVGL-CG-0339, 2016 (copper transmission only)
Electrical
Supply voltage options	24 VAC
Power consumption	85W maximum (143W with low temperature operation)
Electrical connections	Trailing cable tail for connection to external enclosure
Cable entry	Single M20 entry located in P&T

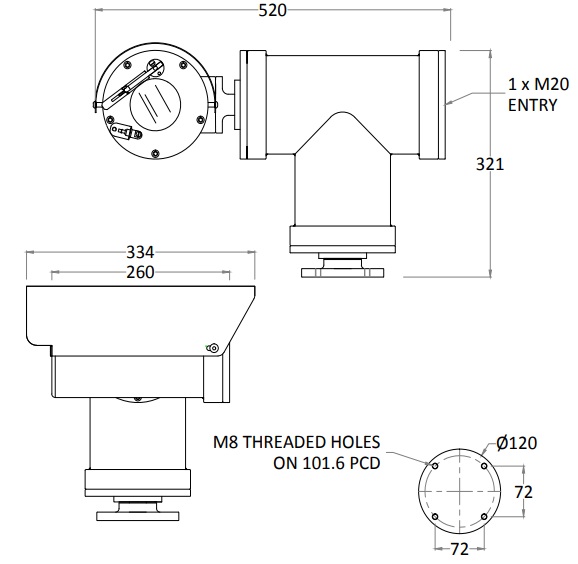

Mechanical
Body material	Electro-polished 316L stainless steel on all welded assemblies
Fixings material	A4 stainless steel
Camera station window	Toughened glass
Mounting options	Pole or wall
Operating temperature	e From -60°C to +70°C (model dependent)
Weight (Kg)	Up to 38Kg depending on configuration
Camera options
Type	1/4” CCD 36x zoom camera
Image sensor	1/4” EXview HAD CCD (progressive scan)
Resolution	High resolution mode on: 550 TV lines (default)
Lens	36x zoom 3.4-122.4 mm F1.6 to F4.5, horizontal angle of view 57.8°- 1.7°, 12X digital zoom, auto focus, auto iris
Min. illumination	1/60 s, 1/50 s mode: 1.4 Lux, 1/4 s, 1/3 s mode: 0.1 Lux, 1/4 s, 1/3 s mode& ICR On: 0.01 Lux
S/N ratio	>50dB
Features	ATW, day & night auto/colour / BW (IR-cut filter removable), camera title ON/OFF

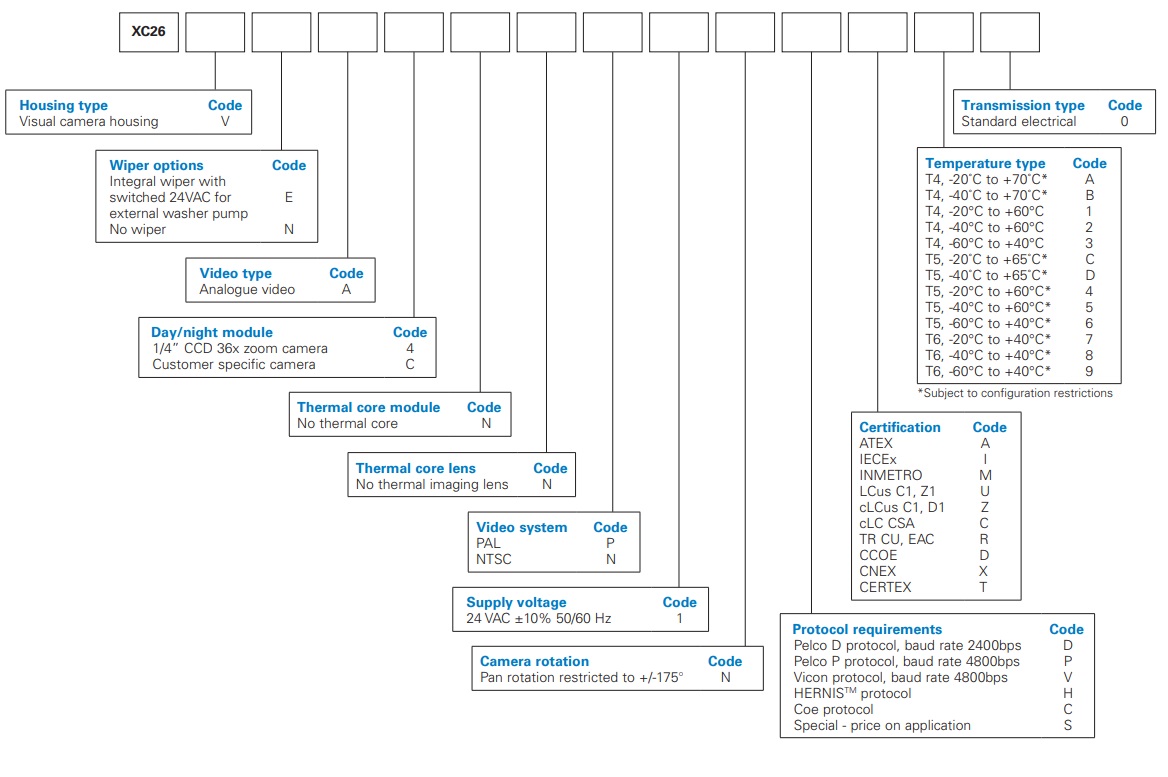

EATON Oxalis XC26 – ORDERING REQUIREMENTS

The following code is designed to help in selection of the Oxalis hazardous area CCTV camera station with ATEX approval and certification. Build up the part number by inserting the code for each component into the appropriate box.
