ATEX Mobile Phone Zone 1 Hazardous Area – Ecom Ex-Handy 08 Smart Phone

ATEX Mobile Phones

ECOM Ex-Handy 08

Zone 1 & Zone 21, Division 1 Hazardous Area Locations

***THIS PRODUCT HAS BEEN DISCONTINUED. The follow-up product is Ecom Ex-Handy 10 DZ1***

Ecom Ex-Handy 08 is an intrinsically safe, ATEX mobile phone certified for use within Zone 1, Zone 21 and Division 1 hazardous areas.

The Ecom Ex-Handy 08, ATEX certified hazardous area mobile phone, features Bluetooth 3.0, email client(POP3/SMTP, IMAP4), A-GPS®, a 2-megapixel camera with LED photoflash and video functionality, LED-flashlight and push-to-talk.

The Ecom Ex-Handy 08 comes with MS Office applications such as synchronising of external contact data and calendar data with MS Outlook.

With protection class IP68 and permissible ambient temperatures between -20 °C and +55 °C, the Ecom Ex-Handy 08 mobile phone can tackle the hardest of conditions in almost any hazardous area or industrial environment.

ATEX Mobile Phone

Ecom Ex-Handy 08 Key Features

Ecom Ex-Handy 08 ATEX mobile phone provides safe mobile communications for hazardous area workers:

MMS
Quad-band
Bluetooth®
Integrated Office functionality
Contact, calendar and message synchronization with MS® Outlook®
Free software for data transfer and synchronization
Bright LED flashlight
Rugged 2 megapixel camera with LED flash and video function (optional)
Lone worker protection and cell phone in one device
Scratch and impact-resistant Gorilla® Glass display
SIM lock free
Vibration alert
3G HSPA/GSM/GPRS/EDGE
Bluetooth® 3.0 (DUN, OPP, SAP, HSP, HFP, FTP,A2DP,AVRCP, PBAP)
PTT (server-dependent)
Native e-Mail-client (POP3/SMTP, IMAP4)
WAP 2.0 (XHTML) browser
Java™ 2.0 ME (CLDC 1.1)
A-GPS®
Slot for Micro SD-Cards up to 16 GB
ATEX Mobile Phone – Smart Phone

ATEX Mobile Phone – Ecom Ex-Handy 08 Smart Phone

ATEX MOBILE PHONE ZONE 1 HAZARDOUS AREA

ECOM EX-Handy 08 SMART PHONE Technical Data

Networks	Quad band GSM 850/900/1800/1900 MHz Triband UMTS/WCDMA band 1, band 4, band 8 (EU) or band 1, band 2, band 5 (US)
Data Transfer	GPRS & EDGE Class 12 HSDPA Catergorie 7/8 (7.2mbits/s) HSUPA Categorie 6 (5.6 mbits/s)
Display	LCD with 5cm (2 inches) (240 x 320 pixel)
Power Supply	1.280 mAh Li-Ion (SC battery) or 1.960 mAh Li-Ion (5.6 mbits/s)
Talk Time / Stand-By	Max 4.5 hours / max 250 hours (with SC battery) Max 7 hours / max 400 hours (with HC battery)
Charging Time	Approx 3 hours / 4 hours (Battery SC / HC)
Ambient Temperature	-20ºC to +55ºC (-4ºF to +131ºF)
Protection Class	IP68 (30 minutes, 2 meters under water)
Size	126mm x 60mm x 25mm (5″ x 2.4″ x 1″) without battery
Weight	Approx 200g (7.1oz) / 220g (7.8oz) including battery SC / HC
Hazardous Area Certifications
ATEX	II 2 G, Ex ib IIC T4 Gb IP64, II 2 D Ex ib IIIC T130ºC Db IP6X
CSA	Class I, Groups A, B, C, D, T4 Class II, Groups E, F, G, T4 Class III Div 1
IECEx	Ex ib IIC T4 Gb IP64, Ex ib IIIC T130ºC Db IP6X

ATEX Mobile Phone Zone 1 Hazardous Area - Ecom Ex-Handy 08 Smart Phone

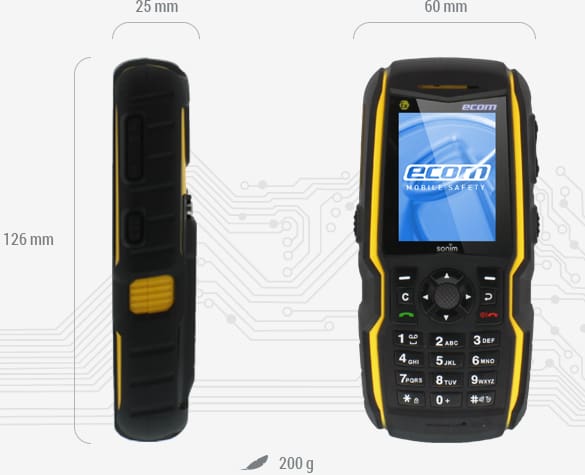

ATEX Mobile Phone – Ecom Ex-Handy 08 Smart Phone Dimensions

Hazardous Area INTERNATIONAL Certifications

Ecom Ex-Handy 08 smart phone is ATEX certified to most international hazardous area certification bodies:

ATEX (Europe)

II 2 G, Ex ib IIC T4 Gb IP64
II 2 D Ex ib IIIC T130ºC Db IP6X

IECEx (International)

Ex ib IIC T4 Gb IP64
Ex ib IIIC T130ºC Db IP6X

CSA (Northern America)

Class I, Groups A, B, C, D, T4
Class II, Groups E, F, G, T4
Class III Div 1

T&D are Main Distributors for the complete range of Ecom Hazardous Area Mobile Communications & Computers – this includes mobile smartphones, tablets and handheld computers.

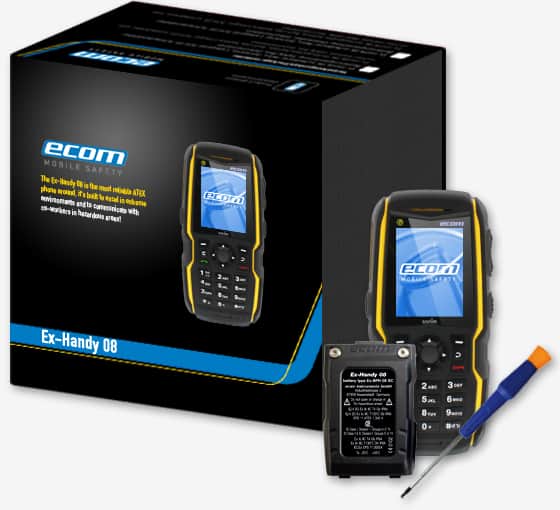

Ecom Ex-Handy 08 Smart Phone comes with rechargeable battery and charger, safety box and belt clip as standard.

Ecom Smart-Ex Hazardous Area Mobile & Smart Phones – Safe Working In Explosive Atmospheres

Ecom Mobile Communications

Ecom (a Pepperl & Fuchs brand) are responsible for protecting people, places and equipment in the most challenging of workplaces anywhere in the world. Typical applications and industries for Ecom hazardous area equipment include the global oil and gas industry, petrochemical plants, mining and underground processes.
