ATEX Push Button Control Station (Aluminium) Hazardous Area Zone 2 – Technor EFXE

Push Button Control Station (Aluminium) Hazardous Area Zone 2 ATEX - Technor EFXE

Push Button Control Station (Aluminium) Hazardous Area Zone 2 ATEX – Technor EFXE

ATEX Push Buttons

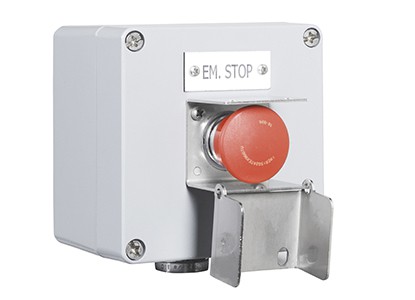

Hazardous Area Push Button Control Station

Technor EFXE (Aluminium)

ATEX

ATEX Zone 2 Control Stations

  • Product Type: Push Button
  • Control Station Material: Aluminium with low content of copper
  • IP Rating: IP66/IP67
  • Ambient Temperature Range: -50°C to +60°C (ATEX), -50°C to +95°C (IECEx)
  • Approvals: IMQ 08 ATEX 028X
    IECEx IMQ 15.0002X
    TR CU
  • Surface Treatment: Standard with polyester powder coating RAL 7001
  • Standard Certificate Label: Made by self adhesive UV and corrosion resistant polyester, approved by INERIS Laboratory
  • Accessories Available: Hinges
    Drain/breather valve
    Traffolyte/Stinless steel certificate label
    Internal mounting plate
    Passing through earth bolt

ATEX Certification Code

  • ATEX II 2 GD Ex de IIC T(**) Gb / Ex mb IIC T(**) Gb
  • ATEX Ex tb IIIC T(**) Db IP66/67
    ** T6/T85°C, T5/T100°C, T4/T135°C

Hazardous area push button control station with ATEX certification is designed to meet the requirements for use on and offshore, in petrochemical and marine applications and can be equipped with Ex de certified standard and emergency push buttons, rotating switches, signalling lamps and measurement instruments.

Push Button Control Station (Aluminium) Hazardous Area Zone 2 ATEX - Technor EFXE

Technor EFXE Push Button Control Station – Dimensions

Technor Control Station Code Technor Control Station Part Number Dimensions (mm)
A B C E F
B0201.081809 EFXE-0818 80 175 80 52 162
B0201.082506 EFXE-0825 80 250 80 51 237
B0201.101609 EFXE-1015 100 150 80 64 134
B0201.101009 EFXE-1010 100 100 81 66 86
B0201.121210 EFXE-1212 120 122 81 83 106
B0201.122211 EFXE-1222 120 220 90 82 204
B0201.161610 EFXE-1616 160 160 90 110 140
B0201.165610 EFXE-1624 160 240 100 123 225
B0201.163610 EFXE-1636 160 360 91 110 340
B0201.232012 EFXE-2023 202 232 110 180 180
B0201.232812 EFXE-2328 230 280 110 181 261
B0201.233314 EFXE-2333 231 331 120 177 311
