ATEX Tablet Zone 1 / Zone 21 & Div 1 Hazardous Area – Ecom TAB-EX 02 DZ1 Android Tablet

ATEX Tablets

ECOM Tab-Ex 02 DZ1

Zone 1 & Zone 21, Division 1 Hazardous Area Locations

Tab-Ex 02 DZ1 is a hazardous area Zone 1/21 & DIV 1 Samsung-based tablet from Ecom. The devices are available in a Zone 2, Division 2 model, and now a Zone 1/21, Division 1 model for use in potentially explosive atmospheres and hazardous areas. There is also a DZ1 Mining version of the Tab-Ex 02 series is suitable for Group I, Category M2 mining applications and features an equipment protection level of Mb. No matter where you work, Ecom Tab-Ex has you covered.

Ecom Tab-Ex 02 carries on the legacy of its predecessor the Ecom Tab-Ex 01 which was the first tablet series in the world equipped for industrial use within hazardous areas.

It is now the most widely used technology worldwide – including by well-known global companies such as Shell. No ATEX tablet series is more field-tested and approved, and none is built on so much experience.

ATEX Tablet Ecom TAB-Ex 02 DZ1

Features

Ecom Tab-Ex 02 DZ1 tablet provides safe mobile communications for hazardous area workers:

Ensuring and maximizing mobile worker’s efficiency & productivity
Ensuring accurate data capture, real-time information and decision making
Minimizing costs
Improve ease of use & customer experience
Rugged design

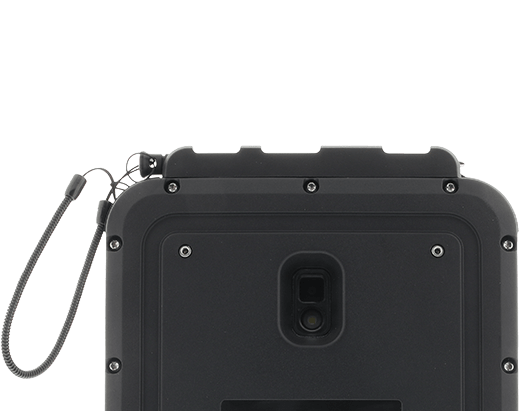

Sensor/gyroscope (magnetic compass) – Enables augmented reality to optimize applications
Samsung Knox: Reliable enterprise mobile data security
High-quality 8 MP/5 MP camera with autofocus function / optional: Non-Camera
Fast processor & high storage capacity
Flexible: A larger number of more complex applications can be integrated
Future-proof: Fulfils the requirements of future, more elaborate applications
Time-saving: High computing power for faster data processing

Ecom TAB-EX 01 Android Tablet

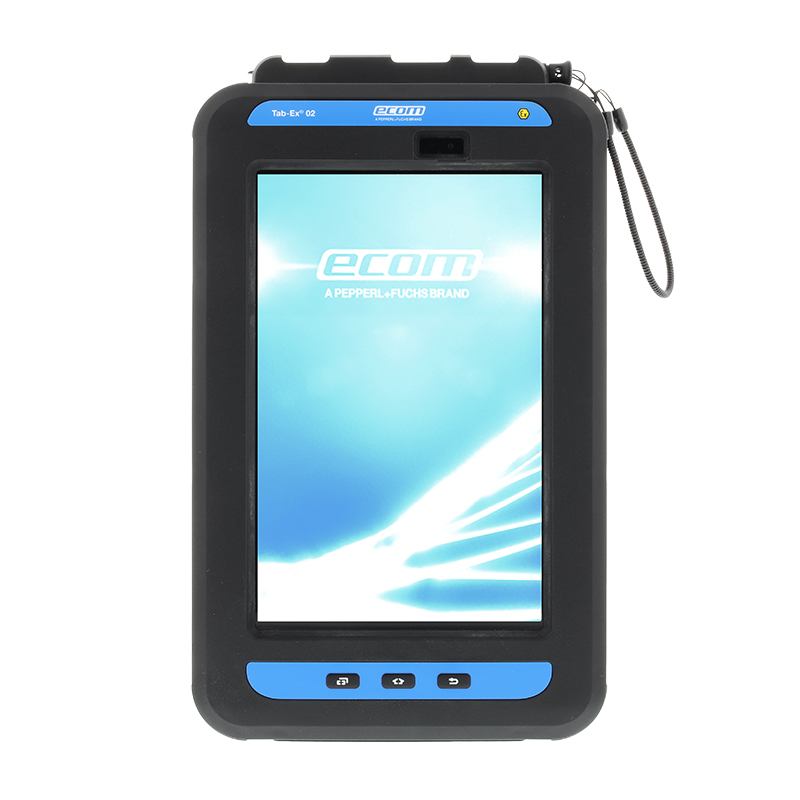

ATEX Tablet ECOM TAB-EX 02 DZ1

Technical Data

Ecom TAB-Ex 02 DZ1 ATEX Tablet
Operating System	Android™ 9
Processor	Exynos 7 Octa, 1.6GHz Octa-Core (Cortex^®-A53)
Band	ROW WWAN version only Supported cellular frequency bands: 4G LTE FDD: B1(2100), B2(1900), B3(1800), B4(AWS), B5(850), B7(2600), B8(900), B17(700), B20(800), B28(700) 4G LTE TDD: B38(2600), B40(2300) 3G UMTS: B1(2100), B2(1900), B4(AWS), B5(850), B8(900) 2G GSM: 850 / 900 / 1800 / 1900 MHzNAM WWAN version only Supported cellular frequency bands: 4G LTE FDD: B2(1900), B3(1800), B4(AWS), B5(850), B7(2600), B12(700), B13(700), B29(700) 3G UMTS: B1(2100), B2(1900), B5(850), B8(900)
Memory and Storage	RAM: 3 GB, Internal data storage: 16 GB, with external MicroSD up to 256 GB Please note: For safety reasons, the SD card cannot be installed or replaced after delivery.
Display	1280×800 pixels (WXGA), 8“, TFT, 480 nit Brightness, Operation: also with gloves / in wet conditions & snow
Sensors	Face Recognition NFC Accelerometer Gyroscope Geomagnetic Hall RGB Light Proximity GPS
Connectivity	LTE Cat.6 (300Mbps) – in LTE model Wi-Fi 802.11 a/b/g/n/ac (2.4GHz+5GHz) Wi-Fi Direct Bluetooth^® 4.2
Operating Temperature	-20 … +50 °C
Camera	8 MP AF + 5 MP / optional: Non-Camera
Security	Samsung KNOX 3.2, Facial Recognition
Degree of Protection	IP64 according to EN/IEC 60079-0 (ATEX/ IECEx) IP65 according to EN/IEC 60259 (industrial standard)
Weight	1250 g
Dimensions (W x H x D)	162.1 x 256.0 x 33.3 mm, ca.

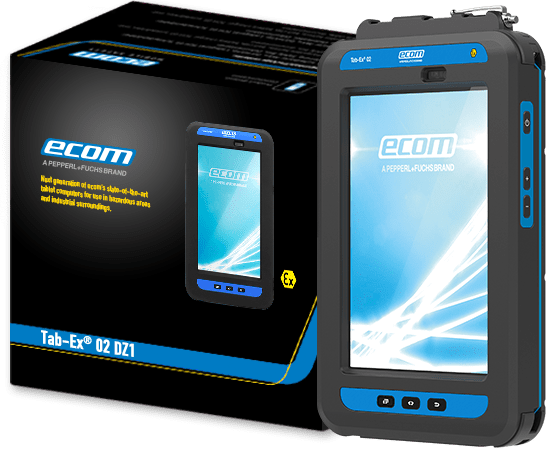

Scope of Delivery	Tab-Ex® 02 incl. Battery (4450 mAh) Stylus Holder S Pen Safety Box USB Cable Travel Charger (EU, UK, US) Documentation SD card (optional / depending on configured Tab-Ex) Please note: For safety reasons, the SD card cannot be installed or replaced after delivery. WWAN (optional / depending on configured Tab-Ex)

ATEX Tablets | Ecom Tab-Ex 02 DZ1

ATEX Tablets Ecom Tab-Ex 02

Hazardous Area INTERNATIONAL Certifications

Ecom TAB-Ex 02 DZ1 tablet is certified to most international hazardous area certification bodies:

ATEX (Europe)

II 2G Ex db ia op is IIC T5 Gb
II 2D Ex tb ia op is IIIC T100°C Db
Ta = -20 °C to +50 °C

IECEx (International)

Ex db ia op is IIC T5 Gb
Ex tb ia op is IIIC T100°C Db
Ta = -20 °C to +50 °C

INMETRO (Brazil)

Ex db ia op is IIC T5 Gb
Ex tb ia op is IIIC T100°C Db
Ta = -20 °C to +50 °C

CSA (Northern America)

Class I, II, Division 1, Groups A-G T5
Class I, Zone 1 AEx db ia op is IIC T5 Gb
Zone 21 AEx tb ia op is IIIC T100°C Db
Ta = -20 °C to +50 °C

EAC (Россия)

1Ex db ia op is IIC T5 Gb X
Ex ia tb IIIC T100°C Db X
Ta = -20 °C to +50 °C

IA (South Africa)

Ex db ia op is IIC T5 Gb
Ex tb ia op is IIIC T100°C Db
Ta = -20 °C to +50 °C

ECAS Ex

Ex db ia op is IIC T5 Gb
Ex tb ia op is IIIC T100°C Db
Ta = -20 °C to +50 °C

Ecom TAB-EX 02 ATEX Tablet

T&D are Main Distributors for the complete range of Ecom Hazardous Area Mobile Communications & Computers – this includes mobile smartphones, tablets and handheld computers.

Ecom Smart-Ex Hazardous Area Mobile & Smart Phones – Safe Working In Explosive Atmospheres

Ecom Mobile Communications

Ecom (a Pepperl & Fuchs brand) are responsible for protecting people, places and equipment in the most challenging of workplaces anywhere in the world. Typical applications and industries for Ecom hazardous area equipment include the global oil and gas industry, petrochemical plants, mining and underground processes.
