ATEX Tablet Zone 2 / Zone 22 & Div 2 Hazardous Area – Ecom TAB-EX 02 DZ2 Android Tablet

ATEX Tablets

ECOM Tab-Ex 02 DZ2

Zone 2 & Zone 22, Division 2 Hazardous Area Locations

Tab-Ex 02 DZ2 is a hazardous area Zone 2/22 & DIV 2 Samsung-based tablet from Ecom. The devices are available in a Zone 2, Division 2 model, and now a Zone 1/21, Division 1 model for use in potentially explosive atmospheres and hazardous areas. There is also a DZ1 Mining version of the Tab-Ex 02 series is suitable for Group I, Category M2 mining applications and features an equipment protection level of Mb. No matter where you work, Ecom Tab-Ex has you covered.

Ecom Tab-Ex 02 carries on the legacy of its predecessor the Ecom Tab-Ex 01 which was the first tablet series in the world equipped for industrial use within hazardous areas.

It is now the most widely used technology worldwide – including by well-known global companies such as Shell. No ATEX tablet series is more field-tested and approved, and none is built on so much experience.

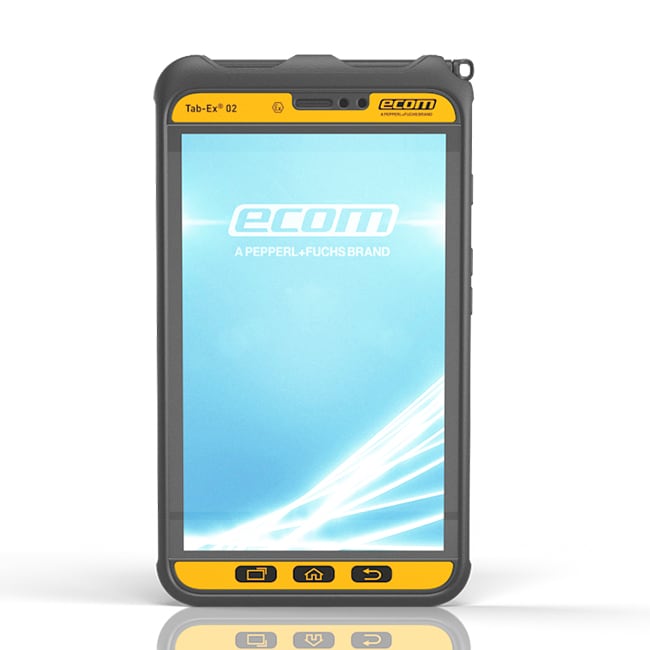

ATEX Tablet Ecom TAB-Ex 02 DZ2

Features

Ecom Tab-Ex 02 DZ2 tablet provides safe mobile communications for hazardous area workers:

Ensuring and maximizing mobile worker’s efficiency & productivity
Ensuring accurate data capture, real-time information and decision making
Minimizing costs
Improve ease of use & customer experience
Octa-Core
3 GB RAM
8MP AF + 5MP Camera / optional: Non-Camera
IP64
S Pen
Pogo pin for charging
Biometric Authentication
Additional sensors: Gyroscope, Geomagnetic

Ecom TAB-EX 02 DZ2 Android ATEX Tablet

ATEX Tablet ECOM TAB-EX 02 DZ2

Technical Data

Ecom TAB-Ex 02 DZ2 ATEX Tablet
Operating System	Android™
Processor	Exynos 7 Octa, 1.6GHz Octa-Core (Cortex^®-A53)
Band	ROW WWAN version only Supported cellular frequency bands: 4G LTE FDD: B1(2100), B2(1900), B3(1800), B4(AWS), B5(850), B7(2600), B8(900), B17(700), B20(800), B28(700) 4G LTE TDD: B38(2600), B40(2300) 3G UMTS: B1(2100), B2(1900), B4(AWS), B5(850), B8(900) 2G GSM: 850 / 900 / 1800 / 1900 MHzNAM WWAN version only Supported cellular frequency bands: 4G LTE FDD: B2(1900), B3(1800), B4(AWS), B5(850), B7(2600), B12(700), B13(700), B29(700) 3G UMTS: B1(2100), B2(1900), B5(850), B8(900)
Memory and Storage	RAM: 3 GB, Internal data storage: 16 GB, with external MicroSD up to 256 GB
Display	1280×800 pixels (WXGA), 8“, TFT, 480 nit Brightness Operation: also with gloves / in wet conditions & snow
Sensors	Face Recognition NFC Accelerometer Gyroscope Geomagnetic Hall RGB Light Proximity GPS
Connectivity	LTE Cat.6 (300Mbps) – in LTE model Wi-Fi 802.11 a/b/g/n/ac (2.4GHz+5GHz) Wi-Fi Direct Bluetooth^® 4.2
Operating Temperature	-20 … +55 °C
Camera	8 MP AF + 5 MP / optional: Non-Camera
Security	Samsung KNOX 3.2, Facial Recognition
Degree of Protection	IP64 according to EN/IEC 60079-0 (ATEX/ IECEx) IP68* according to EN/IEC 60259 (industrial standard) and MIL-STD-810G (* IP68 is based on test conditions for submersion in up to 1.5 meters of freshwater for up to 30 minutes. Not advised for beach or pool use. Water or dust damage not covered by warranty)
Weight	575 g (Wi-Fi) / 579 g (LTE)
Dimensions (W x H x D)	127.6 x 214.7 x 9.9 mm
Battery	Li-Ion battery 3.8 V / 4,450 mAh / 16.91 Wh / up to 11 hours battery life
Port	USB 2.0 Type-C / microSD slot (up to 256GB) / Pogo Pin (charging and USB signal for keyboard)
Stylus	S Pen / water and dust resistant (IP68) / in-box
Ruggedness	Water and dust resistant (IP68), anti-shock (drop from 1.2m height with cover)

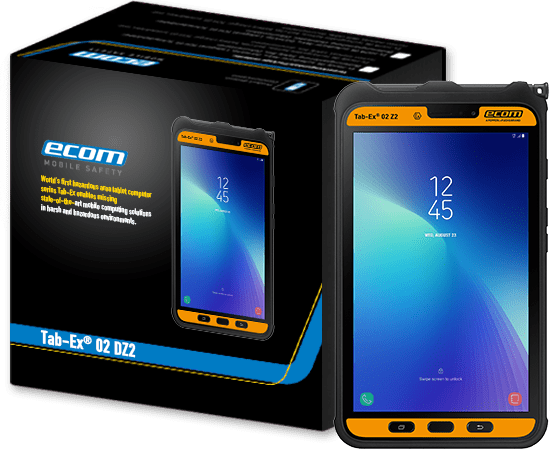

Scope of Delivery	Tab-Ex® 02 incl. Battery (4450 mAh) Ex-Protective Cover S Pen Travel Charger (EU, UK, US, AU) Documentation SD card (optional / depending on configured Tab-Ex) WWAN (optional / depending on configured Tab-Ex)

Ecom TAB-EX 02 DZ2 Android ATEX Tablet

Hazardous Area INTERNATIONAL Certifications

Ecom TAB-Ex 02 DZ2 tablet is certified to most international hazardous area certification bodies:

ATEX (Europe)

II 3G Ex ic IIC T5 Gc
II 3D Ex ic IIIB T100°C Dc
Ta = -20 °C to +55 °C

IECEx (International)

Ex ic IIC T5 Gc
Ex ic IIIB T100°C Dc
Ta = -20 °C to +55 °C

INMETRO (Brazil)

Ex ic IIC T5 Gc
Ex ic IIIB T100°C Dc
Ta = -20 °C to +55 °C

CSA (Northern America)

Class I, Division 2, Groups A,B,C,D T5
Class I Zone 2 Group IIC T5
Ta = -20 °C to +55 °C

EAC (Россия)

2Ex ic IIC T5 Gc X
Ex ic IIIB T100°C Dc X
Ta = -20 °C to +55 °C

IA (South Africa)

Ex ic IIC T5 Gc
Ex ic IIIB T100ºC Dc
Ta = -20 °C to +55 °C

ECAS Ex

Ex ic IIC T5 Gc
Ex ic IIIB T100°C Dc

KC – Korean Certification

Ex ic IIC T4
Ex ic IIIB T100°C

Ecom TAB-EX 02 ATEX Tablet

T&D are Main Distributors for the complete range of Ecom Hazardous Area Mobile Communications & Computers – this includes mobile smartphones, tablets and handheld computers.
