ATEX Increased Safety Control Panels

increased safety control stations

Push Button + Push-Pull Emergency Stop

Zone 1 & Zone 2 (Gas) | Zone 21 & Zone 22 (Dust) Hazardous Areas

Appleton ATX U21W2J1

The Unicode 2 Series of polyester Increased Safety control stations and switches, manufactured by Appleton ATX, are ideal for use in hazardous areas and washdown areas. The ATEX certified, Increased Safety control stations provide safe circuit selection and control in potentially explosive atmospheres.

A wide range of push buttons, selector switches, illuminated push buttons, control and load break switches and LED pilot lights are available for use with contactors or magnetic starters for the remote control of motors.

➡ More reading can be found in this blog article on Motor Starters

Product: Increased Safety Control Stations
Increased Safety Control Stations | Appleton ATX
Manufacturer: Appleton ATX
Range: Unicode 2 – Stainless Steel

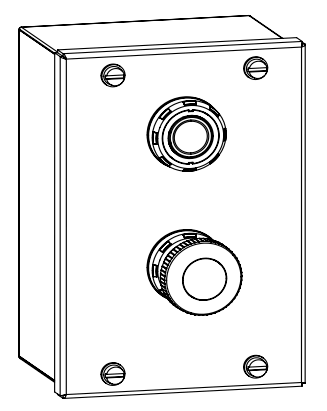

Increased Safety Control Station Type: Size 2 Push Button + Push-Pull Emergency Stop
Description: 1 x green push button ‘I’ with 1NO momentary contact, 1 x red mushroom head push-pull with 1NC maintained contact
Cable Entries: 2 x M20
Cable Entry Location: Bottom
Standard Materials: 316L Stainless Steel with a natural finish
Increased Safety Control Station Weight: 1.8 kg | 3.97 lbs
Increased Safety Control Station Volume: 4.3 dm³ | 262.40 in³
Ambient Temperature: -50 °C to +70 °C (-58 °F to +158 °F)
Surface Temperature: T80 °C to T95 °C (T176 °F to T203 °F)
Accessories Included: 1 white self-adhesive laminated plastic nameplate, 1 brass earth continuity plate, 1 blanking plug and 1 cable gland
Hazardous Area Certified: ATEX & IECEx
ATX U61W2J1 is ideal for use in Zone 1 and Zone 21 as well as Zone 2 and Zone 22 hazardous area locations

increased safety control stations

dimensions

Appleton ATX Increased Safety Control Stations Size 2 Box | Dimensions in mm (inches)

ATEX/IECEx Certification and Compliances

IECEX

• Certification Type CSPe
— Gas: Zone 1 and Zone 2
– Conforming to ATEX 94/9/CE: Ex II 2 G
– Type of Explosion Protection: Ex de IIC/Ex demb IIC
– Temperature Class: T6
— Dust: Zone 21 and Zone 22
– Conforming to ATEX 94/9/CE: Ex II2 D
– Type of Explosion Protection: Ex tD A21
— Surface Temperature: T75 °C (T167 °F)
— Ambient Temperature: -55 °C to +60 °C (-67°F to +140°F)
— CE Declaration of Conformity: 52084
— ATEX Certificate: LCIE 00 ATEX 3032X
ATEX — IECEx Certificate: IECEx LCI 09.0016X
