Chromalox SLL28-CT | 14 AWG Trace Heating Long Line Cable

chromalox-sll-series-long-line-trace-heating-cable-freeze-protection-of-pipes-valves-tanks

Trace Heating Cables

Chromalox SLL28-CT Series Long Line trace heating cables provide process temperature maintenance and frost protection to pipework, instrument lines, tanks and drums – with CSA approvals to ensure integrity in most hostile industrial environments.

  • Manufacturer: Chromalox
  • Heating Cable Range: SLL
  • Heating Cable Code: SLL28-CT
  • Cable Type: Series Long Line Cable
  • Conductor Size: 14 AWG
  • Approximate Cable Size : 3/8″ W x 1/8″ H
  • Maximum Continuous Exposure Temperature : Power Off 232° Celsius
  • See Also: Trace Heating

Chromalox SLL Series Long Line Trace Heating Cable – Construction



  1. Twin 16, 14, 12, 10 AWG Copper Buss Wires are able to provide reliable electrical current capability
  2. High Temperature Fluropolymer Core Matrix is flame retardant and electrically insulates the matrix
  3. High Temperature Fluoropolymer Jacket is flame retardant and electrically insulates the matrix
  4. Metallic Braid that provides additional mechanical protection in any environment, and a positive ground path
  5. High Temperature Fluoropolymer Overjacket is a corrosion resistant, flame retardant overjacket is highly effective in many environments.

Cable Ordering Information

Constructed of industrial grade 14 AWG buss wire with metal braid and fluropolymer overjacketing, SLL28-CT ensures operating integrity in most hostile industrial environments. The 450°F (232°C) maximum exposure temperature rating allows steam cleaning of process equipment with up to 300 psig steam.

A ground fault protection device is required by NEC to minimize the danger of fire if the heating cable is damaged or improperly installed. A minimum trip level of 30mA is recommended to minimise nuisance tripping.

➡ See also : Electrical Heating for Hazardous Areas

ModelConductor SizeΩ/ft @ 68°F (20°C) Ω/m @ 68°F (20°C) Maximum Circuit Breaker SizeWt./1000′Chromalox Order Code
SLL28-CT14 AWG0.005800.0019030100 lbs384956

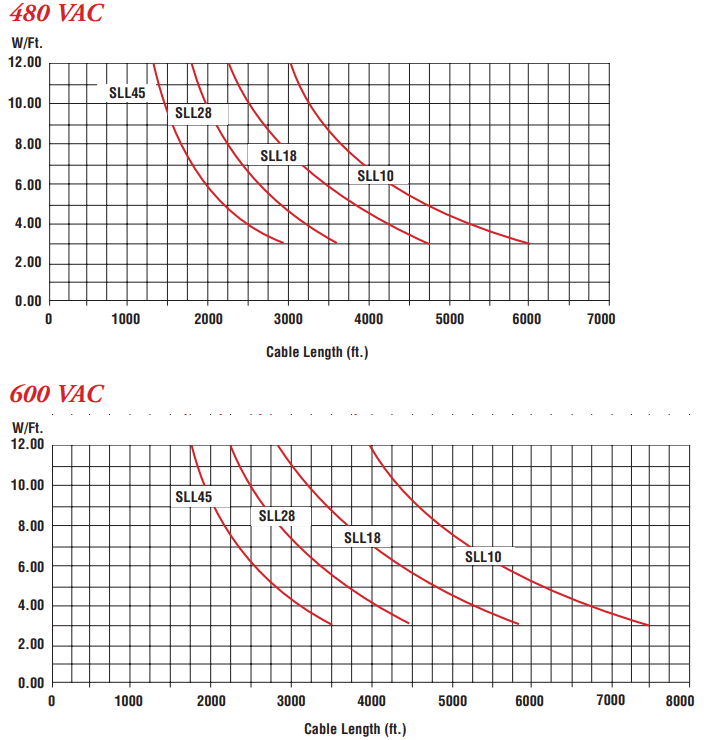

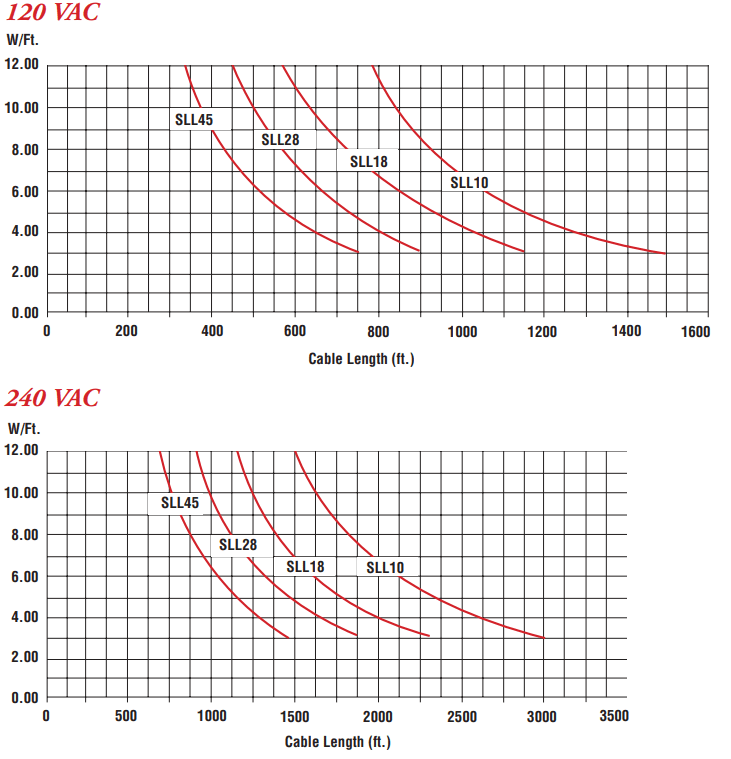

Nominal Output Ratings on Metal Pipe

Chromalox SLL28-CT

All power outputs below at 68˚F (20˚C)
