Open Path Gas Detection System | Continuous Monitoring for Combustible Hydrocarbon Gases

The SafEye 200, manufactured by Crowcon, is an open path fixed gas detection system. It is a self contained, fast response optical gas detection system which can detect combustible gases at concentrations lower than the explosion limit (LEL) over a “Line of Sight” of up to 460 ft. (140 m) long.

SafEye is the preferred system for offshore oil companies because it is immune to false alarms caused by partial blockage and extreme weather conditions (fog, rain, snow) and direct or reflected sunlight, flame and other black body radiation sources. The SafEye system can be factory calibrated to a particular gas mixture most probable to leak in a specific location. This results in the most accurate gas concentration measurement.

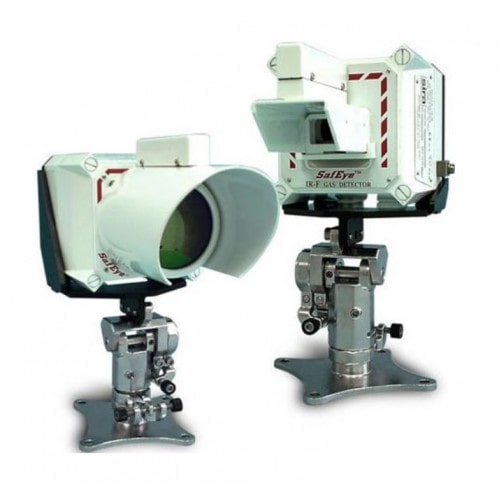

Crowcon SafEye 200 Gas Detectors

Tried & Tested

In an offshore installation in the North Sea, the SafEye was tested over six winter months which included weather conditions such as very dense fog, snow and rain. The gas detector remained fully operational at all times.

The SafEye range is built for reliability and continued operation under all types of extreme environmental conditions.

Typical applications include Offshore Oil & Gas Exploration Oil Rigs and FPSOs; Onshore Oil & Gas Terminals; Storage Farms and Filling Stations; Petrochemical and Chemical Industries; Power Utilities and Turbines areas;  Waste Processing and Treatment; Transportation Terminals; Automotive, Painting, Printing, Pharmaceutical Industries and many more.

SafEye 200 Gas Detector

Features

• Proven Technology Used in highly sensitive areas to detect low gas concentration levels to activate alarms measures only when specific hazardous concentration levels are exceeded. Thousands are installed on offshore platforms, FPSO’s, refineries and other onshore applications operated by British Petroleum (BP), Shell, ExxonMobil, Statoil and others.
• Cost Saving One system can replace from 5 to 20 point gas detectors in a straight line of sight, up to 460 ft. (140 m). Low cost of ownership, much lower installation cost!
• Low Maintenance High reliability, simple installation, alignment and maintenance, equipment not subject to poisoning.
• Fast Response Adjustable light source flash rate gives high sensitivity and extremely fast detection time. Also prevents detector from going into obscuration when a large cloud of gas passes through the beam.
• Standard Interface Options Standard 4-20 mA outputs or RS-485 output to allow networking (up to 64 detectors) to a central monitoring/PC system. This feature also enables easy maintenance, local and remote diagnostic tools.
• Harsh Environment Specially designed to perform under extreme conditions such as high-speed airflows, humidity and corrosive gases where point detectors may not be effective.
• T&D also stock & ship products from stock suitable for frost protection, hot water, ramp heating and roof & gutter heating

Crowcon SAFEYE 200

Specification

Electrical Specifications

• Power Supply: 24VDC nominal (18-32 VDC)
• Power Consumption (peak includes heated optics): Detector: 150mA (300mA Peak) | Source: 100mA (300mA Peak)
• Electrical Connection (specify): 2 x 3/4″ – 14NPT conduits or 2 x M25 x 1.5mm ISO
• Electrical Input Protection: Complete electrical interface protection against reversed polarity voltage, surges and spikes according to MIL-STD-1275A
• Electromagnetic Compatibility: EMI/RFI protected CE Marked

General Specifications

Crowcon SafEye 200 Model	202/252	230/253	204/254	226/256	227/257
Gas Detecting Range	9.8 – 39ft 3 – 12m	33 – 131ft 10 – 40m	165-460ft 50 – 140m	13 – 66ft 4 – 20m	50 – 230ft 15 – 70m
Response Time	2 seconds	5 seconds
Detected Gases	C1-C8 flammables by models 202-227, Ethylene by models 252-257
Immunity to False Alarm	Not influenced by solar radiation, hydrocarbon flames and other external IR radiation sources
Spectral Response	3.0-4.0 μm
Sensitivity Range	0-5 LEL.m Standard 0-2 LEL.m by dip-switch setting
Displacement/Misalignment Tolerance	±1˚
Drift	Long-term ±5% of full scale
Temperature Range	-40˚F (-40˚C) to 131˚F (55˚C)



Mechanical Specifications

Dimensions	5.2″ (132mm) x 5.2″ (132mm) x max. 11″ (280mm)
Weight	Aluminium Enclosure – Detector: max 8.8 lb (4 kg) Source: max 10.8 lb (4.9 kg) Stainless Steel Enclosure – Detector: max 14.3 lb (6.5 kg) Source: max 16.7 lb (7.6 kg)
Mechanical Design	The standard detector housing is heavy-duty, copper-free (less than 1%) Aluminium. The housing is finished in white epoxy enamel and is also available in 316L Stainless Steel* upon request. *Carries an additional charge.
Water & Dust Tight	IP66 and IP67 NEMA 250 6P
Environmental Standards	Meets MIL-STD-810C for Humidity, Salt & Fog, Vibration, Mechanical shock, High Temp, Low Temp
Hazardous Area Approvals	ATEX EX II 2G EEx d IIB + H2 T6 (55˚C) EX II 2G EEx de IIB + H2 T6 (55˚C) UL UL No. – E209870, Class I Groups C and D Hazardous Location GOST R Approved

Hazardous Area Equipment

Visit hazardous area gas detectors for explosion and flameproof gas monitoring and detection instruments with certification for potentially explosive atmospheres, including Zone 1 and Zone 2 (according to ATEX and IECEx) and Class/Division categories (according to North American standards).

T&D provide competitive prices and delivery for all Crowcon Gas Detectors, including the Crowcon Open Path Gas Detectors.

:arrow: Did you know? Crowcon fixed gas detectors protect plant; portable gas detectors protect people.

---
