ATEX Tablet Zone 2/ Zone 22 & Div 2 Hazardous Area – Ecom TAB-EX PRO DZ2 Android Tablet

ATEX Tablets

ECOM Tab-Ex Pro DZ2

Zone 2 & Zone 22, Division 2 Hazardous Area Locations

Tab-Ex Pro DZ2 is a hazardous area Zone 2/22 & DIV 2 Samsung-based tablet from Ecom. The Tab-Ex series is the world’s first 10-inch Android tablet for potentially explosive atmospheres and hazardous areas.

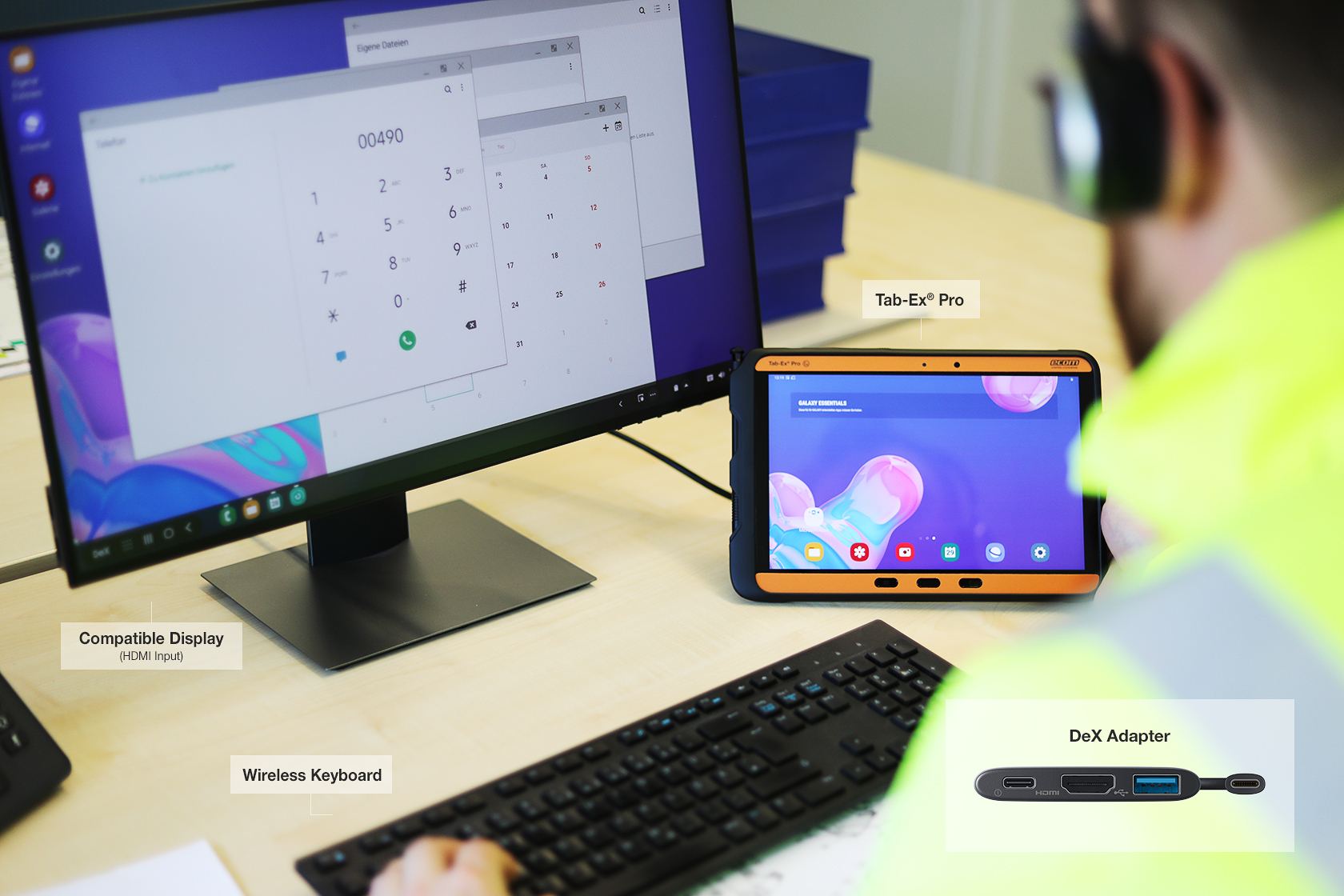

The Ecom Tab-Ex Pro DZ2 features a large display which is ideal for demanding applications as well as for accessing web-based content. In addition, it allows employees to easily transition from working in the field to working at the office. Supported by Samsung DeX, the tablet allows a full desktop experience.

Ecom Tab-Ex Pro’s 10-inch screen is ideal for displaying interactive, web-based, and augmented reality content and apps, even in hazardous areas. Additionally, the multi-touch display offers good readability in direct sunlight. The tablet can be operated with gloves as well as the Samsung S Pen. The Tab-Ex Pro is lightweight and easy to use despite its large screen and rugged construction.

The combination of Samsung Knox and the Google Android operating system guarantee high data and device security. The multi-layered Knox security measures also provide baseline protection against malware, privacy hacks and other threats.

Additionally, the Knox-certified device supports biometric authentication via facial recognition or fingerprint scan (only for D2 version).

ATEX Tablet Zone 2/ Zone 22 & Div 2 Hazardous Area – Ecom TAB-EX PRO DZ2 Android Tablet

ATEX Tablet Ecom TAB-Ex Pro DZ2

Features

Ecom Tab-Ex Pro DZ2 tablet provides safe mobile communications for hazardous area workers:

Based on Samsung’s state-of-the-art Galaxy Tab Active Pro: Proven quality, compatibility and long-term partnership
Reliable security update plan
Programmable key (“red button”) – e.g. for emergency calls
Designed for extreme temperatures from -20 … +55 °C. Suitable for a wide range of industrial applications – worldwide
IP68: Water and dust resistant
MIL-STD810H certified
Also available as Division 2 version – Contact T&D for information

ATEX Tablet ECOM TAB-EX Pro DZ2

Technical Data

Ecom TAB-Ex Pro DZ2 ATEX Tablet
Operating System	Android™
Applications	Google ARCore, Samsung Knox
Processor	Qualcomm SDM670 Octa-Core 64 bit 2.0 GHz, 1.7 GHz
Memory and Storage	RAM: 4 GB, internal data memory: 64 GB, with external microSD up to 512 GB
Display	1920 x 1200 pixels (WUXGA), 10.1″ (25.6 cm), TFT, 480 Nit brightness; Operation also possible with gloves / in wet conditions
Sensors	Accelerometer, barometer, fingerprint sensor (D2 device only), gyroscope, geomagnetic sensor, Hall effect sensor, RGB light sensor, proximity sensor
Connectivity	LTE; Wi-Fi 802.11 a/b/g/n/ac (2.4 GHz+5 GHz), VHT80 Bluetooth® v5.0 (LE up to 2 MBit/s) Wi-Fi Direct NFC EMV L1 Headphone Out: 3.5 mm USB 3.1 Type-C Pogo pin (for charging, data transfer, and USB signal for keyboard)
Operating Temperature	-20 … +55 °C
Camera	Rear: 13 MP with flash; Front: 8 MP
Degree of Protection	IP64 according to EN/IEC 60079-0 (ATEX/ IECEx) IP68* according to EN/IEC 60259 (industrial standard) and MIL-STD-810H *IP68 is based on test conditions for submersion in up to 1.5 meters of freshwater for up to 30 minutes. Not advised for beach or pool use. Water or dust damage not covered by warranty.
Weight	approx. 850 g (D2), 930 g (DZ2)
Dimensions (W x H x D)	243.5 x 170.2 x 9.9 mm
Battery	Li-Ion Battery 3.8 V / 7400 mAh / 28.12 WH / Runtime of up to 15 hours + Battery is replaceable
Scope of Delivery	Tablet Tab-Ex® Pro incl. battery Stylus S Pen S Pen Tips & Tweezers Protective Ex-Cover Charger USB Cable Documentation SD Card (optional / depends on configuration) WWAN (optional / depends on configuration)

Tab-Ex® Pro DZ2 – 10.1" (25,6 cm) Android Tablet for Zone 2/22 & DIV 2 ZONE 2/22 DIVISION 2

Ecom Tab-Ex Pro DZ2 | 10.1″ Android Tablet for Zone 2/22 & DIV 2

Hazardous Area INTERNATIONAL Certifications

Ecom TAB-Ex 02 DZ2 tablet is certified to most international hazardous area certification bodies:

ATEX (Europe)

II 3G Ex ic IIC T5 Gc
II 3D Ex ic IIIB T80°C Dc

IECEx (International)

Ex ic IIC T5 Gc
Ex ic IIIB T80°C Dc

SGS

Class I, Division 2, Groups A,B,C,D T5
Class I, Zone 2, Group IIC, T5
Ta = -20 °C to +55 °C

Ecom TAB-EX 02 ATEX Tablet

T&D are Main Distributors for the complete range of Ecom Hazardous Area Mobile Communications & Computers – this includes mobile smartphones, tablets and handheld computers.

Ecom Smart-Ex Hazardous Area Mobile & Smart Phones – Safe Working In Explosive Atmospheres

Ecom Mobile Communications

Ecom (a Pepperl & Fuchs brand) are responsible for protecting people, places and equipment in the most challenging of workplaces anywhere in the world. Typical applications and industries for Ecom hazardous area equipment include the global oil and gas industry, petrochemical plants, mining and underground processes.
