Constant Wattage heat tracing Cables
Industrial Heat Tracing Cable | Eltherm ELP/FEP
Eltherm ELP/FEP constant wattage heat tracing cables provide process temperature maintenance and frost protection to pipework, instrument lines, tanks and drums up to 200° Celsius.
These heat tracing cables manufactured by Eltherm offer flexibility in use as they can easily be cut to the required length off the roll, with the assurance of constant power output. There is no need for connecting cable and input can be unilateral. The constant wattage heat tracing cable is quick and easy to assemble, saving time and reducing operating costs.
Since the trace heater cable output of up to 60 W/m is possible for lengths laid to piping, Eltherm ELP/FEP heat tracing cables are particularly suited for piping with high output requirements such as in industrial process technology. The following are applications are below:
- Chemistry & Petrochemistry
- Building Construction
- Food Processing Industry
- Paper Industry
- Process Industries

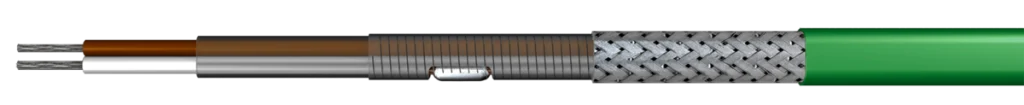

Eltherm ELP/FEP Constant Wattage Heat Tracing Cable | Constant Wattage Process Temperature Maintenance

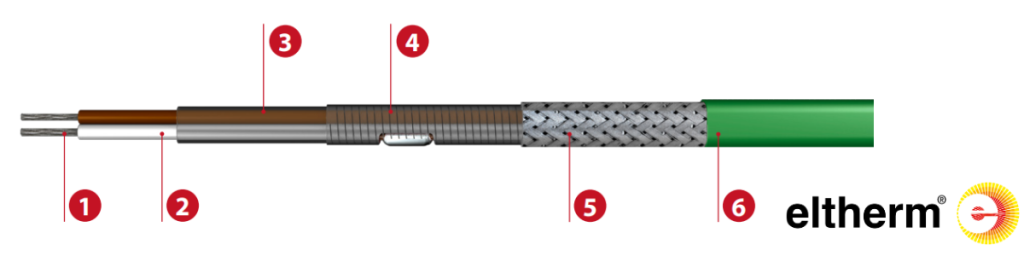

- Bus wire: Copper
- 1st insulation: Fluoropolymer
- Heating conductor: Heating conductor alloy
- 2nd insulation: Fluoropolymer
- Protective braid: Copper, nickel-plated
- Outer jacket: Fluoropolymer
Eltherm ELP/FEP Heating Cable Benefits
- Single end power input
- Trace heating cable can be cut from the cable drum
- Constant power output per meter
- Long life cycle
- Laying without exact measuring possible
- High chemical resistance
- UV resistance heating cables
- Moisture proof

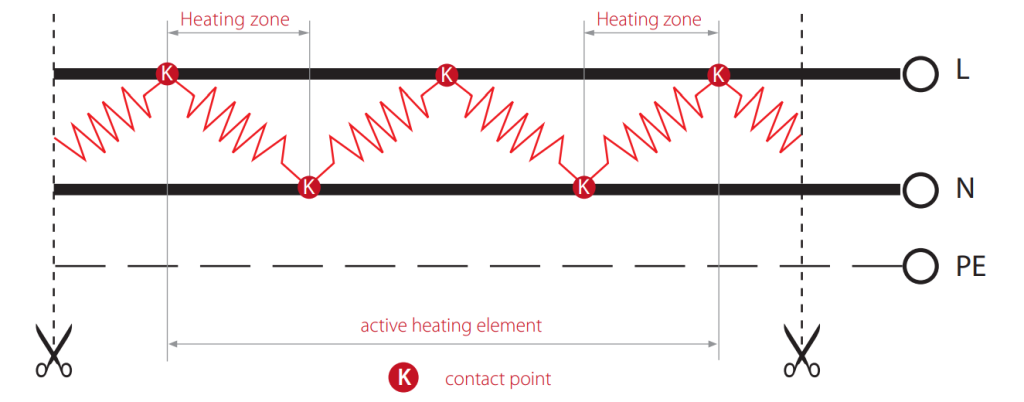

Constant wattage heating cables such as the ELP/FEP consist of a succession of heating zones (length = contact spacing) and can be cut to length in sections of the contact distance to the required length – when cutting heater cables into lengths, the heating circuit is interrupted up to the next contact point and this non-active part can be used as a cold lead.
Heat tracing cable selection table – eltherm elp/FEP
Contact T&D for technical guidance, heat loss calculations for pipework systems and optimum specification of the correct trace heater cable for your application.
| Eltherm ELP/FEP Heater Cable | Nominal Output | Working Temp Max | Dimensions (mm) | Contact Spacing (m) | Cable Application |
| ELP/FEP 15 BO | 15 w/m | 195ºC | 8.0 x 5.5 | 1.0 | Frost Protection & Process Heating |
| ELP/FEP 30 BO | 30 w/m | 180ºC | 8.0 x 5.5 | 1.0 | Frost Protection & Process Heating |
| ELP/FEP 45 BO | 45 w/m | 165ºC | 8.0 x 5.5 | 1.0 | Frost Protection & Process Heating |
| ELP/FEP 60 BO | 60 w/m | 150ºC | 8.0 x 5.5 | 1.0 | Frost Protection & Process Heating |
* The maximum maintain temperature depends on the respective installation situation and must be considered on a case-to-case basis.
CONSTANT WATTAGE HEATING CABLES
Constant wattage heating cables consist of a succession of heating zones (length = contact spacing) and can be cut to length in sections of the contact distance to the required length – when cutting heater cables into lengths, the heating circuit is interrupted up to the next contact point and this non-active part can be used as a cold lead.
Constant wattage heater cable when installed onto pipework for frost protection or process temperature maintenance must not intersect, contact or overlap to prevent overheating.
Self-regulating heating cables can be overlapped without risk of burn-out or overheating.
