Industrial Heat Tracing Cable | Eltherm ELP/Si-F

Eltherm ELP/Si-F constant wattage heat tracing cables provide process temperature maintenance and frost protection to pipework, instrument lines, tanks and drums up to 200° Celsius.

These heat tracing cables manufactured by Eltherm offer flexibility in use as they can easily be cut to the required length off the roll, with the assurance of constant power output. There is no need for connecting cable and input can be unilateral. The constant wattage heat tracing cable is quick and easy to assemble, saving time and reducing operating costs.

Since the trace heater cable output of up to 40 W/m is possible for lengths laid to piping, Eltherm ELP/Si-F heat tracing cables are particularly suited for piping with high output requirements such as in industrial process technology. The following are applications are below:

• Chemistry & Petrochemistry
• Building Construction
• Food Processing Industry
• Paper Industry
• Process Industries

---

Heat tracing cables

SPECIFICATION

Eltherm ELP/Si-F Process Heat Tracing Cable wattages per metre – 20, 30 and 40 watts.

• Nominal Supply Voltage : 230v AC/DC or 400V AC/C
• Dimensions: B version – 6.5 x 10.5, BOT version – 7 x 10.5mm
• Permissible Ambient Temperature : -70 to +200ºC
• Minimum Installation & Start-Up Temperature : -70° Celsius
• Minimum Heater Cable Bend Radius : 30mm
• Insulation: Silicone
• Constant Wattage Cable Outer Jacket: B version – Silicone, BOT version – Fluoropolymer
• Protective Braid: Copper / Zinc
• Bus Wire Cross Section: 2mm²

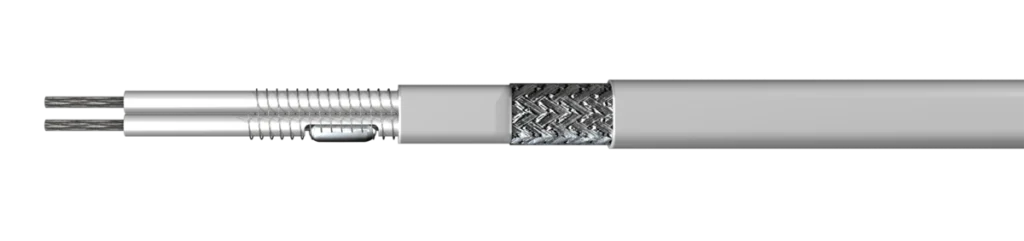

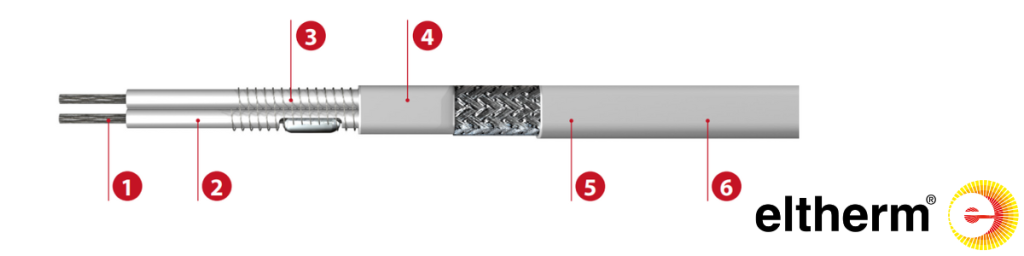

1. Bus wire: Copper
2. 1st insulation: Silicone
3. Heating conductor: Heating conductor alloy
4. 2nd insulation: Silicone
5. Protective braid: Copper, nickel-plated
6. Outer jacket: Silicone (ELP/Si F xx B), Fluoropolymer (BOT)

---

Eltherm ELP/Si – F Heating Cable Benefits

• Single end power input
• Trace heating cable can be cut from the cable drum
• Constant power output per meter
• Long life cycle
• Laying without exact measuring possible
• High chemical resistance
• UV resistance heating cables
• Moisture proof

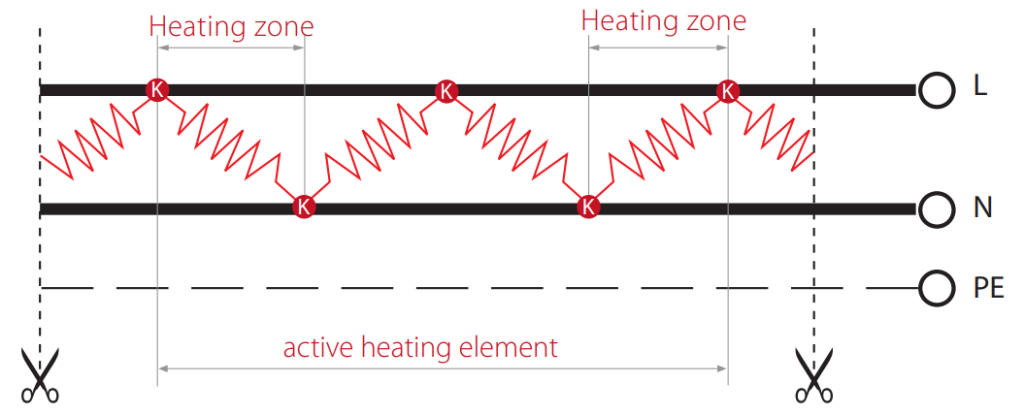

Constant wattage heating cables such as the ELP/Si consist of a succession of heating zones (length = contact spacing) and can be cut to length in sections of the contact distance to the required length – when cutting heater cables into lengths, the heating circuit is interrupted up to the next contact point and this non-active part can be used as a cold lead.

---

Heat tracing cable selection table – eltherm elp/si-F

Contact T&D for technical guidance, heat loss calculations for pipework systems and optimum specification of the correct trace heater cable for your application.

Eltherm ELP/Si -F Heater Cable	Nominal Output (w/m)	Contact Spacing (m)	Length (m) at 10ºC	Length (m) at 100ºC	Maximum Maintenance Temperature ºC	Nominal Voltage (V)	Cable Application
ELP/Si F 20 B	20	0.7	147	141	150	230	Frost Protection & Process Heating
ELP/Si F 30 B	30	0.7	98	98	140	230	Frost Protection & Process Heating
ELP/Si F 40 B	40	0.6	73.5	73.5	120	230	Frost Protection & Process Heating
ELP/Si F 40 B	40	1.0	128	128	120	400	Frost Protection & Process Heating
ELP/Si F 20 BOT	20	0.7	147	141	150	230	Frost Protection & Process Heating
ELP/Si F 30 BOT	30	0.7	98	98	140	230	Frost Protection & Process Heating
ELP/Si F 40 BOT	40	0.6	73.5	73.5	120	230	Frost Protection & Process Heating
ELP/Si F 40 BOT	40	1.0	128	128	120	400	Frost Protection & Process Heating

* The maximum maintain temperature depends on the respective installation situation and must be considered on a case-to-case basis.

---

CONSTANT WATTAGE HEATING CABLES

Constant wattage heating cables consist of a succession of heating zones (length = contact spacing) and can be cut to length in sections of the contact distance to the required length – when cutting heater cables into lengths, the heating circuit is interrupted up to the next contact point and this non-active part can be used as a cold lead.

Constant wattage heater cable when installed onto pipework for frost protection or process temperature maintenance must not intersect, contact or overlap to prevent overheating.

Self-regulating heating cables can be overlapped without risk of burn-out or overheating.
