Eltherm ELW-GN resistance heating tapes and cables provide process temperature maintenance and frost protection to sensitive surfaces in non-corrosive environments such as laboratory apparatus, appliances and systems up to 260° Celsius.
Please Note: This product has been discontinued. Please Contact Thorne & Derrick for an alternative!

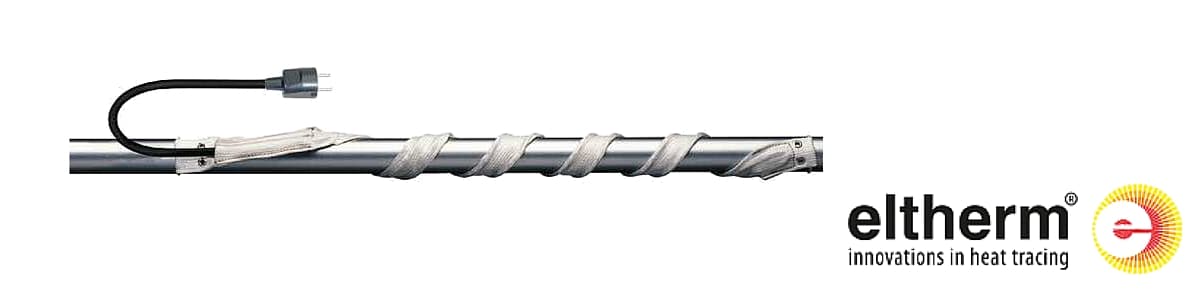

Heating tape – ELTHERM ELW-GN
SPECIFICATION
- Nominal Supply Voltage : 230V
- Maximum Output : 50 w/m
- Maximum Operating Temperature : 260ºC
- Minimum Installation Temperature : -60° Celsius
- Dimensions:: 25 x 6mm
- Minimum Heater Cable Bend Radius (Flat) : 10mm
- Insulation : PTFE
- Protective Braid: Nickel-plated Copper
- Outer Jacket: E-Glass Textile
- Cold Lead Length (Both Ends) : 1.2m without plug
- Moisture Proof : Yes
- Protection Class: I
- Manufactured According To : DIN VDE 0253
- Final Inspection According To: DIN VDE 0721 T 411, 2.5kV AC – 1 min
- Heating Cable Type : Resistance heating tape
Eltherm ELW-GN Heater Cable – Resistance Heating Process Temperature Maintenance
Trace Heating tape- Eltherm ELW-GN
SELECTION TABLE
Contact T&D for technical guidance, heat loss calculations for pipework systems and optimum specification of the correct trace heater cable for your application.
Resistance heating tape application : frost protection and process heating.
| Eltherm ELW-GN Part Number | Heated Length (m) | Nominal Output (W) Temperature Max 100ºC | Nominal Output (W) Temperature Max 150ºC | Nominal Output (W) Temperature Max 200ºC |
| ELW-GN 0.6 | 0.6 | 30 | – | – |
| ELW-GN 1.1 | 1.1 | 54 | – | – |
| ELW-GN 1.7 | 1.7 | 78 | 52 | 26 |
| ELW-GN 2.4 | 2.4 | 94 | 69 | 37 |
| ELW-GN 3.0 | 3.0 | 147 | 88 | 37 |
| ELW-GN 4.2 | 4.2 | 210 | 126 | 63 |
| ELW-GN 5.4 | 5.4 | 245 | 163 | 82 |
| ELW-GN 6.0 | 6.0 | 294 | 176 | 88 |
| ELW-GN 7.0 | 7.0 | 344 | – | – |
| ELW-GN 10.0 | 10.0 | 464 | 294 | – |
| ELW-GN 12.5 | 12.5 | 623 | 371 | 192 |
| ELW-GN 15.0 | 30.0 | 705 | 441 | 220 |
| ELW-GN 17.5 | 17.5 | 864 | 521 | – |
| ELW-GN 21.0 | 21.0 | 1.008 | 611 | 315 |
| ELW-GN 28.0 | 28.0 | 1.390 | 756 | 378 |
Other lengths of ELW-GN resistance heating cables are available upon request.
Resistance Tolerance: +/- 5%
All output figures are nominal values at +20ºC
Lengths tolerance ± 2%, max ± 0.25m
Eltherm ELW-GN – Applications
- Heat tracing on apparatus, appliances and systems
- Devices and systems made of glass with sensitive surfaces
- Laboratory applications
Eltherm ELW-GN heating cables provide temperature maintenance and frost protection to pipework and mechanical services in all industries – typical applications include industrial and hazardous area heating of process pipework, instrument lines and storage tanks to maintain viscosity or prevent frost damage as an integral work-task of plant Winterisation.
Read our Blog about the benefits of heat trace tape and please contact us to discuss your requirements for frost protection or temperature maintenance heating of pipework and mechanical services.
T&D provide value-added design services for process heating using trace heating cables and systems. Heating cables using constant wattage, self-regulating, mineral insulated and resistance heating technology provide frost protection and temperature maintenance to pipework, drums, tanks, IBC’s and valves.
RESISTANCE HEATING CABLES
Eltherm resistance heating cables are manufactured from a high-resistance heating conductor, PTFE insulated with protective braid and fluoropolymer outer jacket. Powered at specific voltage the resistance heat generated by the conductors provides electrical trace heating to pipes and vessels. Resistance heating cables will “burn-out” if overlapped unlike self-regulating trace heating cables.
High temperature resistance heating cables insulated with glass fibre provide electrical heating up to 800° Celsius.
