EXHEAT FXT-M-20

Inline Encapsulated Thermostats

EXHEAT FXT-M-20 inline encapsulated thermostats have been established as a temperature control solution where space is minimal. With the capability to change small and medium sized heaters to maintain an ambient temperature in explosive atmospheres.

These thermostats are ideal for heating and air warming in hazardous areas where the atmosphere is classified as Zone 1 or 2 (Gas groups IIA, IIB, IIC) and Zone 21 or 22 (Dust groups IIIA, IIIB, IIIC).

The FXT-M range is composed of a unique electronic potting compound, stainless steel shroud and polyolefin sheath. Robust and lightweight in design a main benefit of the thermostat is it requires minimal maintenance.

Similar to the FXT-DR and FXT-DI thermostats the FXT-M can be used with the FX hazardous area compact enclosure heaters designed specifically for frost protection, anti-condensation and temperature control. Capable of operating in ambient temperatures up to +80°C.

Alternatively, when supplied with up to 10 metres of cable, the thermostat can be installed to control any electrical item inside a cabinet or enclosure.

➡ View our complete range of ATEX Certified Junction Boxes & Enclosures

Exheat FXT-M-20 Thermostats

specification

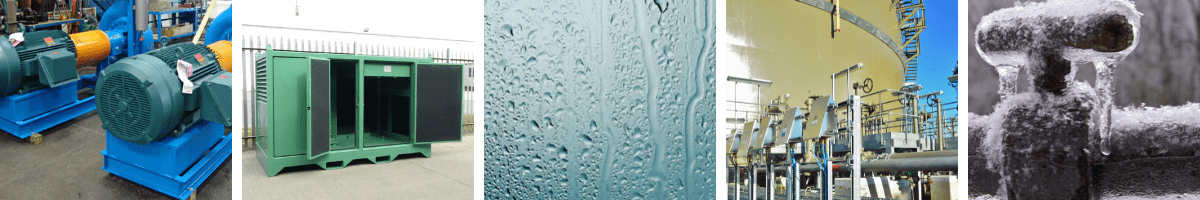

Typical applications for the FX- range of heaters and thermostats include:

• Condensation prevention
• Control or monitoring panels
• Fire hose cabinets
• Generators
• Manifolds
• Acoustic enclosures
• Control valve housings
• Frost protection
• Instrumentation cabinets
• Motor enclosures or cabinets
• Valve blocks

EXHEAT Part Number	Open / Close Temperature (+/-3°C)	Voltage	Maximum Current	Temperature Class	Maximum Ambient	Weight
FXT-M-20	26°C / 15°C	110-120V 220-240V 254-277V	6.0 A 3.3 A 4.8 A	T6 T5	60°C 80°C	0.1kg

➡ Thorne & Derrick International, are UK stockists for the Raytec SPARTAN range of ATEX Lighting for Hazardous Areas – we can design and deliver your upgraded lighting system from fluorescent to LED technology, contact us with your requirement.



T&D – Experts in Equipment for Explosive Atmospheres

Trust Thorne & Derrick to specify and supply from stock safe and reliable Heat, Light & Power Products for use in hazardous area locations and explosive atmospheres certified to international standards including ATEX and IECEx – this includes Zone 1 / Zone 2 (Flammable Gas) or Zone 21 / Zone 22 (Dusts) and Class I, Division 1 and Division 2 hazardous area requirements.

Since 1985 as Leaders in ATEX Innovation we can facilitate succession planning for the replacement of obsolete, non-conformant and legacy equipment – we are the provider of innovative solutions to ensure ATEX and IECEx Compliance for Electrical, HVAC & Process Instrumentation systems in the explosive atmosphere industries.



Data Sheets

• EXHEAT FXT-M Inline Encapsulated Thermostats – Data Sheet
  Download
