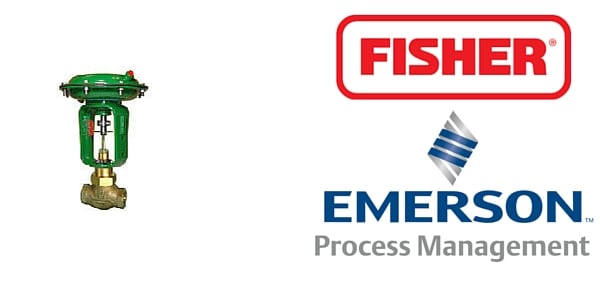

Fisher Baumann 24000 Universal Globe Valve is part of the sliding stem valve range that is well suited for general utility applications where pressure, flow and temperature controls are required.
The Baumann 24000 boasts good control characteristics, tight shutoff, rugged construction, high performance packing, and easy maintainability.
The 24000 universal globe valve is therefore able to offer reduced maintenance costs, reduced process variability, and increased process availability, resulting in lower long-term operating costs.
Fisher Baumann 24000 Universal Globe Valve
Product Features
- Compact and lightweight design reduces installed piping design
- High quality type 316 austenitic stainless steel trim materials
- 416 stainless steel trim available
- Superior dual plug and stem guiding provides increased stability during plug travel
- Multiple trim capacity reductions available to meet changing process requirements
- Epoxy powder coated actuator with stainless steel fasteners for corrosion resistance
- Multi-spring, field reversible actuator with reduced deadband, permits direct operation from remote signal devices
- Entire actuator and yoke can be removed from the valve assembly while maintaining packing integrity
- Fisher® FIELDVUE™ Digital Valve Controller available for remote calibration and diagnostics in facilities utilizing the PlantWeb™ architecture
FISHER BAUMANNÂ 24000 UNIVERSAL GLOBE VALVE
PRODUCT Specification
| Sizes | NPS 1/2, 3/4, 1, 1-1/2, 2 |
| Connections | NPT threaded |
| Body Material | Bronze |
| Valve Body Rating | 400 psig @ 150ºF/250 psig @ 400ºF (Meets ASME B16.15 CL250) |
| Trim Material | 316 SS with optional PTFE insert |
| Trim Characteristic | Equal % or Linear |
| Seat Leakage | ANSI/FCI 70-2 Class IV or VI |
| Cv Ratings | 0.2 to 50 |
| Bonnet Type | Standard threaded |
| Packing Material | PTFE V-ring, PTFE ENVIRO-SEALâ„¢, or Graphite |
| Temperature Range | -29ºC to 204ºC (-20ºF to 400ºF) |
Fisher Baumann 24000 Universal Globe Valve – Valve Body
FISHERÂ BAUMANN 24000 Universal globe VALVE

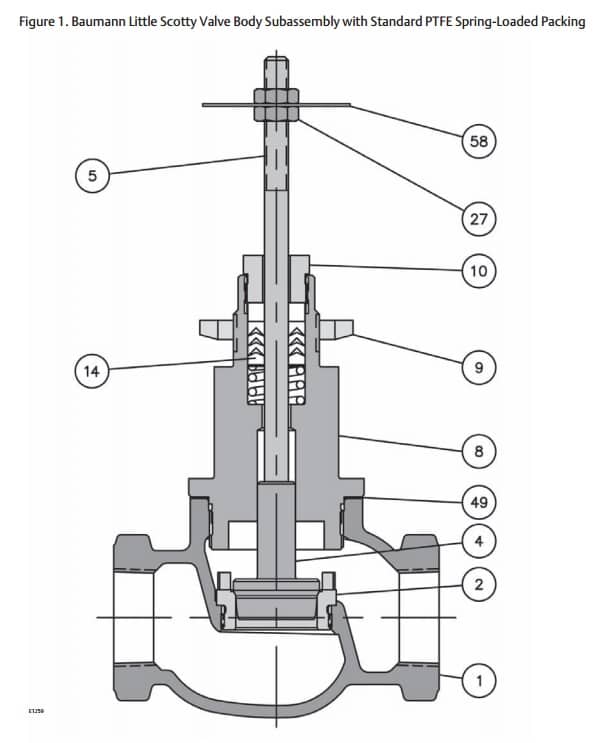

Materials of construction
| Key No | Description | Material | |
| 1 | Valve Body | ASTM B62 Grade C83600 | |
| 2 | Seat Ring | Standard | ASTM A276 S31600/ S31603 Dual Certified |
| Optional | ASTM A582 S41600 Condition T | ||
| 4 | Plug (Metal Seat) Cv < 2.5 | Standard | ASME SA479 S21800 |
| Optional | ASTM A582 S41600 Condition T | ||
| Plug (Metal Seat) Cv > 4.0 | Standard | ASTM A276 S31600/ S31603 | |
| Optional | ASTM A582 S41600 Condition T | ||
| Plug (Soft Seat) | ASTM A276 S31600/ S31603 with PTFE (Polytetrafluoroethylene) insert | ||
| 5 | Stem | ASTM A276 S31600 | |
| 8 | Bonnet | ASTM B148 Alloy C95500 | |
| 9 | Drive Nut (Yoke) | S30400 | |
| 10 | Packing Follower | ASTM A276 S31600/ S31603 Dual Certified | |
| 14 | Packing | Standard | V-Ring, see figure 2 on data sheet |
| Optional | Molded Graphite, see figure 3 on data sheet | ||
| 27 | Locknuts | Stainless Steel (18-8 SST) | |
| 49 | Body Gasket | Standard | Annealed Soft Copper |
| Optional | Graphite Grade GHR with S31600 Insert | ||
| 58 | Travel Indicator | ASME SA240 S30400 | |
