Fisher Baumann 24000S Universal Globe Valve – Sliding Stem Valves

Fisher Baumann 24000S Universal Globe Valve is part of the sliding stem valve range that is suitable for mildly corrosive applications and can be used for the control of pressure, temperature, level and flow.

The Baumann 24000S has a stainless steel valve body suited for use with mildly corrosive fluids and can be used also in applications where carbon steel is usually specified.

NPS 1/2 through 2 valves are available with NPT end connections and the NPS 3 is available as wafer style only.

Fisher Baumann 24000S Universal Globe Valve

Product Features

Compact and light weight design reduces installed piping costs
End connection options are available to meet your piping standards
Superior dual stem and plug guiding provides increased stability during plug travel
High quality type 316 stainless steel trim materials; 416 stainless steel trim available
Multiple trim capacity reductions available to meet changing process requirements
Epoxy powder coated actuator with stainless steel fasteners for corrosion resistance
Multi-spring field reversible actuator with reduced deadband permits direct operation from remote signal devices
Entire actuator and yoke can be removed
from the valve assembly while maintaining packing integrity
FIELDVUE™ Digital Valve Controllers available for remote calibration and diagnostics in facilities utilizing the PlantWeb™ architecture
The DVC2000 Digital Valve Controller has a local user interface that includes a liquid crystal display and four push buttons for menu navigation
NOLEEK^™ Bellows Bonnet and single through triple extension bonnets are available

FISHER BAUMANN 24000S UNIVERSAL GLOBE VALVE

PRODUCT Specification

Sizes	NPS 1/2, 1, 1-1/2, 2, 3
Connections	NPT threaded (3″ size is flangeless)/Buttweld
Body Material	316 SS
Valve Body Rating	CL300 (NPS 3 is CL150 only)
Trim Material	316 SS with optional PTFE insert
Trim Characteristic	Equal % or Linear
Seat Leakage	ANSI/FCI 70-2 Class IV or VI
Cv Ratings	0.0005 to 61
Bonnet Type	Standard bolted, extensions, and bellows seal
Packing Material	PTFE V-ring, or Graphite
Temperature Range	-195ºC to 537ºC (-320ºF to 1000ºF)

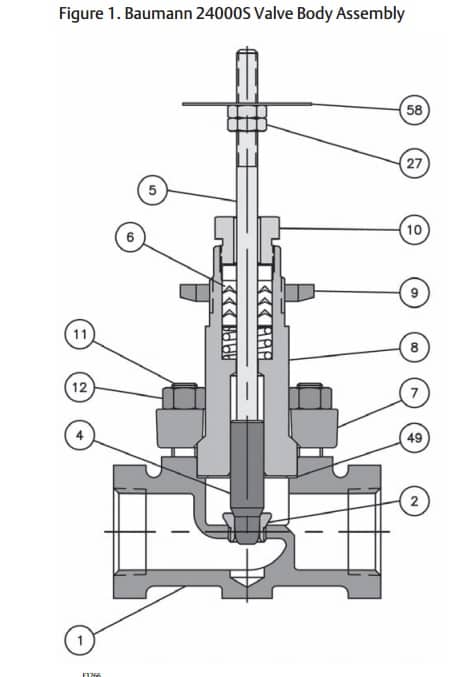

Fisher Baumann 24000S Universal Globe Valve – Valve Body

FISHER BAUMANN 24000S Universal globe VALVE

Materials of construction

Key No	Description			Material
1	Valve Body			ASME SA351 CF8M
2	Seat Ring			ASTM A276 S31600 / S31603 Dual Certified (used for 6.3 mm and 9.5 mm [1/4 inch and 3/8 inch] orifice diameters only)

4	Plug (Metal Seat) Cv < 2.5	Standard		ASME SA479 S21800 Annealed
		Optional		ASTM A582 S41600 Condition T
	Plug (Metal Seat) Cv > 4.0	Standard		ASTM A276 S31600 / S31603 Dual Certified
		Optional		ASTM A582 S41600 Condition T
	Plug (Soft Seat)			ASTM A276 S31600 / S31603 Dual Certified with PTFE (Polytetrafluoroethylene) Insert
5	Stem			ASTM A276 S31600 Condition A
6	Packing Set			(Refer to page 5 of data sheet)
7	Bonnet Flange	1/2 to 2 inch		ASME SA351 CF8M
		3 inch		ASME SA240 S31600 / S31603 Dual Certified
8	Bonnet		Standard	ASME SA479 S31600 / S31603 Dual Certified
			Extension	ASME SA479 S31600 / S31603 Dual Certified
			NOLEEK	ASME SA479 S31600 / S31603 Dual Certified
9	Drive Nut (Yoke)			S30400
10	Packing Follower			ASTM A276 S31600 / S31603 Dual Certified
11	Bonnet Studs (Bolt)			ASME SA193 Grade B8 Class 1
12	Bonnet Nuts			ASME SA194 Grade B8
27	Locknuts			Stainless Steel (18-8 Stainless Steel)
49	Body Gasket			Graphite Grade GHR with S31600 Insert
58	Travel Indicator			ASME SA240 S30400
