Fisher D & DA High Pressure Globe Valve – Sliding Stem Valves

Fisher D & DA High Pressure Globe Valve with single port is part of the sliding stem valve that are are used in oil and gas production industries for either throttling or on/off control of liquids or gases which are gritty, sticky, or which have a tendency to build up on internal valve parts.

The DA valve is also useful in angle piping or other applications where a self-draining valve is desired.

The Fisher D & DA body and end connection constructions are available for API as well as ASME standards. Trim and bolting materials are available for applications handling sour fluids and gases.

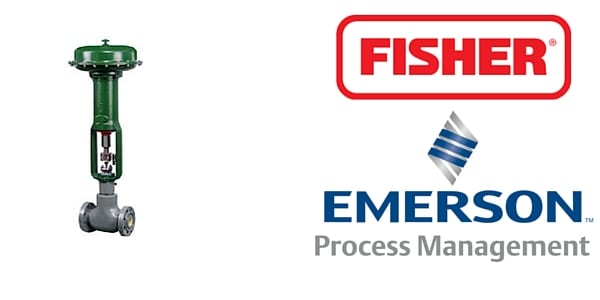

Fisher D & DA High Pressure Globe Valve

Product Features

Heavy-Duty Construction—Massive guiding positively aligns the valve plug in the seat ring for high pressure drop applications. The screwed-in seat ring completely encloses the seat ring gasket.
Easy Maintenance—Screwed bonnet/body joint allows repair or maintenance with a minimum of tools.
Severe Service Capability—Valve is available with VTC (ceramic) trim for service in very erosive applications. The valve plug is also available with a tungsten carbide tip and the seat ring can be fitted with a full-bore tungsten carbide insert for erosive service.
Meets Variety of Specifications—Valve body and end connection constructions are available for API as well as ASME standards.
NACE Trim Standard—NACE trim and bolting materials are standard for all applications. These materials comply with the requirements of NACE MR0175-2002

Fisher D & DA High Pressure Globe Valve – Sliding Stem Valves

Fisher D & DA HIGH PRESSURE GLOBE VALVE

product Specifications

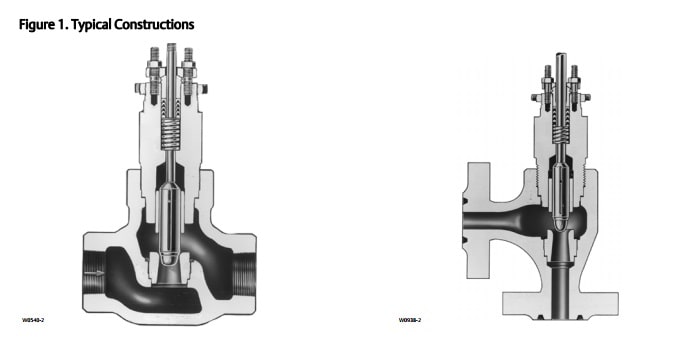

Available Configurations	D: Globe valve with screwed-on bonnet, unbalanced post-guided valve plug, screwed-in seat ring, metal seat construction, and push-down-to-close valve plug action DA: Same as D valve except in angle configuration
Maximum Allowable Pressure Drops(1)	Flow up: Capable of full rated pressure drops Flow down: See data sheet for pressure drop limits for ceramic trim
Shutoff Classification per ANSI/FCI 70-2 and IEC 60534-4	Standard: Class IV leakage Optional: Class V
Material Temperature Capabilities	-46 to 232°C (-50 to 450°F)
Construction Materials	Body, Bonnet, and Trim: See table 4 Packing: Standard: J Single or J double PTFE V-ring packing for pressure service Optional: Double PTFE/Composition Standard Gaskets: S31600 (316 SST)
Flow Characteristic	3.9 mms (0.15 inch/s) at 24VDC 2.2 mm/s (0.09 inch/s) at 12VDC
Flow Direction	D: Flow up (through seat ring and past valve plug) DA: J Flow up (through seat ring and past valve plug) or J flow down (past valve plug and through seat ring)
Approximate Weights	NPS 1: 34 kg (75 pounds) NPS 2: 45 kg (100 pounds)
Options	J Lubricator/isolating valve J VTC (ceramic) Trim with equal percentage characteristic (not available with Micro-Flute trim) J Tungsten Carbide trim (not available with Micro-Flute trim)

1. The pressure/temperature limits in this bulletin and in any applicable standard limitations should not be exceeded
