Fisher D2T FloPro High Pressure Globe Valve – Sliding Stem Valves
Fisher D2T FloPro High Pressure Globe Valve – Sliding Stem Valves
Fisher D2T FloPro High Pressure Globe Valve is part of the sliding stem valve range that are compact and rugged designed with on/off control. The Fisher D2T FloPro is ideal for applications in power refining, hydrocarbon, chemical and other industries.
D2T FloPro is ideal for use as a dump valve on gas separators and scrubbers.

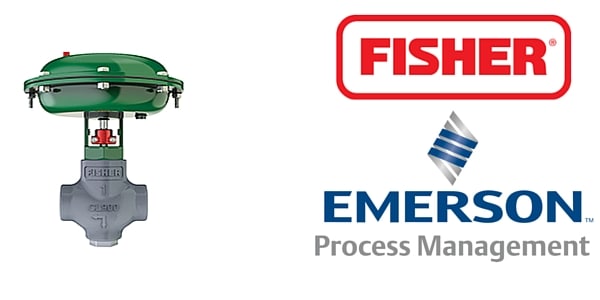

Fisher D2T FloPro High Pressure Globe Valve
Product Features
- 1 NPT end connections
- CL900 (2250 psig) pressure rating
- FloPro field selectable flow rate for 1/4, 3/8, and 1/2-inch port size
- Solid Alloy-6 erosive service trim
- Full 2250 psig pressure drop capability
- NACE service ready
- ENVIRO-SEALâ„¢ D2T packing system
- Low temperature (-50°F) materials
- Field-reversible actuator
- Lightweight (17 lbs.)
- Corrosion-resistant paint

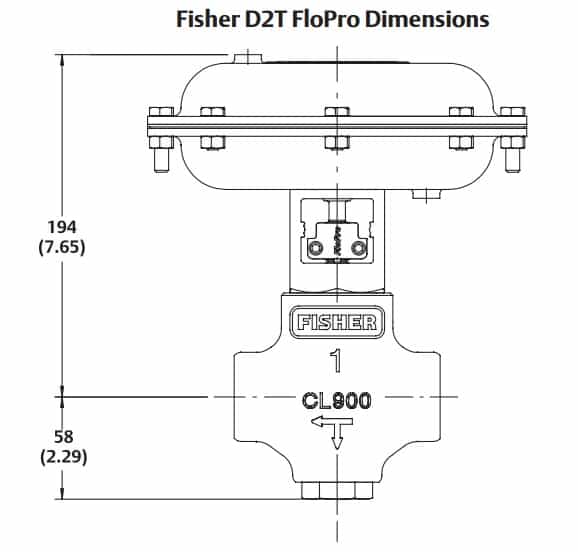

Fisher D2T FloPro High Pressure Globe Valve – Sliding Stem Valves – Dimensions
Fisher D2T FloPro High Pressure Globe Valve
PRODUCT Specification
| Field-Selectable Flow Rates | FloPro feature allows easy setting of 0.25, 0.375, and 0.5 inch flow rates, eliminating the need for more than one port size. |
| Trim Options | Valve plug and seat ring are available in S17400 double H1150, or solid R30006 (Alloy 6) for erosive service |
| ENVIRO-SEALTM D2T Packing System | ENVIRO-SEAL D2T packing system provides an improved stem seal to prevent the loss of valuable or hazardous process fluids or gases. It features live-loading, providing reduced packing maintenance |
| NACE MR0175/ISO 15156 Service- Ready | Sour service trim is the standard construction for the D2T FloPro control valve. The materials of construction meet the metalurgical requirements of NACE MR0175/ISO 15156. Environmental limits may apply |
| CL900 Service | Valve assembly is designed and specified for ASME B16.34 CL900 service |
| Low Temperature Materials | Valve and actuator construction materials allow use in low temperature applications of -46° C |
| Field-Reversible Actuator | D2T FloPro actuator can be converted in the field from Air-to-Open to Air-to-Close actuator action. (Conversion to Air-to-Close actuator action requires removing four springs from the actuator casing configuration.) (Conversion to Air-to-Open actuator action requires adding four springs to the actuator casing configuration.) |
| Easy Installation | Compact design allows installation where space is at a premium |
| Easy Maintenance | Screwed bonnet/body joint allows repair or maintenance with a minimum of tools and without removing the valve body from the piping system |
