Fisher easy-e EW Universal Globe Valves – Sliding Stem Valves

Fisher easy-e EW Universal Globe Valves are part of the sliding stem valve range that have either balanced or unbalanced plugs, cage-guided trim, and feature large internal cavities with expanded end connections for all general applications with process temperatures up to 593°C (1100°F).

The easy-e EW valves are available in sizes ranging from NPS 4×2 to 24×20 where size designations are end connection size x nominal trim size. All sizes are available in pressure ratings up to CL600, with the NPS 8×6 and 12×8 sizes also available in CL900 ratings. Several globe body, sliding-stem configurations are available, including EWD, EWS, and EWT:

EWD: Balanced push-down-to-close valve for applications with process temperatures up to 593°C (1100°F)
EWS: Unbalanced push-down-to-close valve for applications with process temperatures up to 566°C (1050°F)
EWT: Balanced push-down-to-close valve for applications with process temperatures up to 316°C (600°F)

Fisher easy-e EW product range is available for a wide range of applications, including sulphide and chloride stress-cracking environments common to the oil and gas production industries.

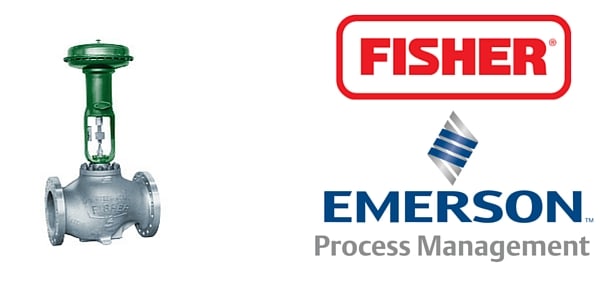

Fisher easy-e EW Universal Globe Valve

Product Features

Compliance with the Clean Air Act—ENVIRO-SEAL™ packing systems provide an improved stem seal to help prevent the loss of process fluid. The ENVIRO-SEAL packing systems feature PTFE, Graphite ULF, or Duplex packing with live loading for reduced packing maintenance
Piping Economy–Expanded end connections of EW series valve bodies may reduce the need for line swages, while accommodating oversized piping arrangements used to limit fluid flow velocities
Increased Pressure/Temperature Ratings–NPS 12×8 CL900 EW series valve bodies with buttwelding end connections are capable of increased ASME ratings, called Intermediate Standard Ratings. The extra strength of the valve body allows these valves to be used where pressures and temperatures exceed Standard Class ratings in ASME B16.34
Valve Plug Stability— Rugged cage guiding provides high valve plug stability, which reduces vibration and mechanical noise
Balanced Valve Plug Construction— EWD and EWT balanced valve plugs permit the use of smaller, lower-cost Fisher actuators
More Flow Capacity for Initial Investment— Streamlined flow passages provide excellent capacities and flow
Compliance with European Standards— NPS 4×2 to 12×8 valves are available with dimensions specified by EN/DIN standards
Sour Service Capability—Materials are available to meet NACE standards
Operating Economy—Increased wear resistance provided by standard, hardened stainless steel trim means long service life
Maintenance Economy—Trim inventory costs are cut because dimensional standardization permits use of most standard easy-e trim parts. During removal of trim parts, the valve body can stay in the pipeline

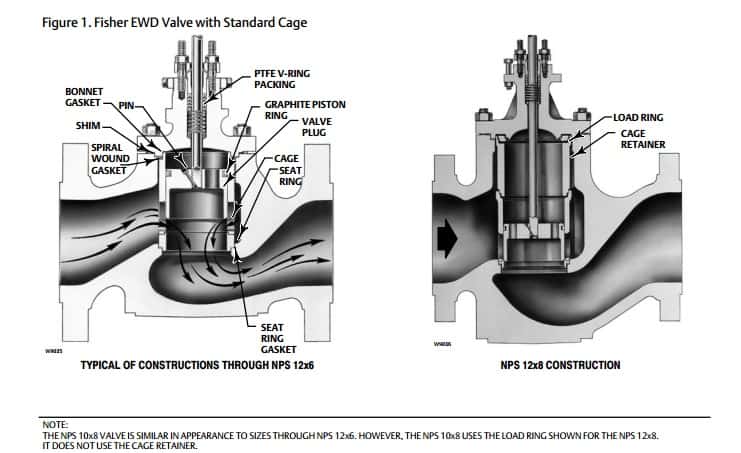

Fisher easy-e EW Universal Globe Valves – Valve Detail

FISHER easy-e EW UNIVERSAL GLOBE VALVE

PRODUCT Specification

End Connection Styles	Flanged: CL150, 300, 600, and 900 raised-face or ring-type joint flanges per ASME B16.5, raised-face per EN 1092-1/B Buttwelding: Styles per ASME B16.25 schedules that are consistent with ASME B16.34 are Schedule 40 or 80 for all CL300 and 600 valves, Schedule 80 or XXS for NPS 8×6 CL900 valves, or Schedule 80, 100, or 120 for NPS 12×8 CL900 valves
Maximum Inlet Pressure and Temperature(1)	Consistent with applicable CL300, 600(2), or 900 pressure/temperature ratings per ASME B16.34 unless limited as follows: Valves With All Except Cavitrol III or Whisper Trim III Cages: Where limited by individual pressure/temperature capabilities in figure 8 or 9 or temperature capabilities in table 11, 12, 13, or 20. see data sheet Valves With Cavitrol III Cages: Where limited by individual pressure/temperature capabilities in figure 12 see data sheet or temperature capabilities in table 16 or 20 see data sheet Valves With Whisper Trim III Cages: Where limited by individual pressure/temperature capabilities in figure 15 or 16 see data sheet or temperature capabilities in table 18 or 20 see data sheet
Maximum Pressure Drops(1, 3)	Valves With All Except Cavitrol III or Whisper Trim III Cages: See figure 8 or 9 Valves With Cavitrol III Cages: See figure 12 Valves With Whisper Trim III Cages: See figure 15 or 16, except where further restricted by the following max P/P1 ratio — 0.60 for level A cages, 0.75 for level B cages, 0.85 for level C cages, or 0.99 for level D cages(4)
Construction Materials	Valve, Bonnet, and Bonnet Spacer If Used: WCC carbon steel, LCC carbon steel, WC9 chrome moly steel, CF8M (316 SST), other materials upon request
Flow Characteristics	Standard Cages: Quick-opening, linear, or equal percentage Cavitrol and Whisper Trim Cages: Linear
Flow Direction	Valves with Standard Cages EWD, EWD-1, EWT, and EWT-1: Normally down(5) EWS and EWS-1: Normally up(6) Valves with Cavitrol Cages: Always down(5) Valves with Whisper Trim III Cages: Always up(6)
Options	Lubricator, lubricator/isolating valve, drilled and tapped connection in extension bonnet for leak-off service, valve body drain plug, ENVIRO-SEAL bellows seal bonnet for positive stem sealing of hard-to-handle fluids at temperatures up to 566C (1000F), style 3 fabricated extension bonnet made on order to a specific length for cryogenic service, special seismic service bonnet, packings suitable for nuclear service, and forged bonnet for 5 in. (127 mm) yoke boss on NPS 8×6 CL900 valve, Class V shutoff for EWT above 232C (450F) using PEEK anti-extrusion rings Class V shutoff for EWD up to 593C (1100F) using C-seal trim 1. T

1. The pressure/temperature limits in this bulletin and any applicable standard or code limitation should not be exceeded. 2. Certain bonnet bolting material selections may require a CL600 easy-e valve assembly to be derated. Please contact. 3. Only NPS 12×8 CL900 valve bodies with threaded (-1) seat rings can take full CL900 pressure drops; CL900 valve bodies with clamped (no dash number) seat rings are limited to CL600 pressure drops. Also, there are two different NPS 8×6 CL900 valve bodies, one for use only with Cavitrol III cages and the other for use with all other constructions. An NPS 8×6 CL900 valve body with Cavitrol III cage can take full CL900 pressure drops. For information on other NPS 8×6 constructions that can take full CL900 pressure drops, please contact All other NPS 8×6 constructions are limited to CL600 pressure drops (1440 psid flowing drop) even though installed in a CL900 valve body. 4. Restriction based on excessive noise if max P/P1 ratio for a given cage level is exceeded. 5. Down:in through cage and out through seat ring (direction shown in figure 1 see data sheet). 6. Up:in through seat ring and out through cage as shown in figure 13 see data sheet
