Fisher GX Globe Control Valve and Actuator System – Sliding Stem Valves
Fisher GX Globe Control Valve and Actuator System – Sliding Stem Valves
Fisher GX globe control valve and actuator system is part of the sliding stem valve range that is designed to control a wide range of process liquids, gases and vapours. The Fisher GX is compact, rugged and reliable in design and simple to select.
The actuator selection of the Fisher GX sliding stem valve is automatic once the valve body construction is selected. The optimised design results in reduced complexity and parts count which keeps maintenance costs low.
The GX globe control valve meets the requirements of both EN and ASME standards. It is available with a complete accessory package, including the Fisher FIELDVUE DVC2000 and FIELDVUE DVC6200 integrated digital valve controllers.
Fisher GX GLOBE Control Valve and Actuator System
Product Features
- Easy to size and select
- No actuator sizing required–selection is automatic
- Optimized actuator allows for a wide range of air supply
- Engineered for easy maintenance
- Maximum part commonality across sizes
- Replaceable trim
- Low lifetime costs
- Robust, low-profile design
- Compact multi-spring pneumatic actuator
- Available with integrated, easy-to-calibrate DVC2000 digital valve controller
- Valve body sizes DN 15 to DN 150 (NPS 1/2 through 6)
- Pressure Classes PN 10-40, CL150 and 300
- High capacity design
- Valve body flow passage optimized for flow stability
- Full range of materials, including alloys
- Shutoff capabilities: Class IV, V, and VI
- Rangeability of 50:1 (equal percentage)
- Optional metal bellows seal
Fisher GX Globe Control Valve – with NAMUR positioner mounting capability
- NAMUR is an international user association of automation technology in process industries.
FISHER GX globe Control Valve and Actuator System
PRODUCT Specification & Materials of construction
| Specifications | EN | ASME |
| Valve Body Size | DN 15, 20, 25, 40, 50, 80, 100, 150 | NPS 1/2, 3/4, 1, 1-1/2, 2, 3, 4, 6 |
| Pressure Rating | PN 10 / 16 / 25 / 40 per EN 1092-1 | CL150 / 300 per ASME B16.34 |
| End Connections | Flanged raised face per EN 1092-1 | Flanged raised face per ASME B16.5 |
| Valve Body/Bonnet Materials | 1.0619 steel | ASME SA216 WCC stee |
| 1.4409 stainless steel | ASME SA351 CF3M stainless steel | |
| CW2M (sizes DN 25 through DN 100 only) | CW2M (NPS 1 through 4 only) | |
| ASME SA352 LCC | ASME SA352 LCC | |
| ASTM A990 CN3MCu/ASME SA351 CN7M (Cast Alloy 20) (sizes DN 25 through DN 100 only) | ASTM A990 CN3MCu/ASME SA351 CN7M (Cast Alloy 20) (NPS 1 through 4 only) | |
| CD3MN Duplex SST (sizes DN 25 through DN 100 only) | CD3MN Duplex SST (NPS 1 through 4 only) | |
| CF3 304L SST (sizes DN 25 through DN 100 only) | CF3 304L SST (NPS 1 through 4 only) | |
| M35-2 (NPS 1 through 4 only) | ||
| Consistent with EN 558-1 Series 1 | N7M Alloy B2 (NPS 1 through 4 only) | |
| Face-to-Face Dimensions | Consistent with ANSI/ISA 75.08.01 | |
| Long Face-to-Face Dimensions | Consistent with ANSI/ISA 75.08.07 | |
| Shutoff per IEC 60534-4 and ANSI/FCI 70-2 | Metal seat – Class IV (standard) | |
| Metal seat – Class V (optional) | ||
| PTFE seat – Class VI (optional)(1) | ||
| Flow Direction | Flow-up (Cavitrol III trim, Flow down) | |
| Flow Control Characteristics | Equal Percentage and Linear | |
1. For 4.8 to 14 mm ports, Class VI shutoff is achieved without PTFE seat.
FISHER GX globe CONTROL VALVE AND ACTUATOR SYSTEM Availability
| Valve Size | Port Size | Stem Diameter | Travel | Actuator Size |
| mm | mm | mm | ||
| DN15 (NPS 1/2) | 9.5 | 10 | 20 | Plain |
| DN20 (NPS 3/4) | 14 | 20 | Plain | |
| 9.5 | 20 | Plain | ||
| DN25 (NPS 1) | 22 | 20 | Plain | |
| 14 | 20 | Plain | ||
| 9.5 | 20 | Plain | ||
| DN40 (NPS 1-1/2) | 36 | 20 | Plain | |
| 22 | 20 | Plain | ||
| 14 | 20 | Plain | ||
| DN50 (NPS 2) | 46 | 20 | Plain | |
| 36 | 20 | Plain | ||
| 22 | 20 | Plain | ||
| DN80 (NPS 3) | 70 | 14 | 40 | Plain |
| 46 | 20 | Plain | ||
| 36 | 20 | Plain | ||
| DN100 (NPS 4) | 90 | 40 | Plain | |
| 70 | 40 | Plain | ||
| 46 | 20 | Plain | ||
| DN150 (NPS 6) | 136 | 19 | 60 | Plain |
| 90 | 40 | Plain |

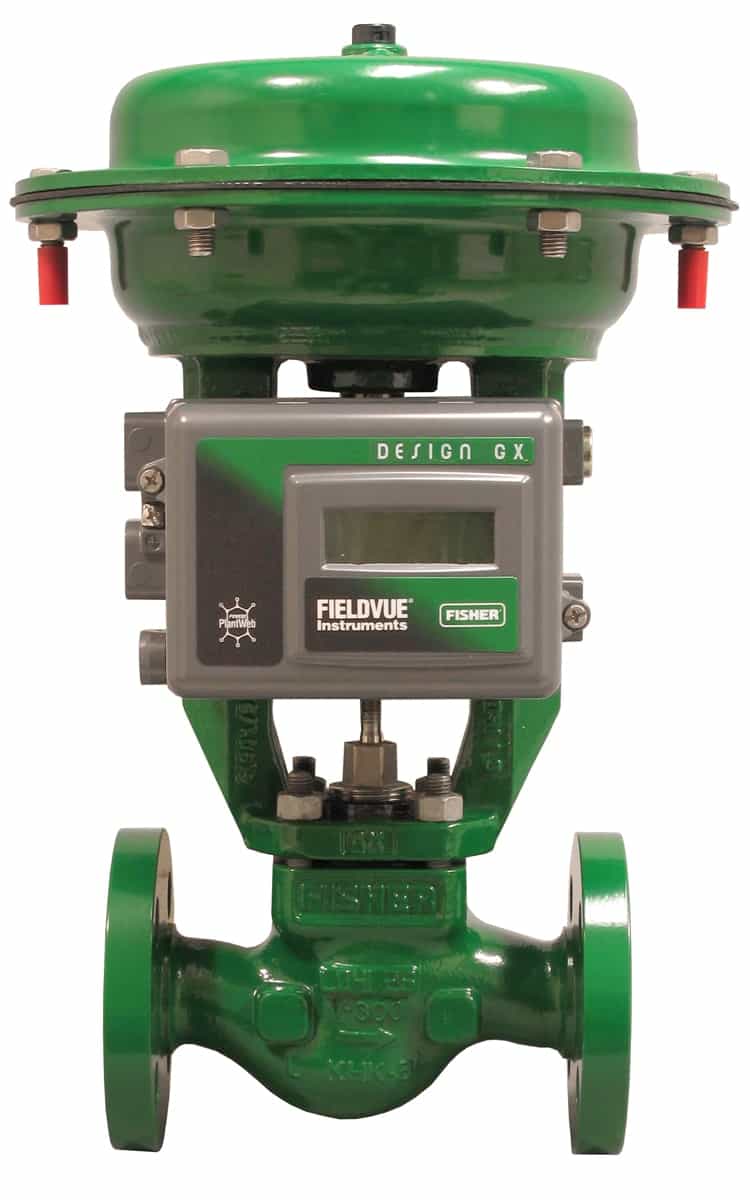

Fisher GX Globe Control Valve – with FIELDVUE digital valve controller for processing liquids, gases, and vapors
See how Fisher Control Valves provide safe, efficient and intuitive flow control.
Fisher Rotary Valves: Flow Control For Power, Oil, Gas & Refining Pipelines
âž¡ Did you know? Fisher Control Valves are approved, certified and classified to international standards including ASME, CSA, IEC, NACE, FDA & NFPA. Should you require assistance with valve specification for explosion-proof or intrinsically safe applications in the hazardous area industries, please contact T&D.
Fisher Control Valves – Approvals
Fisher GX Globe Control Valve and Actuator System – Sliding Stem Valves – Data Sheet
