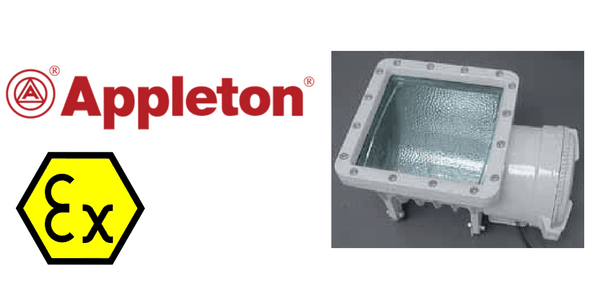

Appleton PL is part of the Zone 1 Zone 2 (21/22) hazardous area floodlights ATEX lighting range that are specifically designed for large area lighting in industrial outdoor and indoor hazardous areas.

The Appleton PL offers flameproof lighting in a variety of lamp types, wattages and mounting options. The ATEX certified PL floodlights are ideally suited for use in Zones 1, 2, 21 and 22 hazardous areas in the oil and gas industry in applications such as refineries, pipelines, warehouses, offshore platforms and drilling rigs.

Hazardous Area Floodlights – Zone 1 Zone 2 (21/22) ATEX Floodlight – Appleton PL

Features & Benefits

  • Gray epoxy painted light marine grade aluminum housing and door
  • Fast and easy lamp replacement via threaded cover on the side of the fixture. The cover is fitted with a short safety chain
  • Lampholder can be easily field-adjustable for either a narrow or wide beam
  • Fixtures operate safely in high ambient temperatures up to +55 °C (+131°F) and in low ambient temperature up to -40 °C (-40 ºF)
  • Electrical components (ballast, ignitor and capacitor) are thermally separated from the hazardous area lighting compartment with a bulkhead, providing extended life
  • Easy and efficient wiring due to separate Ex e terminal box with wiring onto 2 captive terminals 2 x 6 mm2 (2 x 0.009 in²); 2 internal earth terminals capacity 6 mm2 (0.009 in2) and 1 external earth terminal capacity 4 mm2 (0.006 in²)
  • 2 x 20 mm (2 x 0.79 in) clearance holes throughwire cable entries supplied with:
    One Ex e unarmored cable gland — sealing diameter 6.5 mm to 14.5 mm (0.2 in to 0.57 in)
    One blanking plug
    Two M20 locknuts
  • For use with either tubular or ellipsoidal shape lamps. See ordering information for details
  • Choice of mounting with galvanized hinged bracket fixed mounting or tube/pole mounting with galvanized brackets
  • Thermoshock and impact-resistant glass factory sealed into the cover frame
  • Luminaire operates in any position
  • Reversible hinge allows for fixture access from either side
  • E40 or H3 lampholders for the 2 x 70 W Vac/Vdc halogen version
  • Internal symmetric reflector
Flameproof Floodlights - Zone 1 Zone 2 (21/22) ATEX Floodlight – Appleton PL

Flameproof Floodlights – Zone 1 Zone 2 (21/22) ATEX Floodlight – Appleton PL

Hazardous Area Floodlights – Zone 1 Zone 2 (21/22) ATEX Floodlight

Appleton PL

Technical Data

Lamp Wattages LampholderVoltage (+/-10%)  Lamp Type Ellipsoidal Lamp Type Tubular Weight (kg) Volume (dm3) Appleton Catalog Number
High Pressure Sodium
250 WE40230/240 V 50 HzXX37.5104.4PLAL25XJB
400 WE40230/240 V 50 HzXX37.5104.4PLAL40XAB
Halogen
500/1000 WE40X34.0104.4PLAZ50B

Note: Floodlights supplied with hinged mounting bracket, 1 plug, 1 M20 cable gland (dia. 6.5 to 14.5 mm). Lamps are not included.

Flameproof Floodlights – Zone 1 Zone 2 (21/22) ATEX Floodlight

Appleton PB

Temperature Rating Chart

Lamp WattageGasDust
Temperature Rating According to TaSurface Temperature
+40°C+50°C+55°C
150 W SodiumT4T3T3145°C
250 W SodiumT3T3T3145°C
250 W Metal HalideT3T3T3197°C
250 W Mercury VaporT3T3T3194°C
400 W SodiumT4T3T3144°C
400 W Metal HalideT3T3T3193°C
400 W Mercury VaporT3T3T3195°C
600 W SodiumT2T2T2257°C
500 W HalogenT2T2T2267°C
1000 W HalogenT1T1T1378°C
Hazardous Area Floodlights - Zone 1 Zone 2 (21-22) ATEX Floodlight – Appleton PL Dimensions

Hazardous Area Floodlights – Zone 1 Zone 2 (21-22) ATEX Floodlight – Appleton PL Dimensions

ATEX/IECEx Certifications for hazardous areas

Hazardous Area Floodlights

Hazardous Area Floodlights

  • ATEX / IECEx
    – Zone 1 and 2 – 21 and 22
    ex  II 2 GD
    – IP66 or IP66/67 – IK10
  • NEC/CEC:
    – AEx/Ex de IIB IP 66
    – Ex de IIB
    – IP 66
INMETRO

Certificate: BVC12.2098

EURASEC

EURASEC N° TC RU C-FR.ГБ05.B.00912

ATEX

LCIE 99/ ATEX 6002

IECEx

IECEx LCI 04.0020
