Marechal DX3 Zone 1 & Zone 2 Hazardous Area Plugs 32A 750V

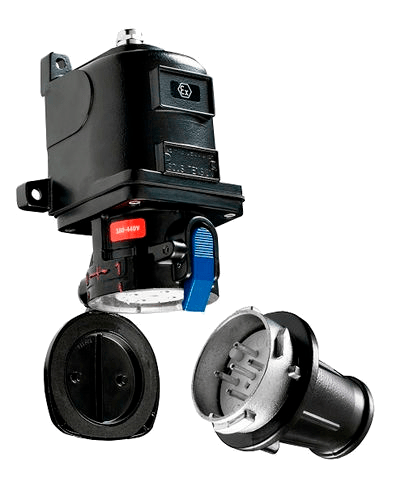

Marechal DX3 plugs and sockets are compact and watertight and are ATEX certified for use in Zone 1 & Zone 2 hazardous areas and have a rated current of 32A and a maximum voltage of 750V. DX3 plugs and sockets are automatically IP65 when connected and the socket outlet itself is also watertight when the lid is closed.

Marechal DX3 ATEX Plugs Technical Specification

Rated Current (with wiring according to standard)	32A
Maximum Voltage	750V
IP Protection Lid Closed	IP65
IP Protection Connected Plug	IP65
Shock Resistance	IK10
Ambient Temperature	-25ºC to +60ºC
Flexible Wiring (Min-Max)	2.5mm² – 10mm²
Stranded Wiring (Min-Max)	2.5mm² – 10mm²
Other Wiring	On Request
Keying Positions	12
Protection Mode	de
ATEX Zones	1 & 2, 21 & 22

The DX3 is available in a wide range of voltages and polarity options for both female socket outlets and male inlet plugs:

• 220-250V, 1P+N+E
• 380V-440V, 3P+E
• 380V-440V, 3P+N+E

A full range of boxes, sleeves, handles, adaptors and accessories can also be supplied. Marechal’s DX range of plugs and sockets are suitable for rated currents from 20A up to 200A and maximum voltages of 750V.

Marechal DX ATEX Plugs – Technical Features

Specification	Marechal DX1	Marechal DX3	Marechal DX6	Marechal DX9	Marechal DX2
Rated Current (ln)	20A	32A	63A	125A	200A
Umax	750V	750V	750V	750V	750V
Keying Positions (To distinguish between different power supplies & applications)	12	12	12	12	12
Ambient Temperature	-25 °C ≤Ta ≤+60 °C	-25 °C ≤Ta ≤+60 °C	-40 °C ≤Ta ≤+60 °C	-40 °C ≤Ta ≤+60 °C	-40 °C ≤Ta ≤+60 °C
Protection Mode	de and td A21	de and td A21	de and td A21	de and td A21	de and td A21
ATEX Zones	Zones 1 & 2 (Gas), Zone 21 & 22 (Dusts)
