Clamp-on Flow Meters

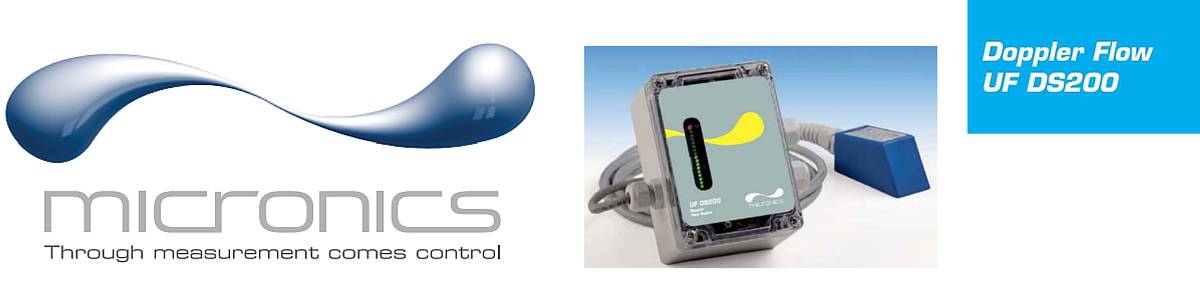

Micronics UF DS200 flow meters are part of a range of fixed clamp-on flow meters that offer a welcome alternative to cutting pipes as this flow meter enables low cost flow measurement from outside of metal or plastic pipes.

The flow meter is able to accurately monitor the flow rate of acids, caustics, lubrication fluids, chemicals, abrasives, waste water and sludge. There are no moving parts and no sensor maintenance is required. Also installation can be made while the flow system is in full operation – suitable for pump protection and activation of flow/no flow alarms.

Micronics UF DS200 flow meters specification

  • Electronics: Wall mounting 107x57x61.5mm.Power Input:– 100 –-240VAC
  • Optional: 12 – 24VDC, (3 watts)
  • Output: 5amp relay, DPDT
  • Set Point: Field-adjustable with separate on/off set-points or select Hi flow alarm or Lo flow alarm mode
  • Time DelayAdjustable 0-80 seconds
  • Failsafe Mode: Switch selectable
  • Indication: Flow rate LED bargraph, relay status LED
  • Pipe Range: 12.5mm ID to 4.5m ID
  • Sensor Cable: 6m-Shielded Coax
  • Optional: 150m
  • Pipe Range: 15mm-4500mm
  • Enclosure: IP66 polycarbonate
  • Relay Time Delay: 0-60 seconds

Micronics UF DS200 flow meter monitors liquid flow from outside the pipe with DN 15-4500mm – the meter is insensitive to pressure, specific gravity and conductivity with clamp-on ultrasonic transducer.

FLOW METER APPLICATIONS

  • Sewage
  • Viscous Liquids
  • Acids
  • Slurries
  • Solvents
  • Treated Wastewater
  • Sludge
  • Pulp Stock
  • Food Products
  • Oils
  • Paint
  • Chemicals
  • Aerated Water
  • Cooling Water

FLOW METER INDUSTRIES

Micronics U1000 Clamp-on Fixed Flow Meter

Micronics Fixed Clamp-on Flow Meters

  • Food & Beverage
  • Petrochemical (Contact T&D for Hazardous Area Flow Meters)
  • Pharmaceutical
  • Chemical
  • Power Generation
  • Energy Management
  • Building Services
  • Water

FLOW METER USES

  • Micronics UF DS200

    Micronics UF DS200

    Hot Water Metering

  • Flow Measurement For Heat Metering
  • Chilled Water Metering
  • Flow Measurement For Chilled Water Energy Metering
  • Potable Water Metering & Flow Measurement
  • Process Water Metering & Flow Measurement
  • Ultrapure Water Measurement
