Ex d Lighting – Explosion Proof Hazardous Area Technor FL LED Floodlight Lighting

ZONE 1, ZONE 21 FLoodlight

EXPLOSION PROTECTION EX d

Floodlights for Zone 1, Zone 21, Zone 2, Zone 22 Hazardous Area Lighting Applications

Thorne & Derrick, the Specialist Distributors of Hazardous Area Lighting can provide competitive prices and supply from stock the complete range of Technor products including electrical enclosures and junction boxes.

Technor’s FL LED is a floodlight Ex d lighting fixture suitable for hazardous area lighting and offers offers Ex-e IIB mode of protection and are suitable for on-shore and off-shore tank lighting applications where there is a high level of corrosion thanks to FL LED floodlights having a body made of aluminum with low content copper and tampered glass.

Technor FL LED floodlight lighting is classified to international hazardous area classifications with ATEX, IECEx and TRCU certification, with ingress protection IP66 and an operational ambient temperature range of -50°C to +55°C.

FL LED floodlights are manufactured with symmetrical narrow beam reflector and symmetrical wide beam reflector upon request and feature an integral Ex e connection box and AISI304 stainless steel universal mounting bracket.

Technor FL LED Floodlight Lighting – Technical Features

Material	Aluminium with low content of copper
IP rating	IP66
Ambient temperature range	-50°C to +55°C
Approvals	INERIS 00ATEX0023X (standard) / INERIS 01ATEX0059 (battery pack) CoC TR CU 012/2011: n° B.01067 (marking upon request, ordering code to be required)
Gaskets	Gasket made of Nitrile Rubber (NBR) on flat joint
Entries	Suitable for LOOP-IN LOOP-OUT up to 4mm²
Hardware and screws	AISI304 Stainless steel external hardware and screws
Lamps	Included
Rated Operation Voltage (UE)	110V/264V (standard version) 220V/240V (emergency version)
Frequency	50 Hz / 60 Hz
Accessories Available Upon Request	Ceiling mounting : N° 1 brass nickel chrome plated plug + N° 1 brass nickel chrome plated cable gland PNA type c/w set of inner seals. Pole mounting : N°1 brass nickel chrome plated cable gland PNA type c/w set of inner seals. Adjustable mounting bracket: : N°1 brass nickel chrome plated cable gland PNA type c/w set of inner seals. Upon request: protection guard.
Operating Principles	FL.. floodlight for emergency service : 180 minutes; with constant flux 650 lm (other emergency duration available upon request)

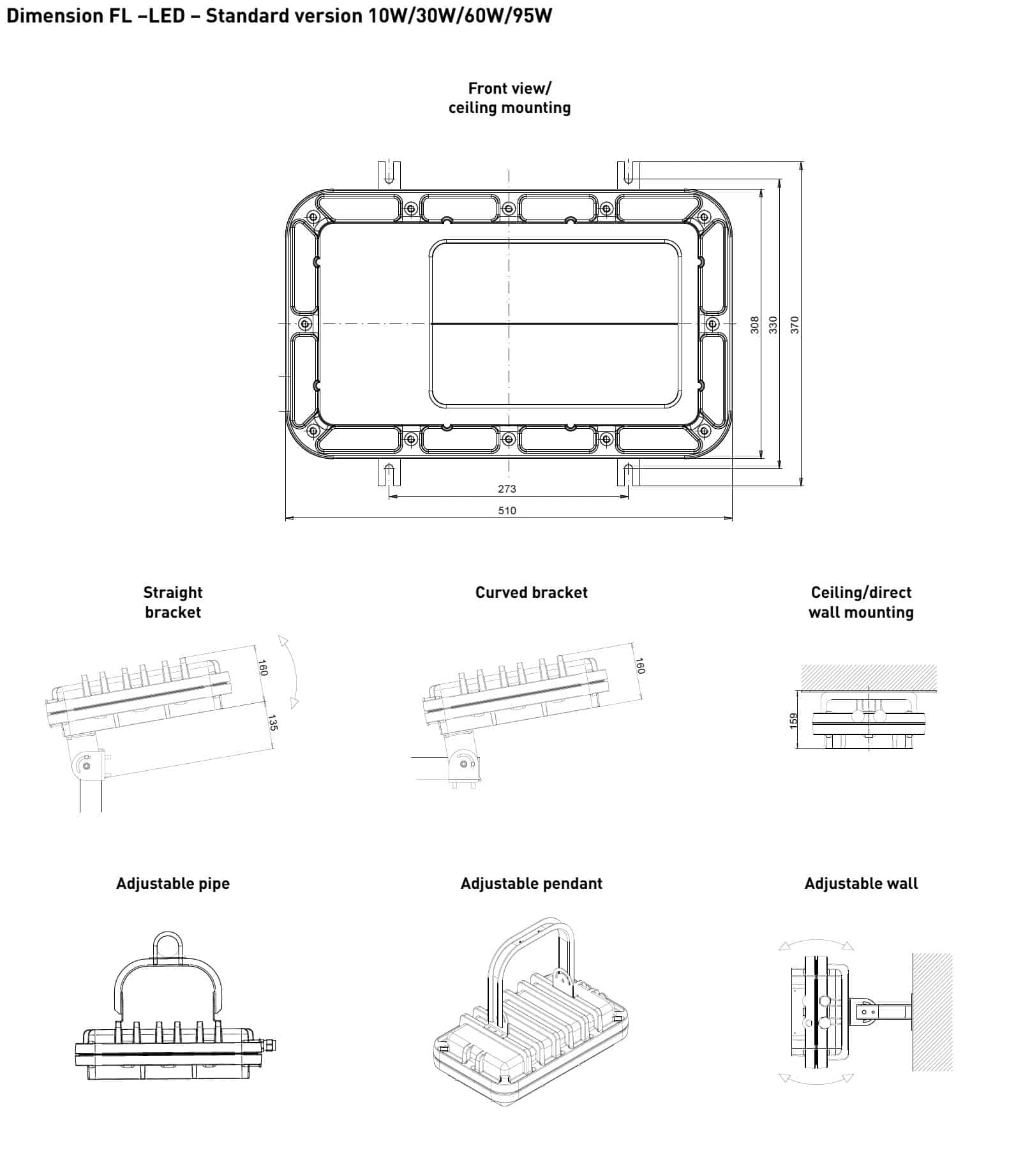

Technor FL LED Lighting – Standard Version (Ceiling/Direct Wall Mounting)

Technor Part Number	Code	Lamp (W)	Voltage	Frequency	Ambient Temperature
FL-LED 30	A010195021112	95W	110/264V	50/60HZ	-50ºC; +55ºC
FL-LED 30	A010160021112	60W	110/264V	50/60HZ	-50ºC; +55ºC
FL-LED 30	A010130021112	30W	110/264V	50/60HZ	-50ºC; +55ºC
FL-LED 30	A010110021112	10W	110/264V	50/60HZ	-50ºC; +55ºC

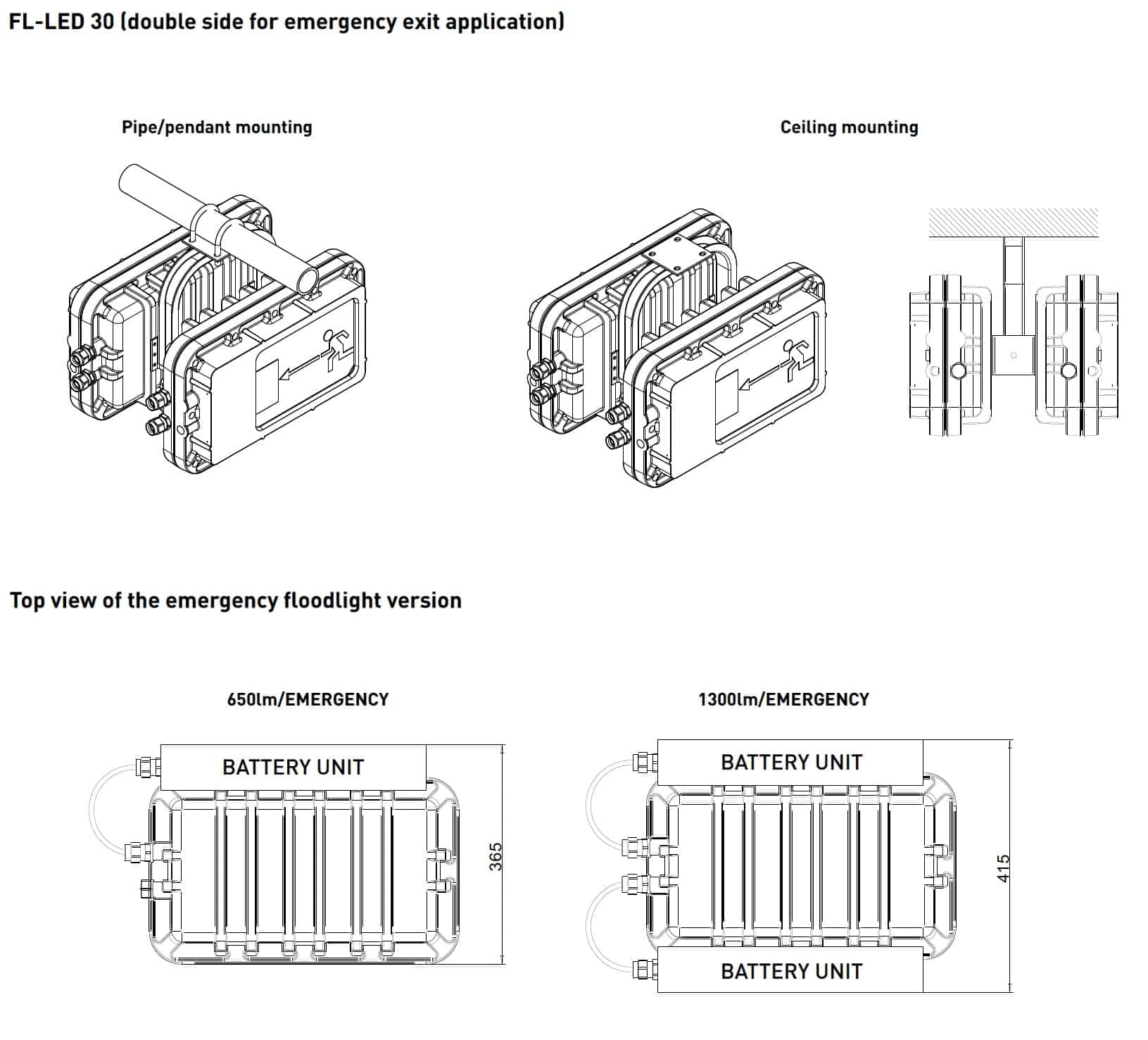

Technor FL LED Lighting – Emergency Version / 3 Hours Duration with 650lm output in emergency

Technor Part Number	Code	Lamp (W)	Voltage	Frequency	Ambient Temperature
FL-LED 30	A010295111122	95W	220/240V	50/60HZ	-50ºC; +55ºC
FL-LED 30	A010260111122	60W	220/240V	50/60HZ	-50ºC; +55ºC
FL-LED 30	A010230111122	30W	220/240V	50/60HZ	-50ºC; +55ºC
FL-LED 30	A010210111122	10W	220/240V	50/60HZ	-50ºC; +55ºC
FL-LED 30 (Double Side)	A010410111122	2 x 10W	220/240V	50/60Hz	-50ºC; +55ºC

Note: 1300 lm available in emergency condition (upon request)



HAZARDOUS AREA CERTIFICATION & MARKING FOR Lighting

Standard:

• II 2 GD
• Ex d IIB+H2 T6 Gb
• Ex tb IIIC T85°C Db IP66

Battery pack:

• II 2 GD
• Ex d IIC T6 Gb
• Ex tb IIIC T85°C Db IP66

under IEC Ex directive, junction boxes and enclosures are suitable for IIB group of gases/dusts only

Approvals

Data Sheets

• Ex d Lighting – Explosion Proof Hazardous Area Technor FL LED Floodlight Lighting
  Download
