Hazardous Area Technor RMS 550 Fluorescent | Ex nA Lighting

This product has been made obsolete. Please Contact Thorne & Derrick for an alternative!

Zone 2, Zone 22 Fluorescent Lighting

Explosion Protection Ex Na

Fluorescent Lighting for Zone 2, Zone 22 Hazardous Area Lighting Applications

Thorne & Derrick, the Specialist Distributors of Hazardous Area Lighting can provide competitive prices and supply from stock the complete range of Technor products including electrical enclosures and junction boxes.

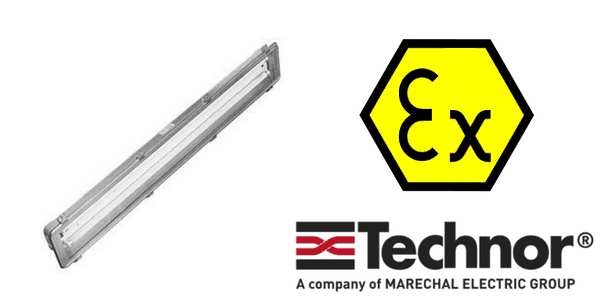

Technor’s RMS 550 is a fluorescent Ex nA lighting fixture suitable for hazardous area lighting and has a body and glass frame are made of stainless steel AISI304 and manufactured from a single sheet of steel with no invasive mounting holes, to minimise the risk of water ingress through the housing – suitable for on and offshore applications where there is an need for a high level of corrosion.

Technor RMS 550 fluorescent lighting is classified to international hazardous area classifications with ATEX and TRCU certification, with ingress protection IP65 and an operational ambient temperature range of -30°C to +55°C.

Technor RMS 550 Fluorescent Lighting – Technical Features

Material	AISI304 stainless steel, 0,8mm thickness and transparent part in tempered glass (AISI 316 L version available upon request)
IP rating	IP65
Ambient temperature range	-30°C to +55°C
Approvals	INERIS 01ATEX3002X (standard) TR CU (marking upon request, ordering code to be required)
Gaskets	Special cross-section tightness gasket, silicon rubber made (closed cell), located in housing channel between body and window frame.
Entries	Body complete of two 21mm Ø through holes (on one side) for cable entry, one complete of metallic plug with M20 locknut and gasket and the other one with temporary plastic plug to prevent dust ingress.
Hardware and screws	AISI304 Stainless steel external hardware and screws
Lamps	RMS series lighting fixtures are suitable for two pins fluorescent lamps G13 socket Philips TL-D or equivalent (lamps excluded)
Ballast	High frequency electronic ballast conforming with EN 60079 – 15 and IEC 60079 – 15
Rated Operation Voltage (UE)	220-240 V
Frequency	50 – 60 Hz
Power Factor	>0.95
Accessories available upon request	Pole mounting kit / Ceiling mounting kit / Suspension mounting kit / Wall mounting kit 3°- 4° through holes opposite side
Operating Principles	Available RMS.. lighting fixtures for emergency service of one tube: – 90 minutes ; guarantees 60’ duration with constant flux (emergency lumen factor 18%) and 30’ with decreasing flux

Technor RMS 550 Lighting – Normal Service

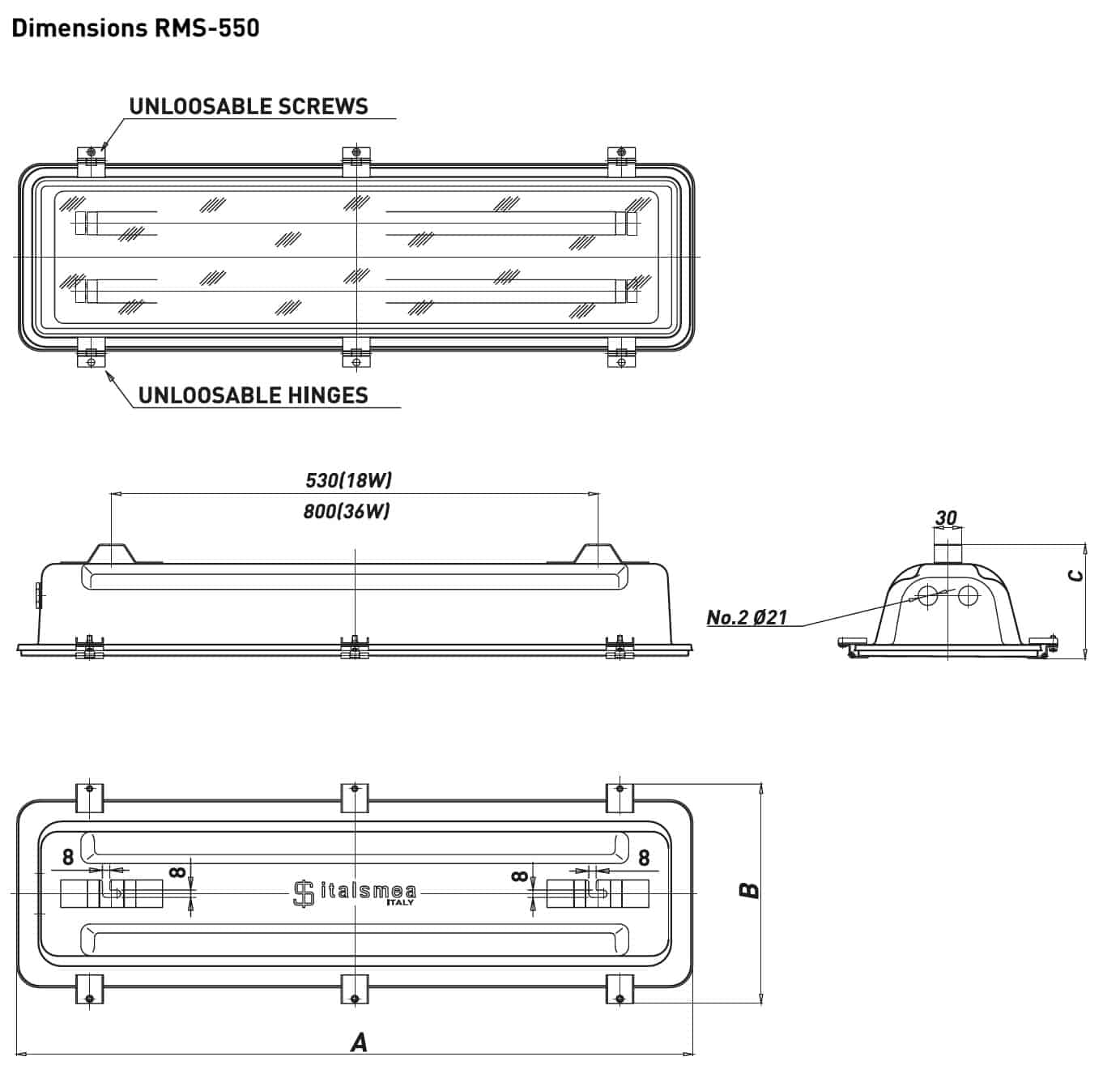

Technor Part Number	Code	Power (W)	Temperature Class	Ambient Temperature	Dimensions (mm)			Weight (kg)
					A	B	C
RMS-550-03	A020111180200	1X18	Gas T5 Dust T100ºC	(-20º;+50º)*	737	239	123	5.10
RMS-550-04	A020112180200	2X18	Gas T5 Dust T100ºC	(-20º;+50º)*	737	239	123	5.20
RMS-550-01	A020111360200	1X36	Gas T5 Dust T100ºC	(-20º;+50º)*	1347	239	123	8.40
RMS-550-02	A020112360200	2X36	Gas T5 Dust T100ºC	(-20º;+50º)*	1347	239	123	8.60

* In case of maximum ambient temperature reach +55°C, temperature class changes into T4/T105°C (ordering code to be required).

Technor RMS 550 Lighting – Emergency Service

Technor Part Number	Code	Power (W)	Temperature Class	Ambient Temperature	Emergency Duration	Dimensions (mm)			Weight (kg)
						A	B	C
RMS-550-03 LE-P-90	A020211181210	1X18	Gas T5 Dust T100ºC	(-20º;+50º)*	90′	737	239	123	5.80
RMS-550-04 LE-P-90	A020212181210	2X18	Gas T5 Dust T100ºC	(-20º;+50º)*	90′	737	239	123	5.90
RMS-550-01 LE-P-90	A020211361210	1X36	Gas T5 Dust T100ºC	(-20º;+50º)*	90’**	1347	239	123	9.10
RMS-550-02 LE-P-90	A020212361210	2X36	Gas T5 Dust T100ºC	(-20º;+50º)*	90’**	1347	239	123	9.30

* In case of maximum ambient temperature reach +55°C, temperature class changes into T4/T105°C (ordering code to be required).
** 120’ version available upon request (ordering code to be required).

HAZARDOUS AREA CERTIFICATION & MARKING FOR Lighting

II 3 GD

• Ex nA II T(**)
• Ex tD A22 IP65 T(**)
• ** T5/T90°C, T5/T100°C, T4/T105°C

Hazardous Area Approvals

Certified 01ATEX3002X (standard) TR CU (marking upon request, ordering code to be required)
