VEGA VEGABAR 87 Hydrostatic Level Sensor

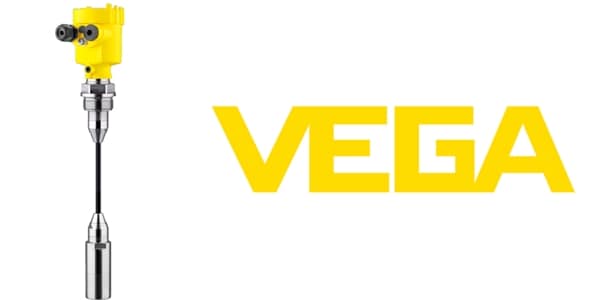

VEGA Level Sensors - Submersible Pressure Transmitter

VEGA Level Sensors – Submersible Pressure Transmitter

Level Sensor VEGA VEGABAR 87

Level Measurement for Liquids (+abrasive content)

VEGA VEGABAR 87 hydrostatic level sensor is a submersible pressure transmitter for level measurements of liquids and viscous products with higher temperatures in the chemical and food processing and pharmaceutical industry.

VEGABAR 87 level sensor features maximum reliability even with rapidly changing process temperatures..

VEGABAR 87 features a self-cleaning effect through the front-flushing installation and a high plant availability through maximum overload and vacuum resistance of the ceramic measuring cell.

VEGA VEGABAR 87 submersible pressure transmitter has a robust mechanical configuration of the metallic measuring cell that protects the sensor in the demanding measuring tasks found in different industries including hazardous area level measurement in the oil, gas, chemicals and food processing industries.

  • chemically stable level measurement sensor and transmitter for use in ultrapure water
  • water level measurement with two suspension pressure transmitters for lock control
  • maintenance free level measurement sensor in waste water shafts



VEGA VEGABAR 87 HYDROSTATIC Level Sensor

Product Specifications

Measuring Range – Distance Measuring Range – Pressure Process Temperature Level Sensor Accuracy  Level Sensor Protection Rating Ambient Temperature Hazardous Area ATEX

Level Sensor
250 m 0 – 25 bar -12 – 100°C 0.1% IP66/IP68 (0.2 bar)
IP66/IP67
IP66/IP68 (1 bar)		 -40 to 80 °C  Yes, VEGA VEGABAR 87 is suitable for hazardous areas

ATEX Level Sensors

(see ATEX download).



VEGABAR 87 Level Sensor Hazardous Area CertificationsVega Level Sensors

VEGABAR 87 hydrostatic level sensor is available with hazardous area certifications to meet ATEX & IECEx directives for Zone 1 and Zone 2 installations.

ATEX & IECEx Approvals

ATEX II 1G, 1/2G, 2G Ex ia IIC T6

ATEX II 1G, 1/2G, 2G Ex ia IIC T6 + Ship approval

ATEX II 1/2G, 2G Ex d IIC T6

EC Ex ia IIC T6

VEGA level sensors are suitable for use in hazardous areas and their instruments also have various ship approvals such as e.g. DNV, GL, LRS or ABS.



VEGA LEVEL SENSOR – VEGABAR 87 FEATURES

MEASURING CELL TECHNOLOGY

The pressure of the measured medium acts on the pressure measuring cell, converting this pressure into an electronic signal.

The sensor element is the ceramic CERTEC measuring cell with front-flush, abrasion-resistant ceramic diaphragm – the CERTEC measuring cell is equipped with a temperature sensor and the temperature value can be displayed on the VEGA VEGABAR 87 level sensor via the display and adjustment module or processed via the signal output.

MATERIAL TRANSMITTER

316L, Duplex (1.4462) FEP

MEASURING RANGE

+0.1 … +25 bar/+10 … +2500 kPa

(+1.45 … +363 psig)

SMALLEST MEASURING RANGE

+0.1 bar/+10 kPa (+1.45 psig)

PROCESS TEMPERATURE

-12 … +100 °C (-10 … +212 °F)

SIGNAL OUTPUT

    • 4-20 mA
    • 4-20 mA/HART
    • PA
    • FF
    • Modbus
    • Slave electronics for electronic differential pressure

APPROVALS

    • SIL
    • Shipbuilding
    • ATEX
    • Overfill protection
    • FM
    • CSA
    • EAC (GOST)

Submersible pressure transmitters VEGA VEGABAR 86, 87 and VEGAWELL 52 are suitable for hydrostatic level measurement.

Using a slave sensor, VEGABAR 87 can be adapted for electronic differential pressure measurement of:

  1. Level Pressurised
  2. Level Difference
  3. Flow
  4. Density
  5. Interface

VEGA Level Measurement Instruments & Sensors include capacitive, hydrostatic, guided wave radar and ultrasonic sensors for the measurement of bulk liquids, solids and powders in safe, industrial and hazardous area industries.

Thorne & Derrick provide Process Measurement and Instrumentation systems for level measurement, flow measurement, temperature measurement and pressure measurement.

T&D provide expert technical advice, specification guidance and competitive quotations for VEGA sensors from stock. Contact us for support on industrial and hazardous area flow measurement.

VEGA VEGABAR Level Sensors

Electronic level difference measurement through Master/Slave combination using VEGA VEGABAR 86

VEGA Level Sensors - VEGA VEGABAR 86

Measurement set-up using VEGA VEGABAR 86 for level measurement

PRESSURE TRANSMITTER APPLICATIONS

VEGA Level Sensor – VEGABAR 87 Hydrostatic Level Sensor

Application: VEGA VEGABAR 87 Pressure Transmitter

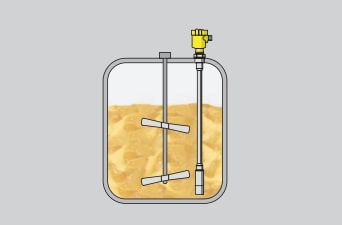

♦ Yoghurt Production Level Measurement – VEGABAR 87 pressure transmitter is suspended into a batch mixing tank to accurately measure the batch level. Benefits:

  • up to 120° Celsius temperature (cleaning)
  • high resistance diaphragm material alloy C276
  • rigid tube version of stainless steel with material certificate
  • elastomer and gap-free
VEGA Level Sensors - VEGACAL

VEGA Level Sensors : Measurement of level, point level, pressure, flow and density.
