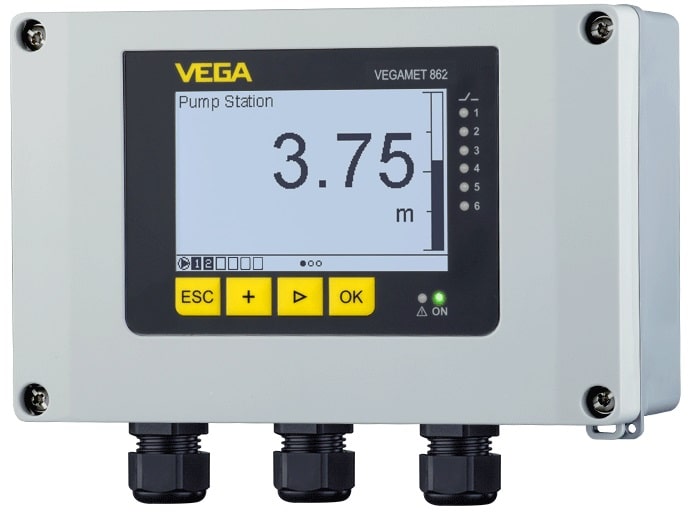

VEGAMET 862
The VEGAMET 862 controller & display instrument feeds the connected 4 … 20 mA VEGA level sensor, processes the measured values and displays them. A large display for data visualisation is integrated in the housing designed for rough field conditions. It enables a simple conversion of pump controls, flow measurements on open channels and weirs and totalizers.
With VEGAMET 862, limit values can be reliably monitored and relays can be switched, e.g. for an overfill protection according to WHG. Due to its various possibilities it is suitable for many industrial branches.
The VEGAMET 862 has a clear display that is easy to read in sunlight and darkness and the controller eliminates the need for complex programming of control tasks.

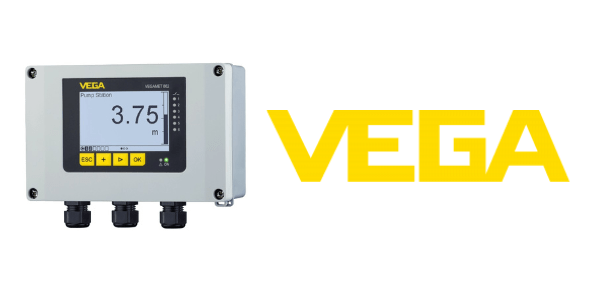

VEGAMET 862 Controller & Display Instrument
Technical Specification
Protection Rating | IP66/IP67, Type 4X |
Input |
2x 4 … 20 mA/HART sensor input
4x digital input
|
Output |
3 x 0/4 … 20 mA current output
1x failure relay (instead of operating relay)
6x operating relay
|
Ambient Temperature | -40 … 60 °C |
The VEGAMET 862 controller can power the connected sensor and process its measurement signals. The requested parameter is shown on the display and also output to the integrated current output for further processing. The measurement signal can thus be transferred to a remote display or a superordinate control system. Operating relays for control of pumps or other devices are also integrated.

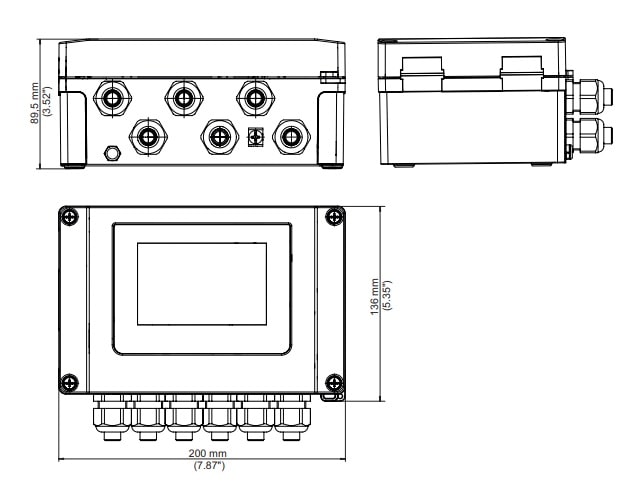

Dimensions
