Wolf WL-70 ATEX Worklite

Wolf WL-70

Floodlight

Gas: Hazardous Area Zone 1 & Zone 2

Dust: Hazardous Area Zone 21 & Zone 22

Please note – the WL-70 has now been discontinued.

Thorne & Derrick, the Specialist Distributors of Hazardous Area Lighting can provide competitive prices and supply from stock the complete range of Wolf temporary and portable lighting products.

Wolf WL-70 hazardous area floodlights are ATEX certified for use in Zones 1 & 2 (Gas) and Zone 21 & 22 (Dust)

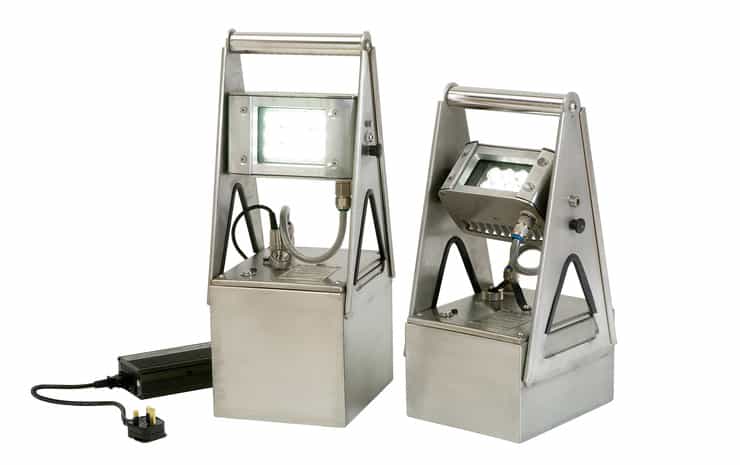

Wolf WL-70 Hazardous Area Floodlight

Wolf WL-70 is a rechargeable LED floodlight with “ib” intrinsic safety type of protection for hazardous areas – using high power LED as the light source the WL-70 provides an output of 510lm.

Part Number: Wolf WL-70
Product Category: Hazardous Area Lighting
Product Range: Hazardous Area Floodlights
Description: 6 LED High Power Rechargeable Battery Worklite
Hazardous Area Code: II 2 GD Ex e ib mb IIC T4 Ex tD A21 IP65 T135°C
Explosion Proof/Protection Concept: ‘e’ Increased Safety, ‘ib’ Intrinsic Safety, ‘mb’ Encapsulation, tD Enclosure Protection
Hazardous Area Classification (Gas): Zones 1 and 2, Gas Groups IIA, IIB, IIC
Temperature Classification (Gas): T4
Hazardous Area Classification (Dust): Zone 21 and 22
Max Surface Temperature (Dust): T135°C
Ambient Temperature: 20°C to +40°C
Certificate: Sira07ATEX3027
Enclosure: Stainless Steel with Aluminium LED Lamp Head
Lens: Toughened Glass Lens Supplied with 3 Anti-static Lens Guards
Beam Type: Spot Beam with a Flood of Low Level Fringe Light
See more ATEX Floodlights

Light Source

Type: High Power LED
Power/Output: 6 x 3 Watt LEDs / Up to 510 lm
Bulb Life: 25,000hrs+ (Fitted for Life)

Light Output

18W LED Beam (approx 30°) peak luminous intensity at 5m 120lux

Wolf WL-70 – rechargeable high output LED floodlight for use in harsh remote applications for extended periods

ATEX Certification: II 2 GD Ex e ib mb IIC T4 Ex tD A21 IP65 T135°C

Wolf WL-70 – Flood Beam (approx 30°) – for further information about Hazardous Area Lighting for Zone 1 and Zone 2 please contact T&D’s Sales Engineers.

➡ For complete specifications, technical date and ordering details about Wolf WL-70 please refer to the download opposite or contact T&D to discuss your floodlight requirements.

WOLF ATEX WORKLITE FLOODLIGHTS TECHNICAL INFORMATION

The following table explains the technical specification differences for the Wolf ATEX Worklite range of floodlight – should you require support or advice on selecting the correct hazardous area floodlight please do not hesitate to contact us.

Wolf WL-70

Wolf ATEX Worklite Part Reference		Wolf WL-70
Floodlights Description		High Power Rechargeable Battery Worklite 6 LED
Hazardous Area Code		II 2 GD II T4 (Tamb = 55°C) T135°C
Type of Protection		‘e’ Increased Safety, ‘ib’ Intrinsic Safety, ‘mb’ Encapsulation, tD Enclosure Protection
Area of Hazardous Classification (Gas)		Zones 1 and 2, Gas Groups IIA, IIB, IIC
Temperature Classification (Gas)		T4
Area of Hazardous Classification (Dust)		Zones 21 and 22
Maximum Surface Temperature (Dust)		T135°C
Ambient Temperature		-20ºC to +40ºC
ATEX Certificate		Sira07ATEX3027
Enclosure		Stainless Steel with Aluminium LED Lamp Head
Lens		Toughened Glass Lens Supplied with 3 Anti-static Lens Guards
Beam Type		Spot Beam with a Flood of Low Level Fringe Light
Power Source	Part Number	Wolf W-218
	Battery Type	Rechargeable Battery, Sealed Gel Lead Acid
	Volts	12V
	Life	Up to 500 Recharge Cycles
	Capacity	18Ah
Light Source	Type	High Power LED
	Power / Output	6 x 3 Watt LEDs / Up to 510 lm
	Bulb Life	25,000hrs+ (Fitted for Life)
Ingress Protection		IP65 to EN60529: 1992r
Weight		16kg
Charger Input		Yes
Recharge Time		8hrs

Wolf – tHE hAZARDOUS AREA lIGHTING sPECIALISTS

Contact T&D to discuss all your portable and temporary hazardous area lighting requirements – as Main Distributors for Wolf Safety Lamp we can provide expert technical support and competitive prices with delivery from stock.
