Wolf XT-602 ATEX Flood Bank

Wolf XT-602 ATEX Flood Banks

Wolf XT-602

Wolf XT-602

Floodlight

Gas: Hazardous Area Zone 0, Zone 1 & Zone 2

Thorne & Derrick, the Specialist Distributors of Hazardous Area Lighting can provide competitive prices and supply from stock the complete range of Wolf temporary and portable lighting products.

Wolf XT-602 hazardous area floodlights are ATEX certified for use in Zones 0, 1 & 2 (Gas).

Wolf XT-602 Hazardous Area Flood Book

Wolf XT-602 is a rechargeable LED flood bank with “ib” intrinsic safety type of protection for hazardous areas – using high power LED as the light source the XT-602 provides an output of 700lm.

  • Part Number: Wolf XT-602
  • Product Category: Hazardous Area Lighting
  • Product Range: Hazardous Area Floodlights
  • Description: 2 x Handlamp ATEX Zone 0 Flood Bank
  • Stand Material: Stainless Steel
  • Handlamp Holder Material: Impact Resistant Thermoplastic, Electrostatic Non-Hazardous, ‘Snap-in/Snatch-out’ Function
  • Handlamps & Chargers: Includes Stand with Handlamp Holders only attached, Wolflite XT Rechargeable Zone 0 Handlamps (XT-75) and a separate Quick Charger with Mains Adaptor 100-254V AC (XT-200H – for use in safe area only) for each handlamp.
  • Total Light Output: 700lms
  • See more ATEX Floodlights

Light Source

  • Type: High Power LED
  • Power/Output: 2 x 350+lm LEDs
  • Bulb Life: 25,000hrs+ (Fitted for Life)

Light Output

  • LED Flood Beam (approx 30°) Peak luminous intensity, high power at 1m 260 lux, at 5m 14 lux
    Peak luminous intensity, ‘powersave’ at 1m 150 lux, at 5m 9 lux

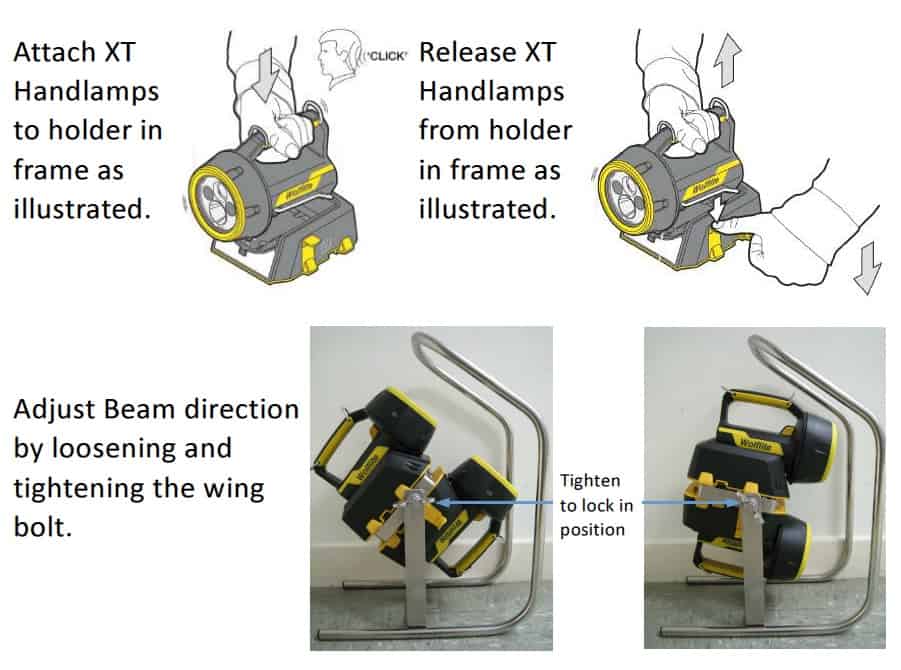

Wolf XT-602 ATEX Flood Bank - Instructions

Wolf XT-602 ATEX Flood Bank – Instructions

ATEX & IECEx Certification: II 1GD Ex ia IIC T4 Ga IP67 Ex ia IIIB T185°C Db (Temperature ambient -30°C to +40°C)

Wolf XT-75 – Spot Beam (approx 3.5°) with a low power Fringe Beam (approx 50°), Flood Beam (approx 30º) – for further information about Hazardous Area Lighting for Zone 1 and Zone 2 please contact T&D’s Sales Engineers.

➡ For complete specifications, technical date and ordering details about Wolf XT-602 please refer to the download opposite or contact T&D to discuss your floodlight requirements.

WOLF ATEX ZONE 0 FLOOD BANKS TECHNICAL INFORMATION

The following table explains the technical specification differences for the Wolf ATEX Flood Bank range of floodlight – should you require support or advice on selecting the correct hazardous area floodlight please do not hesitate to contact us.

Wolf XT-602

Wolf ATEX Zone 0 Flood Banks Part Reference Wolf XT-602
Floodlights Description ATEX Zone 0 Flood Bank
Handlamp Configuration x 2
Stand Material Stainless Steel
Handlamp Holder Material Impact Resistant Thermoplastic, Electrostatic Non-Hazardous
‘Snap-in/Snatch-out’ Function
Dimensions 340 mm L x 197 mm W x 451 mm H
Weight – Stand/Holders Only 2.6 Kg
Weight – With Handlamps 5 Kg
Total Light Output 700lms
Handlamps & Chargers Includes Stand with Handlamp Holders only attached, Wolflite XT Rechargeable Zone 0 Handlamps (XT-75) and a separate Quick Charger with Mains Adaptor 100-254V AC (XT-200H – for use in safe area only) for each handlamp.

Wolf – tHE hAZARDOUS AREA lIGHTING sPECIALISTS

Contact T&D to discuss all your portable and temporary hazardous area lighting requirements – as Main Distributors for Wolf Safety Lamp we can provide expert technical support and competitive prices with delivery from stock.
