Zone 1 Zone 2 (21/22) Hazardous Area Lighting ATEX – Appleton ATX FELED
Zone 1 Zone 2 (21/22) Hazardous Area Luminaire Lighting ATEX – Appleton ATX FELED
Please Note:
Appleton™ ATX™ Linmaster™ LED Zone 1 Series replaces the FELED Series
Appleton ATX Linmaster™ LED Zone 2 Series replaces the FNLED Series
Appleton ATX FELED is part of the Zone 1 Zone 2 (21/22) hazardous area LED luminaire ATEX lighting range that are specifically designed for simple installation and maintenance.
ATX FELED Series LED Luminaires are easy to install, easy to maintain non-metallic linear fixtures. It is available in either a standard or an emergency battery back-up version. The FELED is ideal for use in Zone 1 and Zone 21 locations and provides 2,500 to 7,200 lumens to fit a wide variety of applications.
They can easily retrofit existing fluorescent fixtures as they maintain the same look and feel. The FELED utilizes the same footprint and mounting accessories; saving time, labour and money.
Appleton ATX FELED Series LED Luminaires
Features & Benefits
- Typical applications include oil refineries, petrochemical facilities, pulp and paper mills, food processing plants, warehouses, underground tunnels and general manufacturing facilities
- Can be horizontally or vertically mounted. Positive safety switch disconnects power to LED’s and driver to allow maintenance in hazardous locations
- High impact resistance housing (20 Joules – IK10) from -30 °C to +55 °C (-22 °F to +131 °F) ambient temperature and wind profile for use in extreme offshore and onshore environments
- Contemporary, low profile, lightweight design is suitable for tight spaces. It features a hinged cover with captive screws, and standard screw-type terminal block (accepts 1 to 6 mm² wire) for easy installation and maintenance. M20 plug or M25 plug
- Full range of lumen outputs, with light distribution equivalent to Appleton’s FE Series fluorescent luminaires
- Easy to retrofit in same mounting footprint as Appleton’s FE Series nonmetallic fluorescent luminaires
- Corrosion-resistant fiberglass reinforced polyester body and hinged polycarbonate lens. Latch assembly and elastomer gasket seals against water and dust ingress, IP66
- Easily accessed for maintenance using Allen key or straight blade screw driver via the central opening which features a unique patented release system to prevent damage
- Universal, high efficiency, drivers cover voltage requirements for 120-277 Vac, 170-300 Vdc; 50/60 Hz +/- 10%. High power factor electronic driver (>0.95). Standard 6KV surge suppression
- Industry-leading thermal management for safe, reliable operation over wide temperature range
- Available in 3 hour emergency version, including built-in monthly self- test. Test results through multi-colored LED. Ex e battery with plug-in connector
- Field replaceable LED array, LED driver, lens and diffuser
Appleton ATX FELED Series LED Luminaires
Appleton ATX FELED Specification
| ATEX/IECEx Certifications and Compliances | Zone 1 and 2 – 21 and 22; Ex II 2 GD; IP66; IK10 |
| Lumen Breakdown | 5000K CCT: 3K is 3058, 4K is 4196, 5K is 5290, 7K is 7181. 4000K CCT: 3K is 2512, 4K is 3428, 5K is 4380, 7K is 5879 |
| Ambient Temperature | Standard versions: -30 °C up to +55 °C. Emergency versions: -20 °C up to +50 °C |
| Standard Materials and Finishes | Fiberglass reinforced polyester (FRP) housing with polycarbonate lens, highly reflective white powder coated aluminum internal reflector and elastomer gasket |
| Battery Back-Up Option | 3 hour emergency version with 6 V – 7 Ah for 5K versions only |
| Voltage | 100-240 Vac, 50/60 Hz |
| Retrofit Equivalents | 1×18 W to 3×58 W Fluorescent |
| Lumens | 2,500 – 7,050 |
| Efficacy | Up to 122 lm/w |
| Color Temperatures | 5000K , 4000K |
| CRI | 70+, 80+ |
| LED Lumen Depreciation (L70): | 60,000+ hours |
| Replaceable Components | LED Driver, Diffuser, Lens |
| Standard Versions | Emergency Version | |||||||||
| FELED3 | FELED4 | FELED5 | FELED7 | FELED5 | ||||||
| Voltage Range | BD: 100 to 240 Vac, 50/60 Hz | |||||||||
| Power Consumption (Watts) | 27 | 32 | 38 | 63 | 44 | |||||
| Correlated Color Temperature (CCT) | 5000K | 4000K | 5000K | 4000K | 5000K | 4000K | 5000K | 4000K | 5000K | 4000K |
| Color Rendering Index (CRI) | >70 | >80 | >70 | >80 | >70 | >80 | >70 | >80 | >70 | >80 |
| Lumen Output | 2850 | 2500 | 3600 | 3200 | 4650 | 4150 | 7050 | 6550 | 980 | 810 |
| Efficacy (lm / w) (clear lens) | 105 | 95 | 114 | 101 | 122 | 110 | 111 | 103 | — | — |
| T-Rating(in horizontal position) | T5 @ 55 °C | T6 @ 55 °C | T6 @ 55 °C | T6 @ 55 °C | T6 @ 50 °C | |||||
| Ambient Temperature | –30 °C to +55 °C (–22 °F to +131 °F) | –30 °C to +55 °C (–22 °F to +131 °F) | –30 °C to +55 °C (–22 °F to +131 °F) | –30 °C to +55 °C (–22 °F to +131 °F) | –20 °C to +50 °C (–4 °F to +122 °F) | |||||
| Luminaire Length | 0.8 m (2.6 ft) | 0.8 m (2.6 ft) | 1.4 m (4.6 ft) | 1.4 m (4.6 ft) | 1.4 m (4.6 ft) | |||||
| Luminaire Weight | 6 kg (13.2 lbs) | 6 kg (13.2 lbs) | 9 kg (19.8 lbs) | 11 kg (24.3 lbs) | 11.5 kg (25.4 lbs) | |||||
| Standard Materials | Housing: Fiberglass Reinforced PolyesterLens: PolycarbonateGasket: ElastomerInternal Reflector: Highly Reflective White Powder Coated Aluminum | |||||||||
| Options | Emergency (5K Lumen Versions) | |||||||||
| Field-Replaceable Components | Diffuser / Lens / LED Driver / Inverter | |||||||||
| Luminaire Lifetime (LM-79) | 60,000+ Hours | |||||||||
| Warranty | 5 Years | |||||||||
ATEX/IECEx Certifications For Hazardous Area
- Certification Type: FELED
— Gas: Zones 1 and 2
– Conforming to ATEX 2014/34/EU: II 2 G
– Type of Protection: Ex db eb mb IIC Gb
– Temperature Class: T6 to T5
— Dust: Zones 21 and 22
– Conforming to ATEX 2014/34/EU: II 2 D
– Type of Protection: Ex tb IIIC Db
– Surface Temperature: +63°C to +85°C (+145°F to +185°F)
- Ambient Temperature: -30°C up to +55°C (-22°F up to 122°F/ +131°F) (standard) and -20°C up to +50°C (-4°F up to 122°F) (emergency)
ATEX LED Luminaires
- EU Declaration of Conformity: 50317
- ATEX Certificate: LCIE 16 ATEX 3048X
- IECEx Certificate: IECEx LCIE 16.0038X
- Index of Protection according EN/IEC 60529: IP66
- Impact Resistance (shock): IK10
- Photobiological Safety, IEC 62778 and IEC 62471: RG0
- American Bureau of Shipping (ABS) Certified
Lighting Performance
| Luminaire | Size (Meters) | Size (Feet) | Power Consumption (Watts) | Light Output (Lumens) | Eav (Lux) Floor | Emin (Lux) Floor | Emax (Lux) Floor | Emin / Emax |
| FEB236BUSA | 1.39 | 4.56 | 72 | 4423 | 31 | 16 | 55 | 0.53 |
| FELED4CBDSAD | 0.79 | 2.58 | 32 | 3600 | 28 | 11 | 73 | 0.40 |
| FELED5CBDSAD | 1.39 | 4.56 | 38 | 4650 | 30 | 12 | 77 | 0.41 |
*T&D carry stock of FELED5CBDSADE.
 |
 |
 |

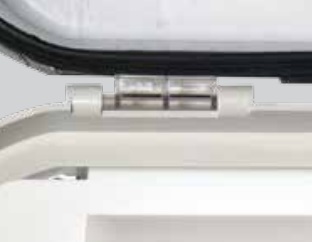

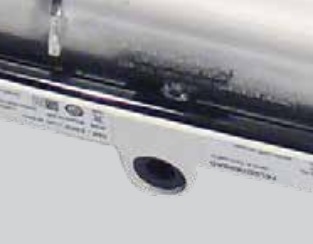

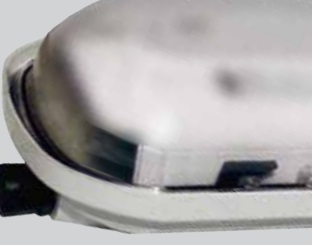

| Central hex key opening with unique patented release system to prevent damage | Latch assembly and elastomer gasket seals against water and dust ingress (IP66) | Hinged polycarbonate lens for easy maintenance |
