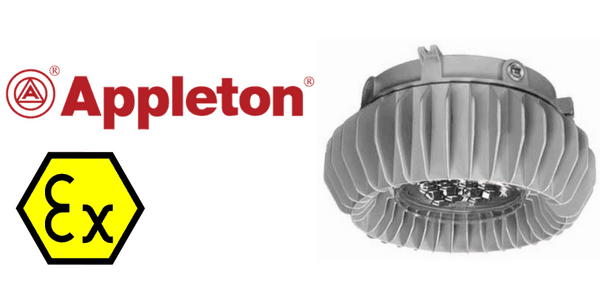

Zone 2 Zone 22 Hazardous Area LED Luminaire Lighting ATEX – Appleton MLEDNA Mercmaster

Zone 2 Zone 22 Hazardous Area LED Luminaire Lighting ATEX – Appleton MLEDNA Mercmaster

Zone 2 Zone 22 Hazardous Area LED Luminaire Lighting ATEX – Appleton MLEDNA Mercmaster

Appleton MLEDNA Mercmaster is part of the Zone 2 Zone 22 hazardous area LED luminaire ATEX lighting range that are specifically designed to provide next generation energy efficiency. The Appleton MLEDNA Mercmaster offers safety for locations subject to severe weather conditions, vibration and shock, corrosive chemicals and hazardous environments.

MLEDNA Mercmaster has twice the utilisation effectiveness of an HID lamp and has the series has the standard for proven quality, reliability and durability – providing hazardous area lighting with savings on installation, maintenance and energy costs due to the compact and efficient design.

The ATEX certified LED luminaires typical applications include oil refineries, petrochemical facilities, pulp and paper mills, processing plants, oil refineries, warehouses, underground tunnels, parking garages and waste & sewage treatment.

Zone 2 Zone 22 Hazardous Area LED Luminaire Lighting ATEX – Appleton MLEDNA Mercmaster

Features & Benefits

  • Compact light weight low profile lighting design is suited for low mounting heights
  • Modular design allows scores of fixture component combinations to meet installation needs. Uses same mounting hoods as Mercmaster III
  • Fixture housing and mounting hoods are copperfree cast aluminum with baked epoxy finish. All exposed hardware is stainless steel
  • Luminaire accommodates a wide range of voltages
  • Ambient temperatures:
    • 70 W to 100 W equivalent: -40 °C to +65 °C (-40 °F to +149 °F)
    • 150 W to 175 W equivalent: -40 °C to +55 °C (-40 °F to +131 °F)
    • 250 W to 350 W equivalent: -40 °C to +50 °C (-40 °F to +122 °F)
    • 400 W equivalent: -40 °C to +55 °C (-40 °F to +131 °F)
  • Electrical: 120-277 Vac, 50/60 Hz; 347-480 Vac, 50/60 Hz, Volts +/- 10%
  • Pole terminal block: 1 x 8-24 AWG; 1 x 0.75 to 6 mm2 (0.0012 to 0.0093 in2)
  • Hinge has high lip for added safety during installation and servicing
  • Hinge and bolt construction assures 360º compression at all points on ballast housing gasket for positive sealing. Swing away design of captive bolt and nut simplifies servicing
  • All Mercmaster mounting hoods have provision for easy field installation of fuses in fixtures
  • NPT and metric threads standard
  • NEMA Type V light distribution is standard
    • Type V distribution is required is areas where sufficient, evenly distributed light is necessary. It produces a circular distribution that has the same intensity at all angles
  • NEMA Type I light distribution is available as an option for select NEC/CEC certified fixtures
    • Type I distribution is the perfect lighting for walkways, Type I distribution is perfect for lighting walkways, catwalks or anyplace where a narrow beam of light is required
  • For ATEX/IECEx rated fixtures, ballast bodies and mounting hoods must be purchased separately
Appleton MLEDNA Mercmaster

Appleton MLEDNA Mercmaster for use in hazardous locations defined by ATEX/IECEx

Zone 2 Zone 22 Hazardous Area LED Luminaire Lighting ATEX

Appleton MLEDNA Mercmaster

Technical Data

Lamp Ambient Temperature°C (°F) Supply Wire Temperature°C (°F) NEC/CEC Hazardous Area Classification Gas/Dust Simultaneous *Class I, Division 2/Class II, Division 1 ATEX/IECEx and NBR IEC
Gas Dust Gas  Dust
Light Level
Equivalent
to HID
Type Class I,
Division 2*
Groups Class I, Zone AEx nA IIC,
Ex nA IIC
Class II,
Division 1
and 2 **
Groups Ex II 3G*
nA
Ex II 3D**
Ex tc IIIC
70 Watt NEMA Type V LED 40 (104) 60 (140) T4A A, B, C, D T4 T6 E, F, G T4 T4 T92°C (T197.6°F) DC
55 (131) 75 (167) T4 T4 T6 T4 T4
65 (143) 90 (194) T3C T3 T6 T3C T4
100 Watt NEMA Type V LED 40 (104) 60 (140) T4A A, B, C, D T4 T6 E, F, G T4 T4 T92°C (T197.6°F) DC
55 (131) 75 (167) T4 T4 T6 T4 T4
65 (143) 90 (194) T3C T3 T6 T3C T4
100 Watt NEMA Type I*** LED 40 (104) 60 (140) T4 A, B, C, D T4 E, F, G
75 (167) 75 (167) T3C T3
90 (194) 90 (194) T3C T3
150 Watt NEMA Type V LED 40 (104) 60 (140) T4A A, B, C, D T4 T6 E, F, G T4 T6 T92°CT197.6°F) DCIP66
55 (131) 75 (167) T4 T4 T6 T4 T6
175 Watt NEMA Type V LED 40 (104) 60 (140) T4A A, B, C, D T4 T6 E, F, G T4 T6 T92°CT197.6°F) DCIP66
55 (131) 75 (167) T4 T4 T6 T4 T6
175 Watt NEMA Type I*** LED 40 (104) 60 (140) T4 A, B, C, D T4 T6 E, F, G T4
55 (131) 75 (167) T3C T3 T6 T3C
250 Watt NEMA Type V*** LED 40 (104) 60 (140) T4A A, B, C, D T4 T6 E, F, G T4C
55 (131) 75 (167) T4 T4 T6 T4

*T numbers represent the maximum internal temperature for Class I, Division 2 and Class I, Zone 2 locations designated by the NEC.
**T numbers represent the maximum surface temperature under a dust blanket for Class II, Division 1 and Class I, Zone 2 as designated by the NEC or Zone 2
(Gas) and 22 (Dust) locations as designated by the IEC.
***Lamp type is not certified for use in ATEC/IEC or NBR IEC governed locations.

ATEX/IECEx Certifications for hazardous areas

ATEX LED Luminaires

ATEX LED Luminaires

  • ATEX/IECEx:
    – Zone 2 and 22
    –  ex II 2 GD
    – IP66/67
NEC/CEC:

– Class I, Division 2, Groups A, B, C, D
– Class I, Zone 2, AEx nA IIC
– Class II, Division 1, Group E, F, G
– Class II, Division 2, Group F, G
– Class III
– Type 3R, 4, 4X
– IP66/67
– Simultaneous Exposure
– Suitable for Use in Wet Locations
– Marine Outside Type (Salt Water)

IECEx

— Gas: Zone 2
– IEC Protection: Ex nA IIC Gc
– T Rating:
• 70 W and 100 W equivalent: T4 [+40 ºC (+104 ºF)],
T4 [+ 55 .C (+131 .F)], T3 [+65 .C (+149 .F)]
• 150 W to 175 W equivalent: T4 [+40 ºC (+104 ºF)], [+ 55 .C (+131 .F)]
• 250 W equivalent: T4 [+40 ºC (+104 ºF)], T4 [+50 (+122 .F)
— Dust: Zone 22
– IEC Protection: Ex tc IIIc Dc
– Surface Temperature: T92 ºC (T197.6 ºF)
– Ambient Temperature:
• 70 W and 100 W equivalent: -40 .C to +65 .C (-40 +149 .F)
• 150 W to 175 W equivalent: -40 .C to +55 .C (-40 +131 .F)
• 250 W equivalent: -40 .C to +50 .C (-40 .F to 122 – IECEx Certifi cate: IECEx LCI II.0058
– Index of Protection: IP66
Ex Standards: IEC 60079-0; 60079-15; 60079-31

 NBR IEC Brazilian Certifications and Compliances

• Certification Type: MLEDNA
— Gas: Zone 2
– IEC Marking: Ex nA IIC Gc
– T Rating: T5/T6
— Dust: Zone 22
– IEC Marking: Ex tc IIIC Dc
– Surface Temperature: T92°C (T197.6°F)
• Ambient Temperature: -40 °C to +55 °C (-4 • Ingress Protection (solid and liquid): IP66
• INMETRO Certifi cate: BVC 12.1522
• Ex Standards: ABNT NBR IEC 60079-0, ABNT 15, ABNT NBR IEC 60079-31
• Other Standards: ABNT NBR IEC 60529
