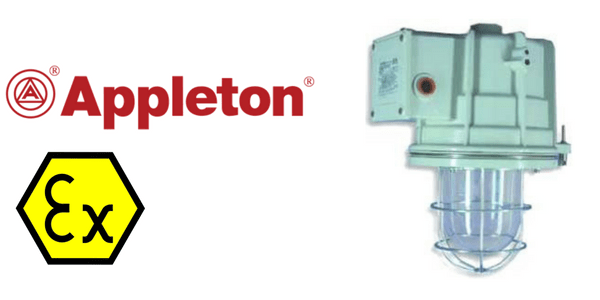

Appleton LDM is part of the Zone 1 and Zone 2 (21/22) hazardous area wellglass ATEX lighting range and have a flameproof design that is ideal for use in hazardous locations, such as hazardous area lighting on refinery sites and oil depots, tank lighting, and general lighting in plants where plastics, paints, thinners and petrochemicals are manufacture.

Zone 1 and Zone 2 (21/22) Hazardous Area Wellglass Lighting ATEX

Features & Benefits

  • E27 lamp holder
  • High temperature internal wiring
  • Threaded flame path
  • Stainless steel fastenings
  • Closed by screwing on bezel
  • Operates in any position
  • Easy and efficient wiring due to separate Ex e terminal box with wiring onto two captive terminals capacity 2 x 6 mm2 (2 x 0.009 in2)
  • External earth terminal capacity 4 mm2 (0.006 in2)
  • 2 x 20 mm (2 x 0.79 in) clearance holes through-wire cable entries supplied with one Ex e unarmoured cable gland — sealing diameter 6.5 to 14.5 mm (0.26 to 58 in) — and one blanking plug and two M20 locknuts
Zone 1 Zone 2 (21/22) Wellglass – ATEX & Flameproof Luminaires – Appleton LDM

Appleton LDM for use in hazardous locations defined by ATEX/IECEx

Zone 1 and Zone 2 (21/22) Hazardous Area WELLGLASS Lighting ATEX

Appleton LDM

Technical Data

Flameproof Wellglass Luminaires for Hazardous Areas – Ex de IIC – LDM Series
Lamp WattagesVoltage (+/- 10%)Lamp TypeWeight (kg)Volume dm³Appleton Catalog NumberOld Catalog Number
EllipsoidalTubular
High Pressure Sodium
70W (ballast supplied) for lamp with built in ignitor230/240 Vac 50 HzXX930LDML70AG1XJ095013
150W (ballast supplied)230/240 Vac 50 HzXX930LDML15AG1XJN/A
Mercury Vapor
80W (ballast supplied)230/240 Vac 50 HzN/AN/A930LDMM80AG1XJ095001
125W (ballast supplied)230/240 Vac 50 HzN/AN/A930LDMM12AG1XJ095005
Compact Fluorescent
18WN/AN/AN/A7.530LDMF18AG1095000
Incandescent
200W Max (150W halogen or 160W mixed lamps can be used)N/AN/AN/A7.530LDMI20AG1095003
Note: Wellglass luminaires supplied with 1 x M20 Ex e cable gland (dia. 6.5 to 14.5 mm) and 1 x M20 blanking plug.
Lamps are not supplied.



ATEX/IECEx Certifications for hazardous areas

ATEX Wellglass

ATEX Wellglass

  • ATEX / IECEx:
    – Zone 1 & 2 – 21 & 22
    EX Logo II 2 GD
    – IP66/67 – IK08

GOST also available

Zone 1 Zone 2 /21-22) Wellglass – ATEX & Flameproof Luminaires – Appleton LDM

Appleton LDM – Hazardous Area Wellglass – Dimensions
