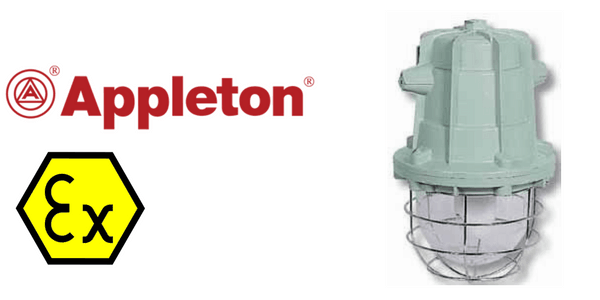

Appleton LDB, LDG and LDR series is part of the Zone 1 and Zone 2 (21/22) hazardous area wellglass ATEX lighting range and have a flameproof design that is ideal for use in hazardous locations, such as lighting on refinery sites and oil depots, tank lighting, and general lighting in plants where plastics, paints, thinners and petrochemicals are manufacture.

The ATEX certified wellglass luminaires are designed for a variety of E40 base lamps.

Zone 1 and Zone 2 (21/22) Hazardous Area Wellglass Lighting ATEX

Features & Benefits

  • Compensated power supply
  • Power factor ≥ 0.9
  • Flat joint for IIB version, threaded joint for IIC version
  • E40 lamp holder with lock thread
  • High temperature internal wiring
  • Luminaire operates in any position subject to lamp type
  • Easy and efficient wiring of the hazardous area lighting due to separate Ex e terminal box with wiring onto two captive terminals capacity 6 mm2 (2 x 0.009 in2) and two internal earth terminals capacity 6 mm2 (0.009 in2)
  • External earth terminal capacity 4 mm2 (0.006 in2)
  • 2 x 20 mm clearance holes through-wire cable entries supplied with one Ex e unarmored cable gland — sealing diameter 6.5 to 14.5 mm (0.26 to 58 in) — and one blanking plug and two M20 locknuts
Zone 1 Zone 2 (21/22) Wellglass – ATEX & Flameproof Luminaires – Appleton LDB LDG LDR

Appleton LDB LDG LDR for use in hazardous locations defined by ATEX/IECEx

Zone 1 and Zone 2 (21/22) Hazardous Area WELLGLASS Lighting ATEX

Appleton LDB LDG LDR

Technical Data

Flameproof Wellglass Luminaires for Hazardous Areas – Ex de IIB – LDB Series
Lamp WattagesVoltage (+/- 10%)Lamp TypeWeight (kg)Volume dm³Appleton Catalog NumberOld Catalog Number
EllipsoidalTubular
Electro Magnetic Induction
85W (ballast supplied)
Service life 60,000 hours
230/240 Vac 50/60 HzN/AN/A2286.7LDBQ85AG2BJ095024
High Pressure Sodium
100W (ballast supplied)230/240 Vac 50 HzXX2286.7LDBL10AG2XJ095025
150W (ballast supplied)230/240 Vac 50 HzXX22.586.7LDBL15AG2XJ095023
250W (ballast supplied)230/240 Vac 50 HzXX22.586.7LDBL25AG2XJ095021
Metal Halide
250W (ballast supplied)230/240 Vac 50 HZXX22.586.7LDBH25AG2XJ095026
Mercury Vapor
250W (ballast supplied)230/240 Vac 50 HzN/AN/A22.586.7LDBM25AG2XJ095019
Incandescent
300W to 500W (250W mixed lamps can be used)N/AN/AN/A1986.7LDBI30AG2095017
Flameproof Wellglass Luminaires for Hazardous Areas – Ex de IIC – LDG series
Lamp WattagesVoltage (+/- 10%)Lamp TypeWeight (kg)Volume dm³Appleton Catalog NumberOld Catalog Number
EllipsoidalTubular
Electro Magnetic Induction
85W (ballast supplied)
Service life 60,000 hours
230/240 Vac 50/60 HzN/AN/A2286.7LDGQ85AG2BJ094720
High Pressure Sodium
100W (ballast supplied)230/240 Vac 50 HzXX2286.7LDGL10AG2XJ094721
150W (ballast supplied)230/240 Vac 50 HzXX22.586.7LDGL15AG2XJ094722
250W (ballast supplied)230/240 Vac 50 HzXX22.586.7LDGL25AG2XJ094723
Metal Halide
250W (ballast supplied)230/240 Vac 50 HZXX22.586.7LDGH25AG2XJ094724
Mercury Vapor
250W (ballast supplied)230/240 Vac 50 HzN/AN/A22.586.7LDGM25AG2XJ094725
Incandescent
300W to 500W (250W mixed lamps can be used)N/AN/AN/A1986.7LDGI30AG2094726
Flameproof Wellglass Luminaires for Hazardous Areas – Ex de IIC – LDR Series
Lamp WattagesVoltage (+/- 10%)Lamp TypeWeight (kg)Volume dm³Appleton Catalog NumberOld Catalog Number
EllipsoidalTubular
High Pressure Sodium
400W (ballast supplied)230/240 Vac 50 HzXX31144LDRL40AG2XJN/A
Metal Halide
400W (ballast supplied)230/240 Vac 50 HZXX31144LDRH40AG2XJN/A
Note: Wellglass luminaires supplied with 1 x M20 Ex e cable gland (dia. 6.5 to 14.5 mm) and 1 x M20 blanking plug.
Lamps are not supplied except for induction version.



ATEX/IECEx Certifications for hazardous areas

ATEX Wellglass

ATEX Wellglass

  • ATEX / IEC:
    – Zone 1 & 2 – 21 & 22
    –   II 2 GD
    – IP66/67 – IK08

GOST also available
